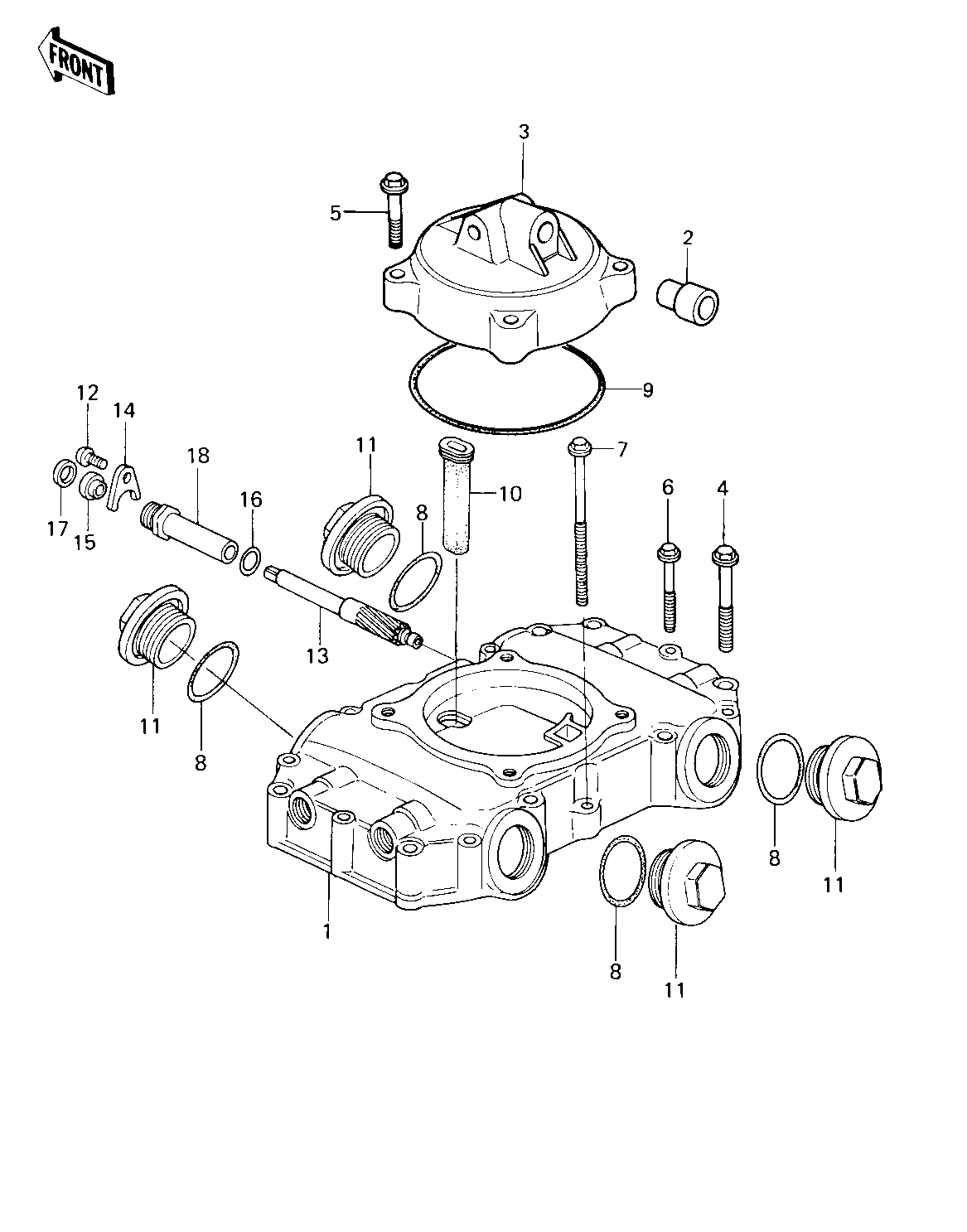

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE ROCKER 1 11022-1001 1
BREATHER JOINT 2 14067-006 1
BODY,BREATHER 3 14070-1004 1
BOLT,HEX HEAD 8X63 4 92002-1215 8
BOLT,HEX HEAD 8X63 5 92002-1215 4
BOLT,HEX HEAD,6X54 6 92003-110 6
BOLT,6X105 7 92003-194 2
"O" RING,VLV ADJUST 8 92055-1005 4
"0" RING,BREATHER 9 92055-1020 1
TUBE,BREATHER 10 92059-1002 1
PLUG,VLV ADJUST 11 92066-1006 4
SCREW PAN HEAD 6X10 12 220B0610 1
GEAR,METER SCREW 13 41060-1013 1
CLAMP,METER GEAR 14 92037-1030 1
OIL SEAL 15 92050-075 1
"O" RING,METER GEAR 16 92055-1021 1
GASKET,TACHOMETER GER 17 92065-103 1
BUSHING,METER GEAR 18 92087-1001 1
