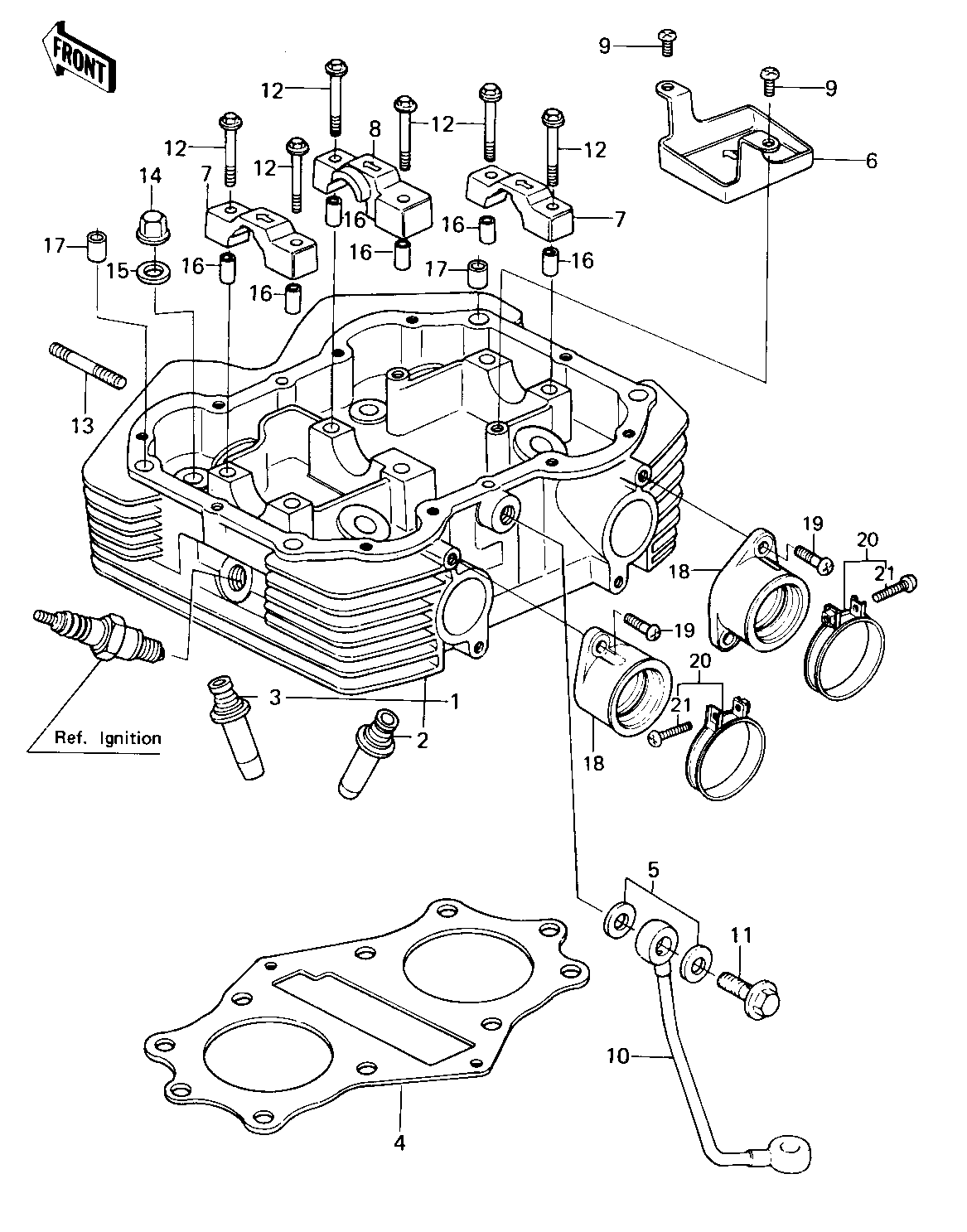

1980 KZ440-B1 - CYLINDER HEAD ('80 B1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HEAD-COMP-CYLINDER,SI | 1 | 11008-1034 | 1 | ||
GUIDE,INLET VALVE | 2 | 12013-003 | 2 | ||
GUIDE,EXHAUST VALVE | 3 | 49002-1010 | 2 | ||
GASKET,CYLINDER HEAD | 4 | 11004-1020 | 1 | ||
GASKET,10X14.5X1.5 | 5 | 11009-1105 | 2 | ||
CAP,CYLINDER HEAD OIL | 6 | 11012-1027 | 1 | ||
CAP,BRG,HEAD,L.H&R.H | 7 | 14022-1002 | 2 | ||
CAP,BRG.HEAD,CENTER | 8 | 14022-1003 | 1 | ||
SCREW PAN HEAD 6X10 | 9 | 220B0610 | 2 | ||
PIPE,OIL | 10 | 32032-1084 | 1 | ||
BOLT,BANJO,10X25 | 11 | 92001-1017 | 1 | ||
BOLT,FLANGED,6X38 | 12 | 92001-1105 | 6 | ||
STUD,6X46 | 13 | 92004-049 | 4 | ||
NUT,CYLINDER HEAD | 14 | 92015-076 | 8 | ||
WASHER,10.5X22X1.6 | 15 | 92022-1005 | 8 | ||
PIN-DOWEL | 16 | 92042-007 | 6 | ||
PIN,DOWEL,10X8.2X14 | 17 | 92043-1037 | 2 | ||
HOLDER,CARBURETOR | 18 | 16065-1027 | 2 | ||
SCREW PAN HEAD 6X18 | 19 | 220B0618 | 4 | ||
CLAMP,53M/M | 20 | 92037-201 | 2 | ||
SCREW-PAN-CROS,5X25 | 21 | 220B0525 | 2 |
