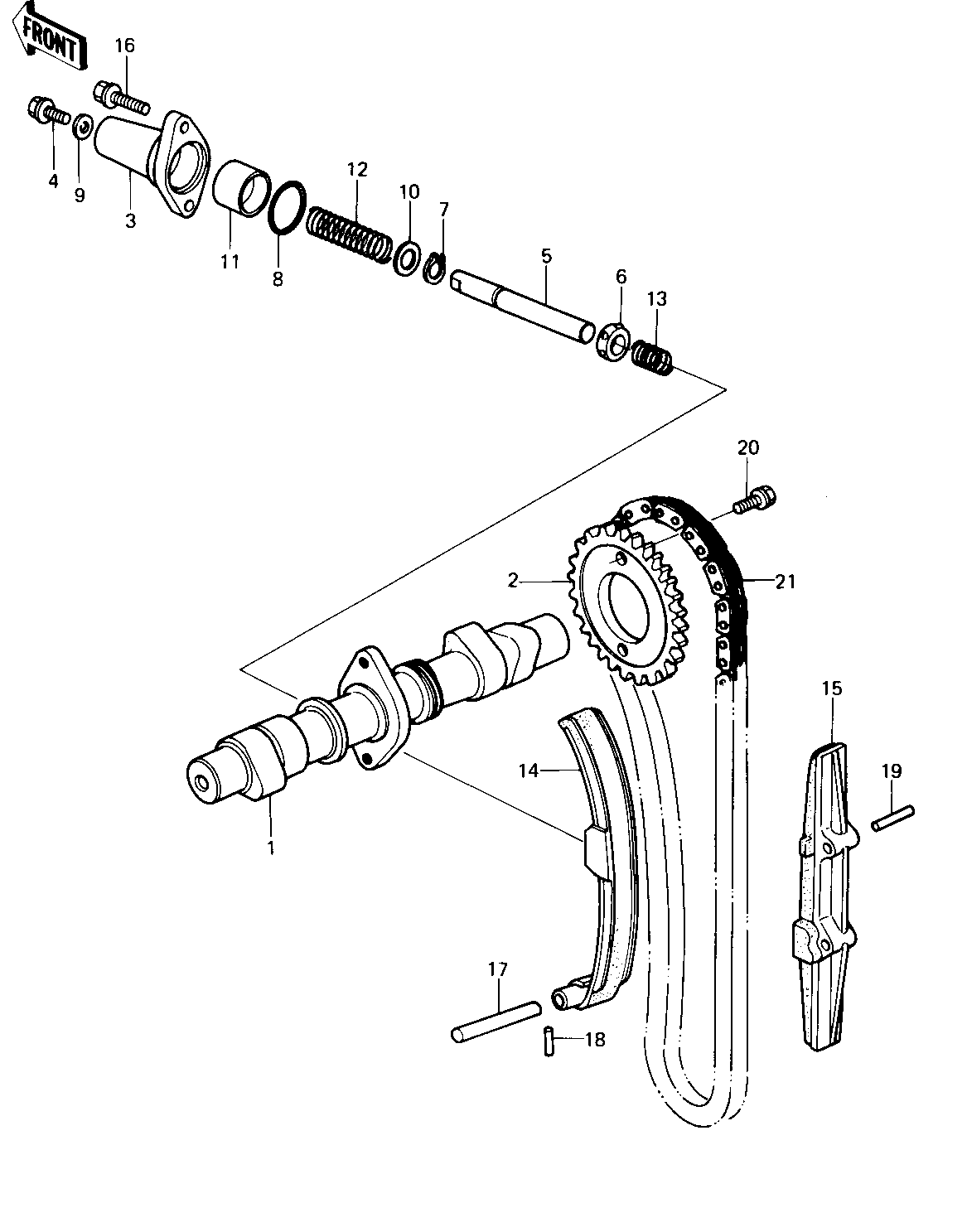

1980 KZ440-B1 - CAMSHAFT/CHAIN/TENSIONER ('80 B1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAMSHAFT,VALVE | 1 | 12044-5001 | 1 | ||
SPROCKET,CAM,46T | 2 | 12046-1022 | 1 | ||
BRACKET,TENSIONER | 3 | 12049-1010 | 1 | ||
BOLT,FLANGED,6X14 | 4 | 130N0614 | 1 | ||
ROD,PUSH,TENSIONER | 5 | 13116-1022 | 1 | ||
RETAINER | 6 | 14020-1002 | 1 | ||
CIRCLIP,10M/M | 7 | 480J1000 | 1 | ||
"0" RING,21MM | 8 | 670D2021 | 1 | ||
WASHER OIL PUMP BANJO | 9 | 92022-077 | 1 | ||
WASHER,10X14.5X1.0 | 10 | 92022-1181 | 1 | ||
COLLAR,TENSIONER | 11 | 92027-1240 | 1 | ||
SPRING,TENSIONER | 12 | 92081-1206 | 1 | ||
SPRING,TENSIONER | 13 | 92081-1207 | 1 | ||
GUIDE,CHAIN,FRONT | 14 | 12053-1041 | 1 | ||
GUIDE,CHAIN,REAR | 15 | 12053-1042 | 1 | ||
BOLT,FLANGED,6X20 | 16 | 130G0620 | 2 | ||
SHAFT,CHAIN GUIDE | 17 | 39115-1001 | 1 | ||
PIN,DOWEL,3X25 | 18 | 551A0325 | 1 | ||
PIN,DOWEL,5X32 | 19 | 551A0532 | 2 | ||
BOLT,SPROCKET FITTING | 20 | 92003-208 | 2 | ||
CHAIN,CAMSHAFT,114L | 21 | 92057-1038 | 1 |
