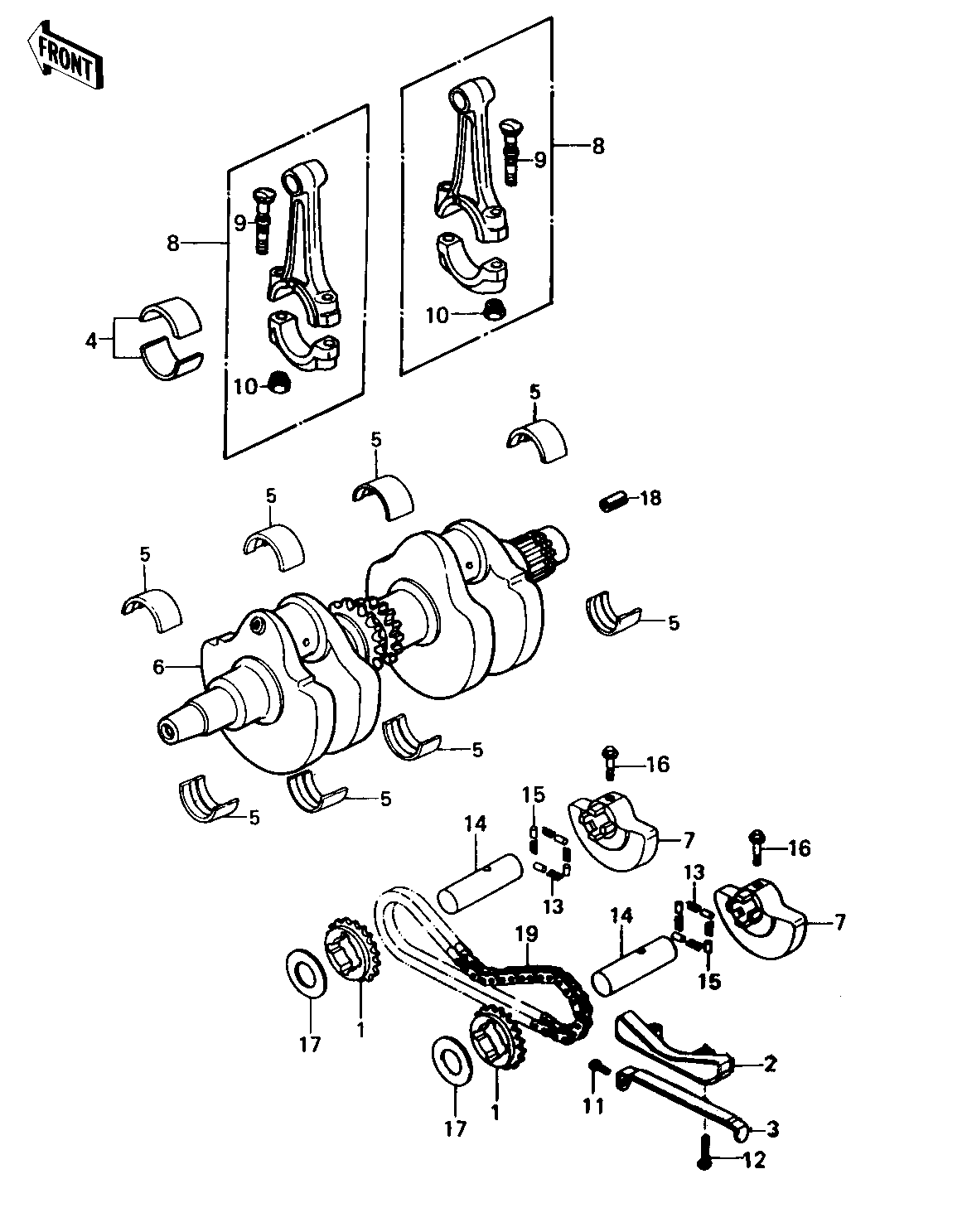

1980 KZ440-B1 - CRANKSHAFT/BALANCER ('80 B1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPROCKET,BALANCER,21T | 1 | 12046-1003 | 2 | ||
| GUIDE-CHAIN,BALANCER | 2 | 12053-1051 | 1 | ||
| GUIDE,BALANCER,CHAIN | 3 | 12053-1003 | 1 | ||
| BUSHING,CONNECTNG ROD | 4 | 92028-1097 | 4 | BLUE | |
| BUSHING,CONNECTNG ROD | 4 | 92028-1098 | 4 | BLACK | |
| BUSHING,CONNECTNG ROD | 4 | 92028-1099 | 4 | BROWN | |
| BUSHING,CRANKSHAFT | 5 | 92028-1100 | 8 | BLUE | |
| BUSHING,CRANKSHAFT | 5 | 92028-1101 | 8 | BLACK | |
| BUSHING,CRANKSHAFT | 5 | 92028-1102 | 8 | BROWN | |
| CRANKSHAFT ASSY | 6 | 13031-1037 | 1 | ||
| BALANCER | 7 | 13041-1002 | 2 | ||
| CONNECTING ROD ASSY,J | 8 | 13251-1008-JJ | 2 | "G" MARK | |
| CONNECTING ROD ASSY,J | 8 | 13251-1008-JJ | 2 | "H" MARK | |
| CONNECTING ROD ASSY,J | 8 | 13251-1008-JJ | 2 | "I" MARK | |
| CONNECTING ROD ASSY,J | 8 | 13251-1008-JJ | 2 | "J" MARK | |
| BOLT,CONNECTING ROD,8 | 9 | 92001-1887 | 4 | ||
| NUT,FLANGED,8MM | 10 | 92015-1311 | 4 | ||
| SCREW PAN HEAD 6X8 | 11 | 220B0608 | 1 | ||
| SCREW PAN HEAD 6X30 | 12 | 220B0630 | 2 | ||
| SPRING,BALANCER | 13 | 92081-135 | 8 | ||
| SHAFT,IDLER,BALANCER | 14 | 39115-1002 | 2 | ||
| PIN DOWEL 4X8 | 15 | 610A0408 | 8 | ||
| BOLT,6X32 | 16 | 92003-229 | 2 | ||
| SPACER,20,3X40X1 | 17 | 92026-1003 | 2 | ||
| PIN-SPRING,4X8 | 18 | 555A0408 | 1 | ||
| CHAIN,BALANCER | 19 | 92057-1007 | 1 |
