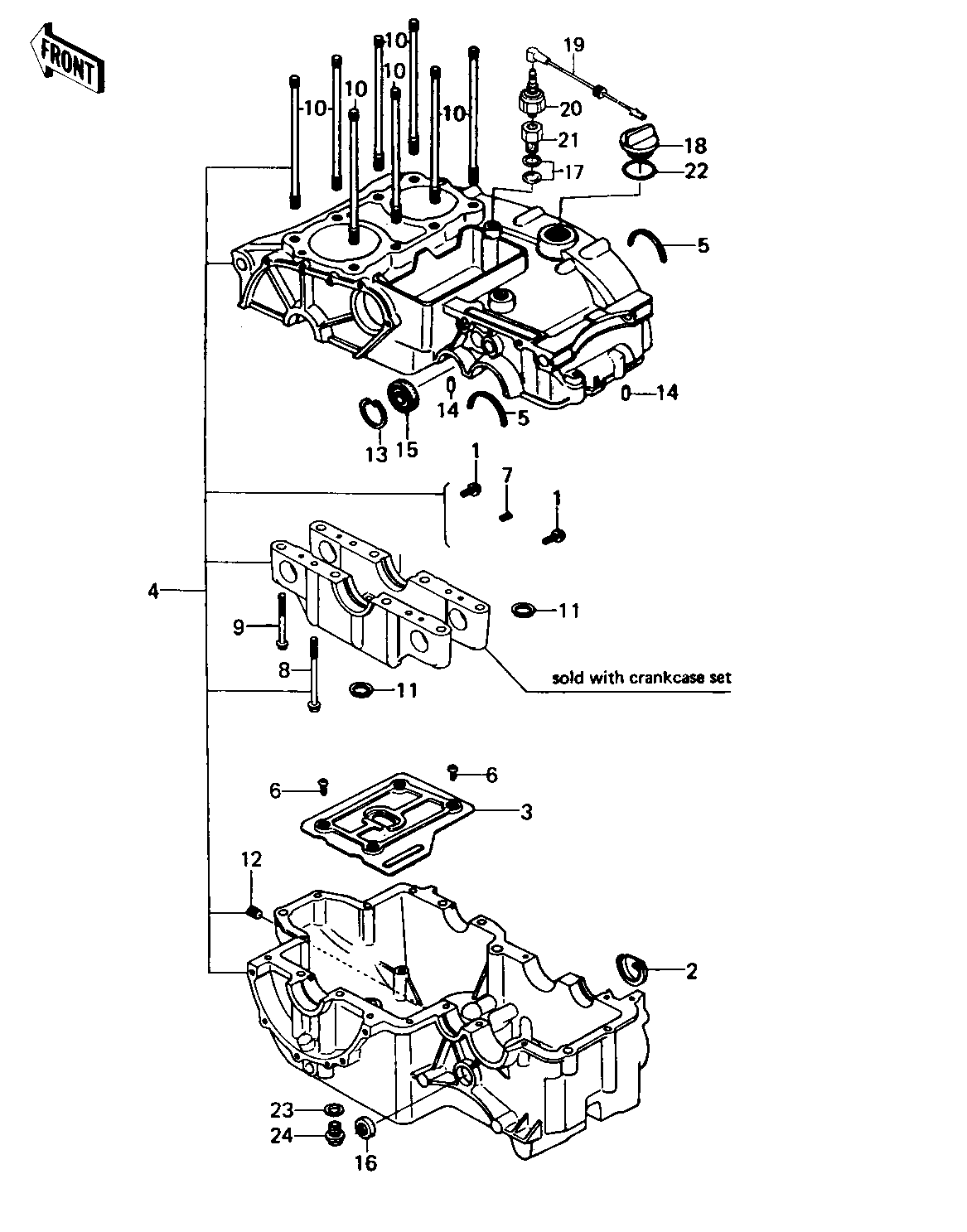

1980 KZ440-B1 - CRANKCASE ('80 B1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,FLANGED,6X8 1 130P0608 1 ASTERISK (*) MARKED PARTS ARE
BOLT,FLANGED,6X8 1 130P0608 1 ASTERISK (*) MARKED PARTS ARE
RECEIVER,OIL 2 13045-1001 1
PLATE,CRANKCASE 3 13169-1103 1
SET-CRANKCASE 4 14001-5087 1
RING BEARING SETTING 5 14013-004 2
SCREW PAN HEAD 6X12 6 220B0612 4
SCREW,6X6 7 290Q0606 4 ASTERISK (*) MARKED PARTS ARE
SCREW,6X6 7 290Q0606 4 ASTERISK (*) MARKED PARTS ARE
BOLT,FLANGED,10X91 8 92001-1004 4
BOLT,FLANGED,8X58 9 92001-1005 4 ASTERISK (*) MARKED PARTS ARE
BOLT,FLANGED,8X58 9 92001-1005 4 ASTERISK (*) MARKED PARTS ARE
BOLT,FLANGED,8X58 9 92001-1005 2
STUD,10X153 10 92004-062 2 ASTERISK (*) MARKED PARTS ARE
STUD,10X153 10 92004-062 2 ASTERISK (*) MARKED PARTS ARE
O RING,0.D=18MM 11 92055-048 2
PLUG,OIL SWITCH 12 92066-059 2 ASTERISK (*) MARKED PARTS ARE
PLUG,OIL SWITCH 12 92066-059 2 ASTERISK (*) MARKED PARTS ARE
CIRCLIP,36M/M 13 481J3600 1
PIN DOWEL 6MM 14 92042-016 2
OIL SEAL,PUSH ROD 15 92049-1041 1
OIL SEAL,TB13225.5 16 92051-005 1
GASKET,10X14.5X1.5 17 11009-1105 2
PLUG,OIL FILLER 18 16115-013 1
WIRE,LEAD,OIL SWITCH 19 26011-1078 1
SWITCH,OIL PRESSURE 20 27010-1157 1
BOLT,OIL SWITCH 21 92001-1020 1
"0" RING,31MM 22 92055-049 1
GASKET,DRIN PLUG 23 92065-097 1
PLUG,OIL DRAIN,12X15 24 92066-1174 1
