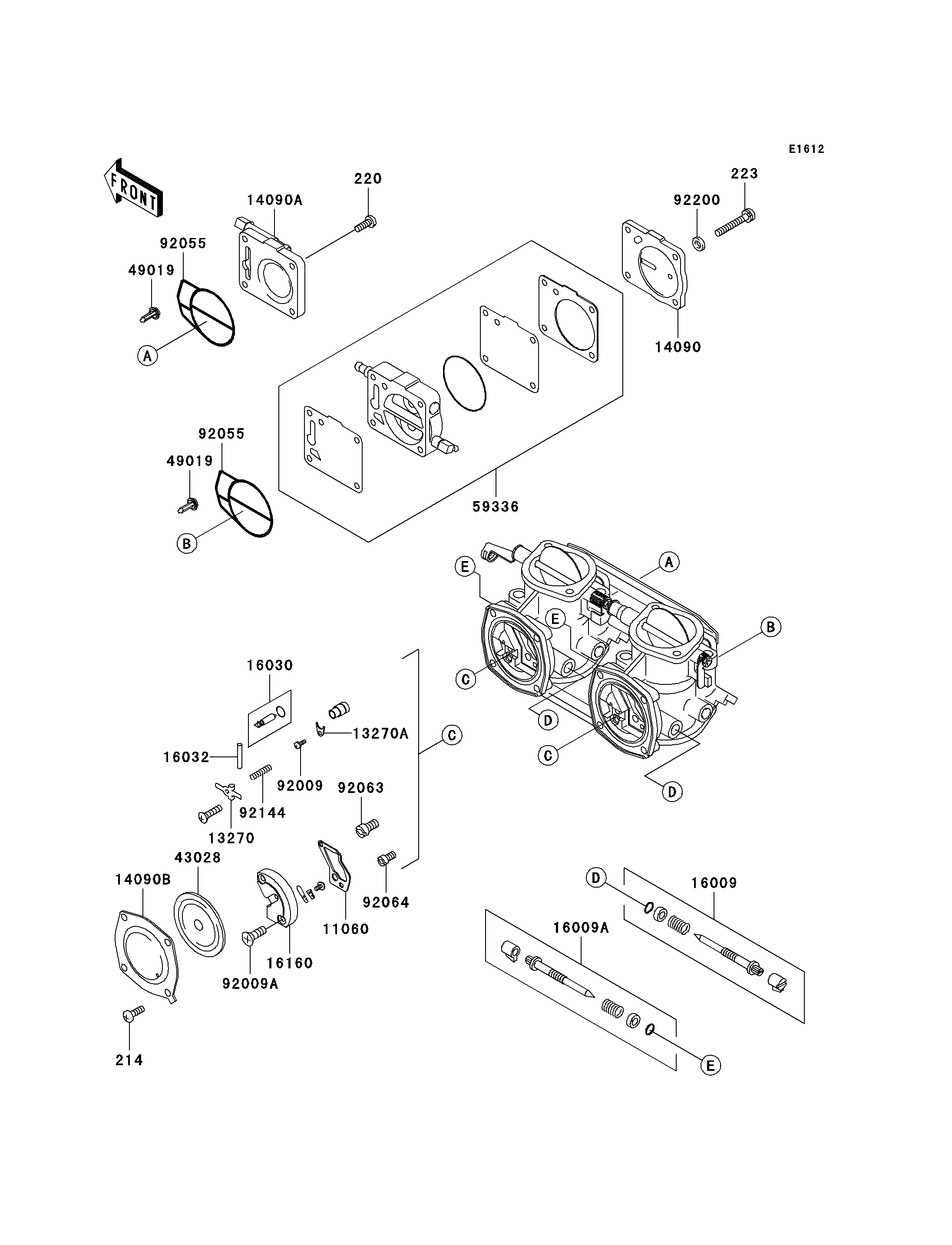

Parts Diagrams |
214
220
223
11060
13270
13270A
14090
14090A
14090B
16009
16009A
16030
16032
16160
43028
49019
49019
59336
92009
92009A
92055
92055
92063
92064
92144
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN+- | 214 | 214R0510 | 8 | ||
SCREW-PAN-CROS | 220 | 220R0516 | 4 | ||
SCREW-PAN-WS-CROS | 223 | 223R0535 | 4 | ||
GASKET | 11060 | 11060-3774 | 2 | ||
PLATE | 13270 | 13270-3828 | 2 | ||
PLATE | 13270A | 13270-3829 | 2 | ||
COVER | 14090 | 14090-3783 | 1 | ||
COVER | 14090A | 14090-3784 | 1 | ||
COVER | 14090B | 14090-3785 | 2 | ||
NEEDLE-JET,SLOW | 16009 | 16009-3717 | 2 | ||
NEEDLE-JET,MAIN | 16009A | 16009-3718 | 2 | ||
VALVE-FLOAT | 16030 | 16030-3703 | 2 | ||
PIN,FLOAT | 16032 | 16032-006 | 2 | ||
BODY | 16160 | 16160-3737 | 2 | ||
DIAPHRAGM | 43028 | 43028-3709 | 2 | ||
FILTER-FUEL | 49019 | 49019-3713 | 2 | ||
CASE-PUMP,DIAPHRAGM | 59336 | 59336-3712 | 1 | ||
SCREW,3X7 | 92009 | 92009-3821 | 2 | ||
SCREW,4X14 | 92009A | 92009-3822 | 4 | ||
RING-O | 92055 | 92055-3745 | 2 | ||
JET-MAIN,#147.5 | 92063 | 92063-3715 | 2 | ||
JET-PILOT,#67.5 | 92064 | 92064-3701 | 2 | ||
SPRING | 92144 | 92144-3756 | 2 | ||
WASHER,5.3X10X1.0 | 92200 | 92200-3745 | 4 |
