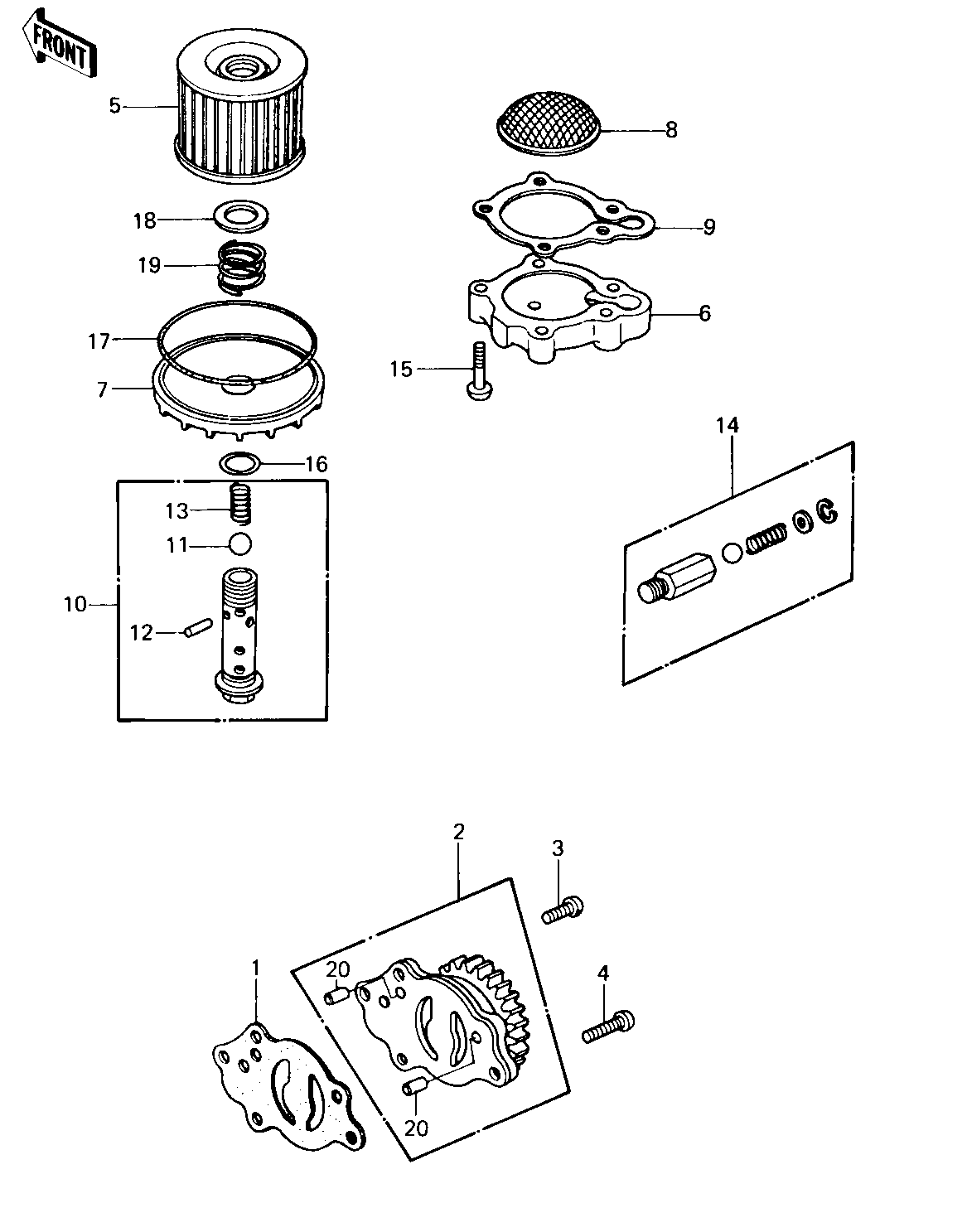

1980 KZ440-B1 - OIL PUMP/OIL FILTER ('80 B1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,OIL PUMP | 1 | 11009-1014 | 1 | ||
OIL PUMP ASSY | 2 | 16082-1001 | 1 | ||
SCREW PAN HEAD 6X10 | 3 | 220B0610 | 1 | ||
SCREW PAN HEAD 6X25 | 4 | 220B0625 | 3 | ||
FILTER,OIL | 5 | 16099-003 | 1 | ||
COVER,OIL STRAINER | 6 | 16101-003 | 1 | ||
COVER,OIL FILTER | 7 | 16101-004 | 1 | ||
STRAINER,OIL | 8 | 16111-003 | 1 | ||
GASKET,OIL FILTER COV | 9 | 11009-1874 | 1 | ||
VALVE,OIL FILTER | 10 | 16126-1108 | 1 | ||
BALL STEEL 3/8' | 11 | 600A1200 | 1 | ||
SPRING PIN | 12 | 92043-111 | 1 | ||
SPRING | 13 | 92081-109 | 1 | ||
RELEAF VALVE ASSY | 14 | 16130-1001 | 1 | ||
SCREW PAN HEAD 6X30 | 15 | 220B0630 | 5 | ||
"0" RING,16MM | 16 | 670B2016 | 1 | ||
"0" RING,90MM | 17 | 671B2590 | 1 | ||
WASHER,20.5X30X1.0 | 18 | 92022-1012 | 1 | ||
SPRING,OIL FILTER | 19 | 92081-1018 | 1 | ||
PIN,DOWEL,6X12 | 20 | 551A0612 | 2 |
