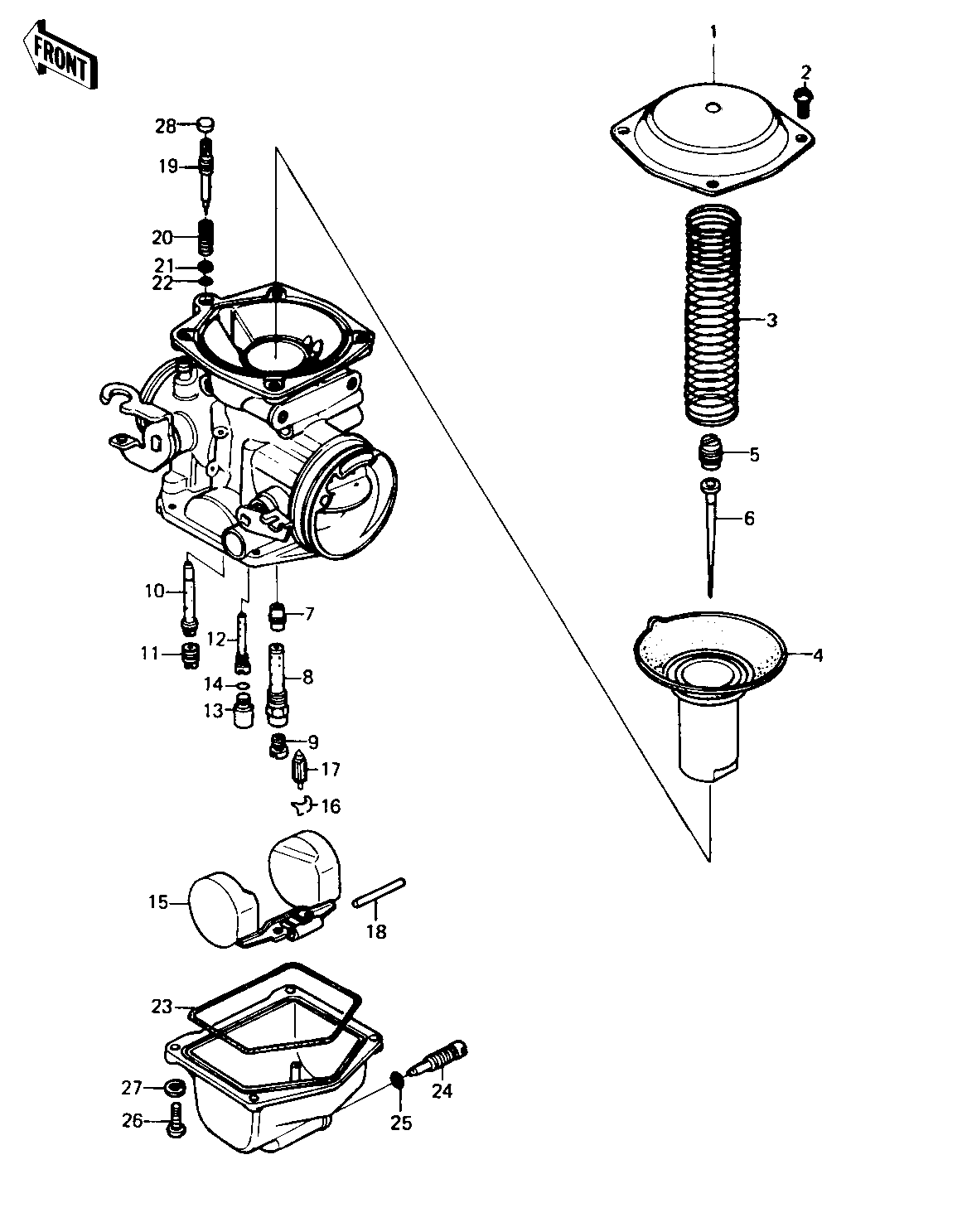

1980 KZ440-B1 - CARBURETOR PARTS ('80 B1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOP,MIXING CHAMBER 1 16005-1012 2
SCREW PAN HEAD 4X8 2 220B0408 8
SPRING 3 92081-1257 2
VALVE,VACUUM 4 16126-1044 2
SCREW,NEEDLE SET 5 16007-1022 2
JET NEEDLE,#N03A 6 16009-1065 2
NEEDLE JET 7 16017-1059 2
HOLDER,NEEDLE JET 8 13091-1050 2
MAIN JET,2ND,#90 9 92063-1003 2
MAIN JET,2ND,#85 9 92063-1023 (2 RACING USE ONLY
MAIN JET,2ND #88 9 92063-1024 (2 RACING USE ONLY
MAIN JET,#92,2ND 9 92063-1004 (2 RACING USE ONLY
MAIN JET,2ND,#95 9 92063-1001 (2 RACING USE ONLY
NOZZLE,MAIN 10 92062-1001 2
MAIN JET,PRI,#68 11 92063-1050 2
PILOT JET,#35 12 92064-1001 2
CAP,POLYESTER 13 11012-1128 2
"O" RING 14 92055-1088 2
FLOAT 15 16031-1001 2
CLIP,FLOAT VALVE 16 16044-007 2
FLOAT VALVE 17 16030-1007 2
FLOAT PIN 18 92043-1002 2
SCREW,PILOT ADJUST 19 16014-1011 2
SPRING,PIROT ADJ SCRW 20 92081-1002 2
WASHER,PLAIN 21 92022-1003 2
O RING,PILOT ADJ 22 92055-1002 2
"O" RING,FLOAT BALL 23 16019-024 2
SCREW,DRAIN 24 92009-1095 2
"O" RING,DRAIN SCREW 25 92055-1053 2
SCREW-PAN-CRSOSS,4X12 26 220B0412 8
WASHER SPRING 4MM 27 461F0400 8
PLUG,PILOT SCREW 28 92066-1051 1
