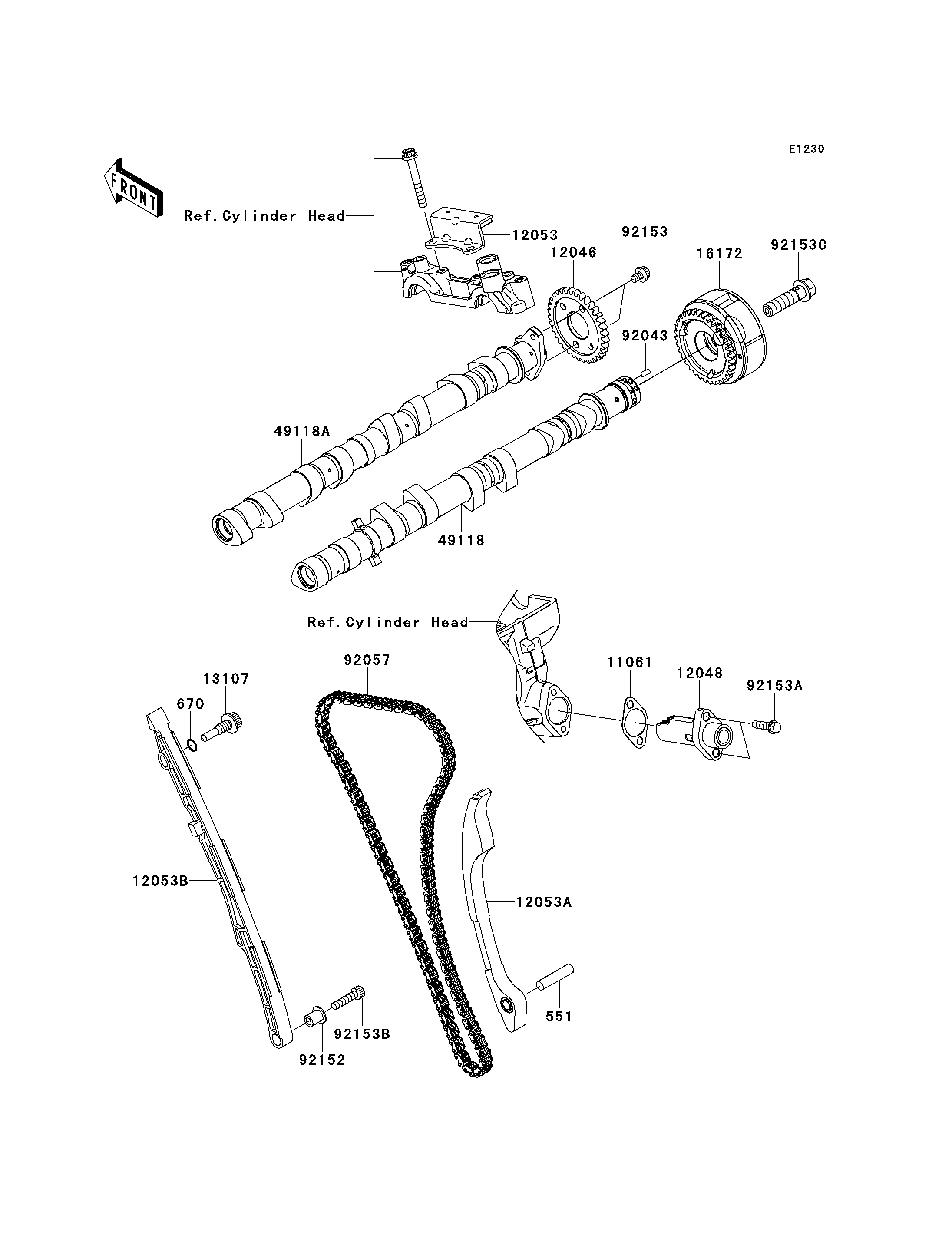

2008 Concours™ 14 - Camshaft(s)/Tensioner
551
670
11061
12046
12048
12053
12053A
12053B
13107
16172
49118
49118A
92043
92057
92152
92153
92153A
92153B
92153C
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIN-DOWEL | 551 | 551A0835 | 1 | ||
O RING,9MM | 670 | 670D1509 | 1 | ||
GASKET,TENSIONER | 11061 | 11061-0299 | 1 | ||
SPROCKET,34T | 12046 | 12046-0057 | 1 | ||
TENSIONER-ASSY,HYDRAULIC | 12048 | 12048-0047 | 1 | ||
GUIDE-CHAIN,UPP | 12053 | 12053-0067 | 1 | ||
GUIDE-CHAIN,RR | 12053A | 12053-0093 | 1 | ||
GUIDE-CHAIN,FR | 12053B | 12053-0128 | 1 | ||
SHAFT,CHAIN GUIDE | 13107 | 13107-0157 | 1 | ||
ACTUATOR,VVT | 16172 | 16172-0011 | 1 | ||
CAMSHAFT-COMP,INTAKE | 49118 | 49118-0092 | 1 | ||
CAMSHAFT-COMP,EXHAUST | 49118A | 49118-0093 | 1 | ||
PIN,3.665X7.8 | 92043 | 92043-0119 | 1 | ||
CHAIN,92RH2015-130M | 92057 | 92057-0109 | 1 | ||
COLLAR | 92152 | 92152-0413 | 1 | ||
BOLT,FLANGED,6X8 | 92153 | 92153-0455 | 2 | ||
BOLT-FLANGED-SMALL,6X22 | 92153A | 92153-1560 | 2 | ||
BOLT,SOCKET,6X25 | 92153B | 92153-1561 | 1 | ||
BOLT,FLANGED,11X40 | 92153C | 92153-3733 | 1 |
