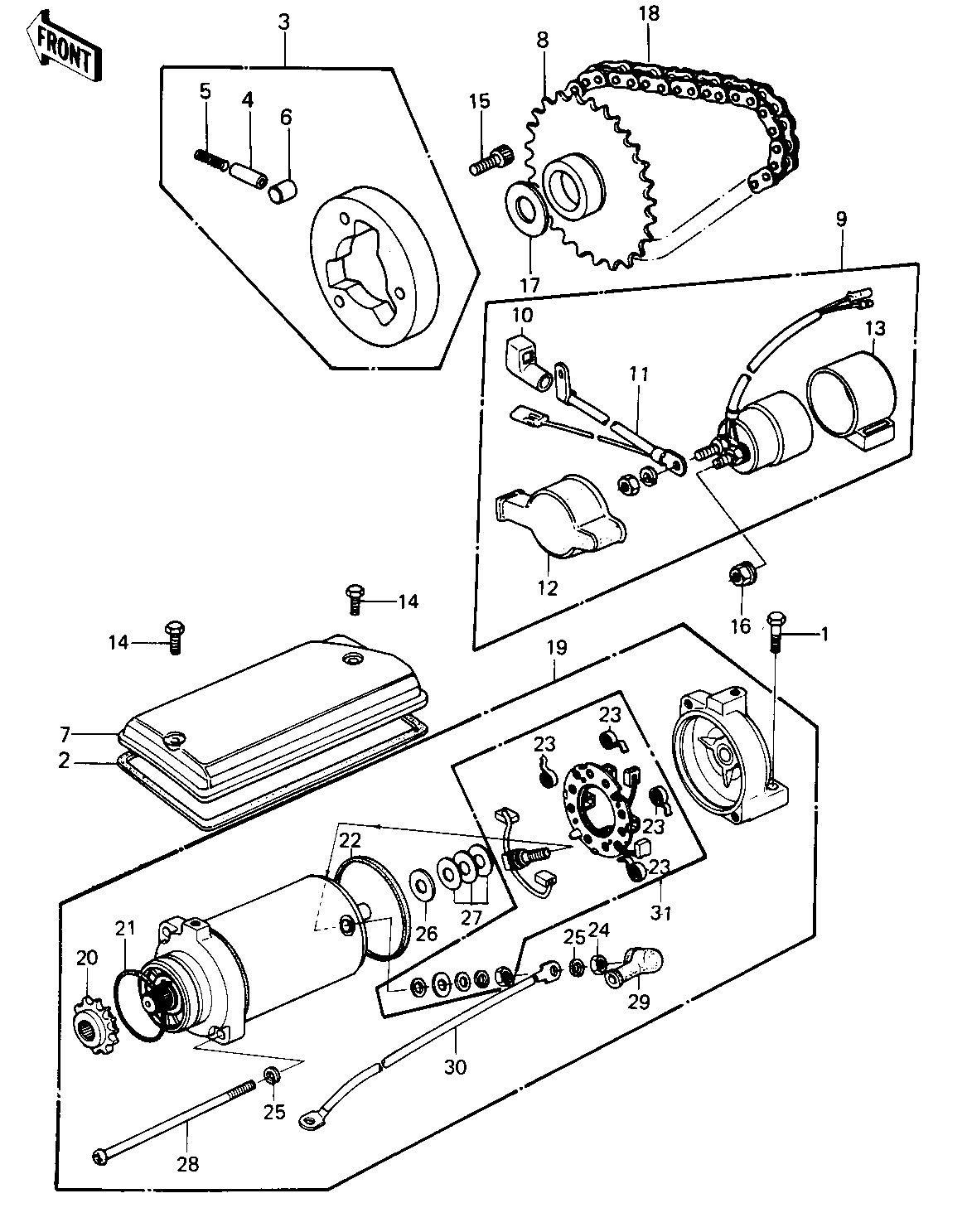

1980 KZ440-B1 - STARTER MOTOR/STARTER CLUTCH ('80 B1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 1 112G0625 2
GASKET,STARTER COVER 2 11009-1006 1
CLUTCH ASSY,STARTER 3 13193-1001 1
PIN 4 92043-087 3
SPRING 5 92081-110 3
ROLLER 6 92122-004 3
COVER,STARTER 7 14025-1284 1
SPROCKET,ONWAY CLUTCH 8 12046-1030 1
SWITCH MAGNETIC 9 27010-1014 1
CAP,MAG SWTCH TERMNL 10 21017-021 1
WIRE,LEAD,MAG SWITCH 11 26011-1027 1
COVER MAGNETIC SWITCH 12 21141-004 1
DAMPER MAG SWITCH SHK 13 21064-002 1
BOLT,6X10 14 92001-1151 2
BOLT 15 120P0816 3
NUT,LOCK 6MM 16 92017-014 1
SPACER,25X40X1 17 92026-1004 1
CHAIN,DYNAMO 18 92057-1009 1
MOTOR ASSY,STARTER 19 21163-1011 1
SPROCKET STARTNG MOT 20 21053-002 1
"0" RING,42.8MM 21 21027-005 1
"0" RING,STARTER MOTR 22 92055-1086 1
SPRING,CARBON BRUSH 23 21040-1002 4
NUT 6MM 24 312B0600 1
WASHER SPRING 6MM 25 461F0600 3
WASHER,THRUST,0.8T 26 92022-1132 1
WASHER,THRUST,0.2T 27 21025-011 4
SCREW,PAN HEAD,6X119 28 92009-1097 2
CAP,STARTING MOTOR 29 21017-020 1
WIRE STRTER MOT LEAD 30 26010-035 1
BRUSH SET,CARBON 31 21039-1005 1
