Parts Diagrams |

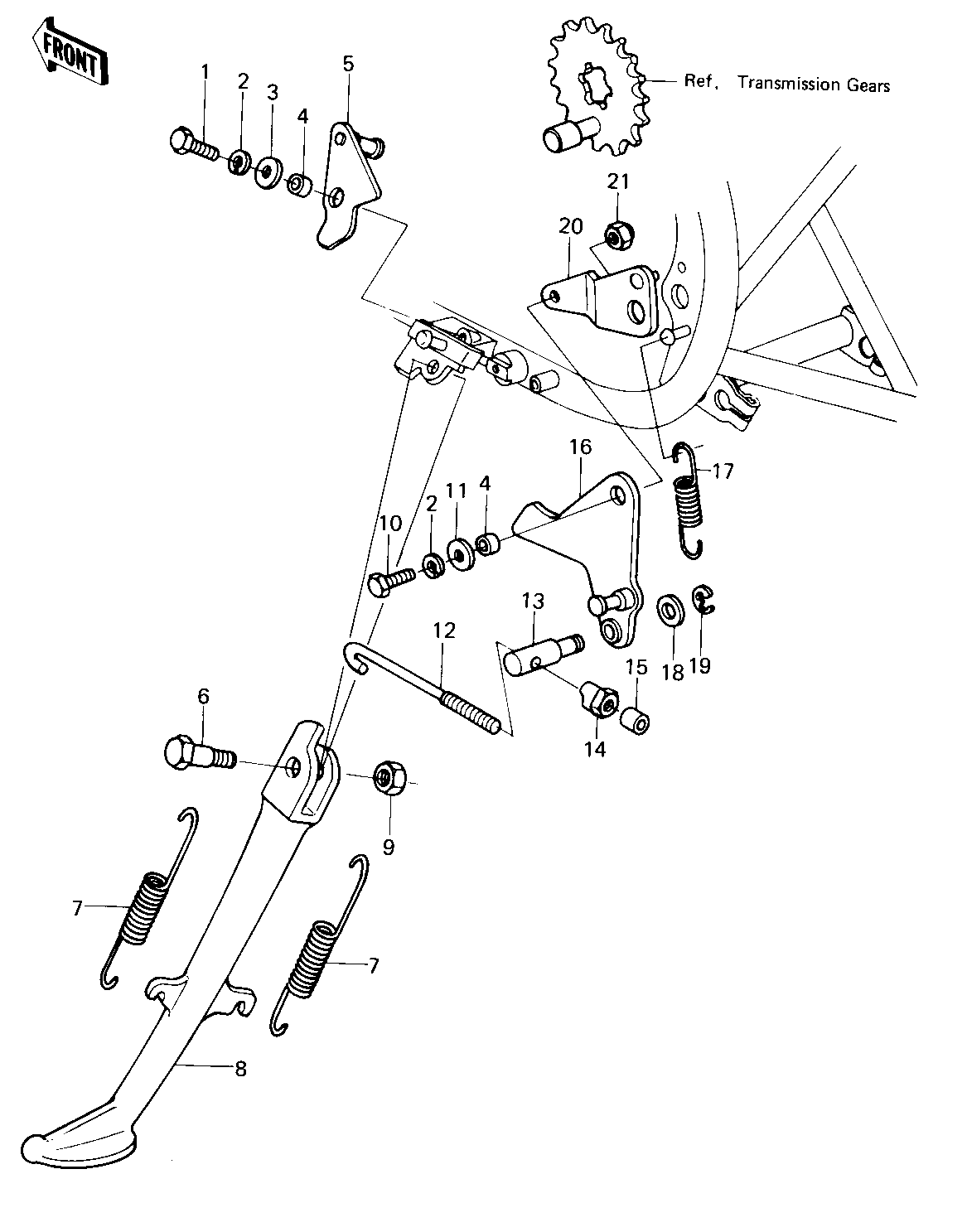

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET,6X16 | 1 | 112G0616 | 1 | ||
WASHER SPRING 6MM | 2 | 461F0600 | 2 | ||
WASHER PLAIN 6MM | 3 | 411B0600 | 1 | ||
COLLAR,6.3X10X4.8 | 4 | 92027-1066 | 2 | ||
LATCH,SIDE STAND | 5 | 49031-1001 | 1 | ||
BOLT, SIDE STAND FIT | 6 | 92003-157 | 1 | ||
SPRING,SIDE STAND | 7 | 92081-1020 | 2 | ||
STAND-SIDE | 8 | 34024-1008 | 1 | ||
NUT,LOCK,10MM | 9 | 92019-021 | 1 | ||
BOLT-UPSET,6X20 | 10 | 112G0620 | 1 | ||
WASHER 6.5X20X1.6T | 11 | 92022-125 | 1 | ||
ROD,TIE,SIDE STAND | 12 | 39111-1002 | 1 | ||
PIN,SIDE STAND | 13 | 92043-1018 | 1 | ||
NUT,6M/M | 14 | 92015-1028 | 1 | ||
TUBE,4.5X9X7 | 15 | 92059-1012 | 1 | ||
LEVER,SIDE STAND | 16 | 13168-1005 | 1 | ||
SPRING | 17 | 92081-1023 | 1 | ||
WASHER PLAIN 8MM | 18 | 410B0800 | 1 | ||
CIRCLIP,6M/M | 19 | 482K6000 | 1 | ||
BRACKET,SIDE STAND | 20 | 11034-1151 | 1 | ||
NUT | 21 | 92019-008 | 1 |
