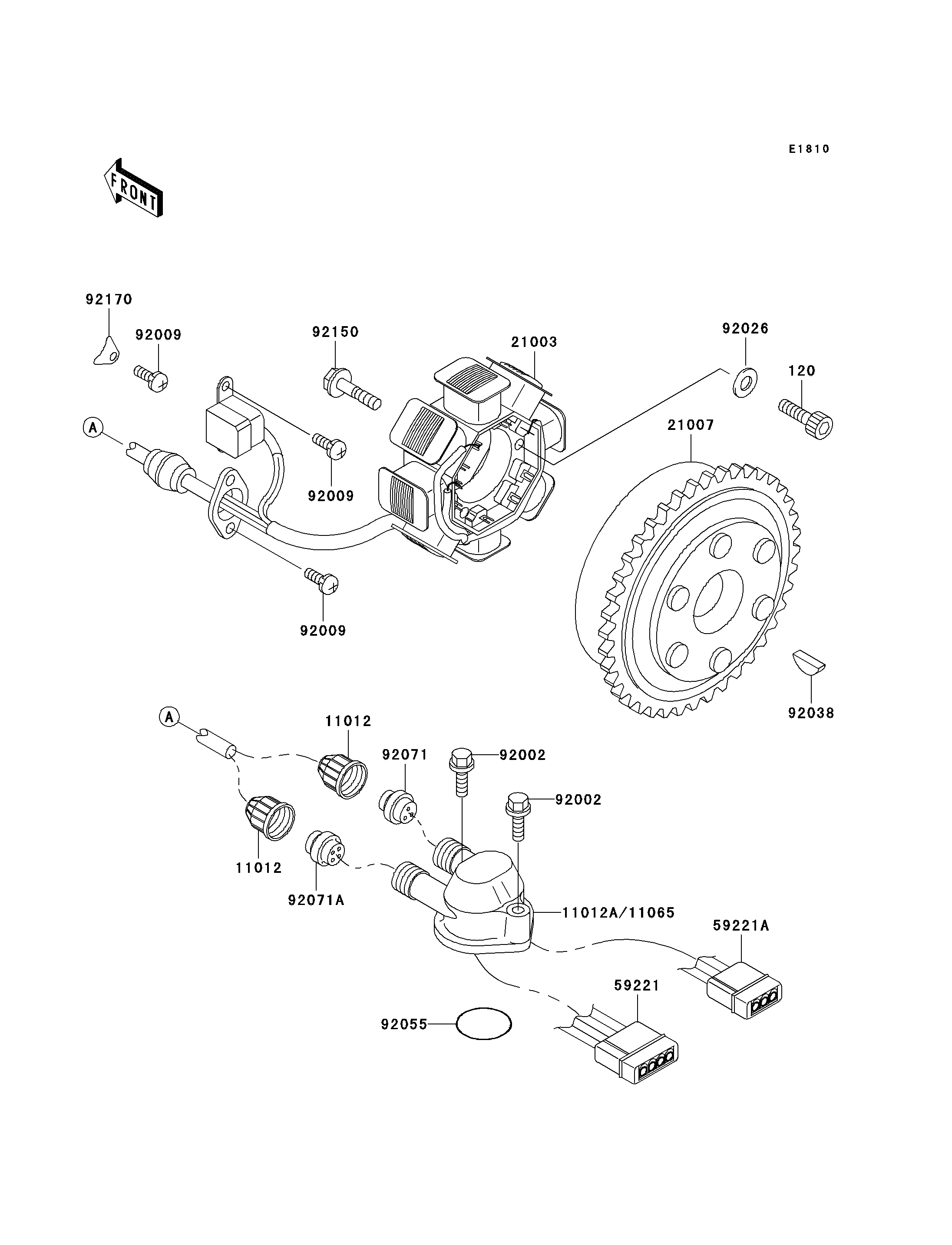

120
11012
11012
11065
21003
21007
59221
59221A
92002
92002
92009
92009
92009
92026
92038
92055
92071
92071A
92150
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X30 120 120P0630 3
CAP 11012 11012-3005 2
CAP,ELECTRIC CASE 11065 11065-3713 1
STATOR 21003 21003-3732 1
ROTOR,MAGNETO 21007 21007-3713 1
CONNECTOR-CORD 59221 59221-3701 1
CONNECTOR-CORD 59221A 59221-3703 1
BOLT,6X35 92002 92002-3715 2
SCREW,5X12 92009 92009-1296 5
SPACER,6.3X12X1.0 92026 92026-094 3
KEY,WOODRUFF 92038 92038-001 1
RING-O 92055 92055-3706 1
GROMMET 92071 92071-3784 1
GROMMET 92071A 92071-3786 1
BOLT 92150 92150-3843 1
CLAMP,HARNEES 92170 92170-3728 1
