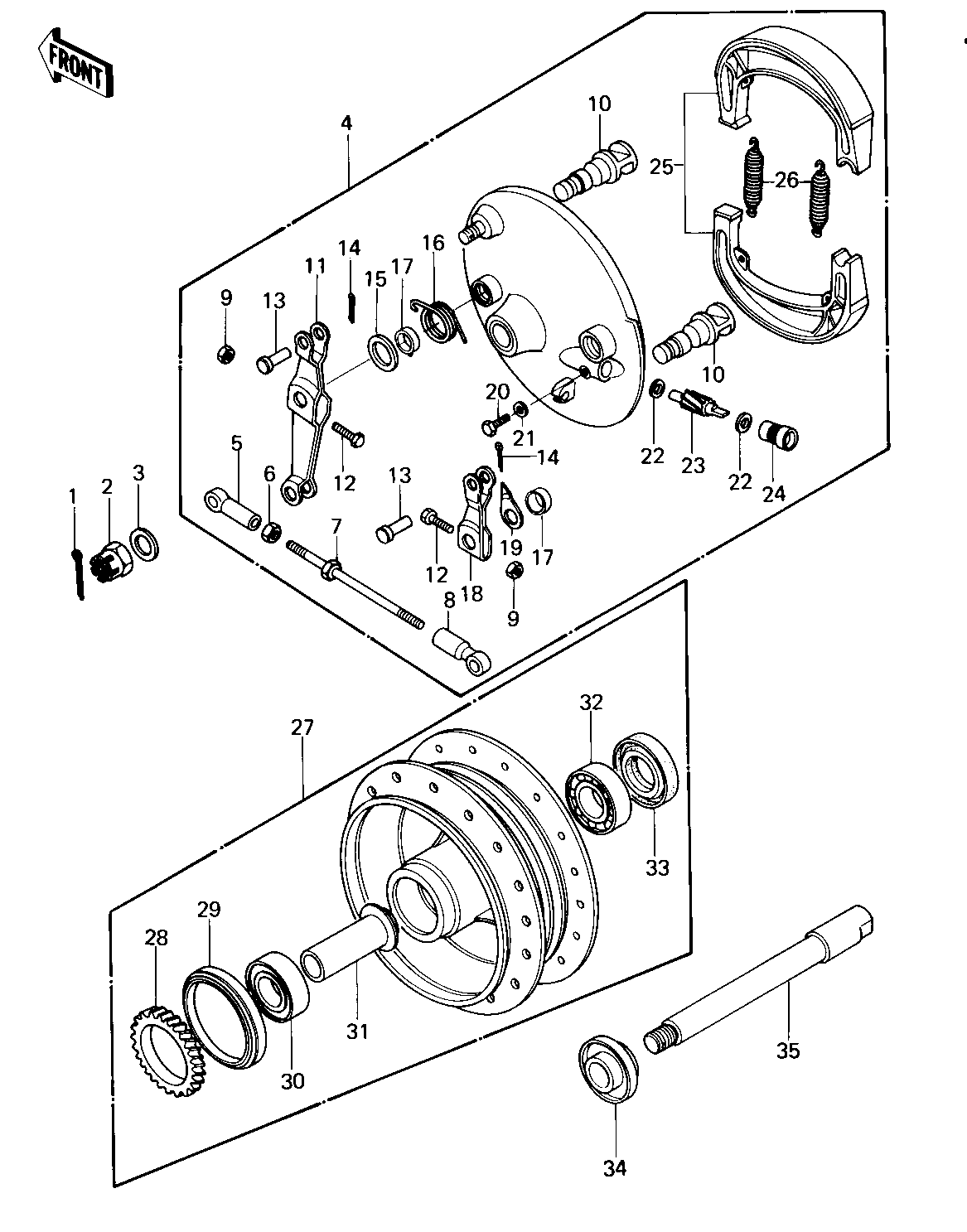

1980 KZ440-B1 - FRONT HUB/BRAKE ('80 B1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN COTTER 3.0X25 1 550D3025 1
NUT,14MM 2 42045-020 1
WASHER PLAIN 14MM 3 410B1400 1
PANEL-ASY,FR BRK 4 41035-1005 1
ROD END,BRK CONNECT 5 41058-008 1
NUT,5MM 6 311B0500 1
ROD BRK CAM LEV CONCT 7 41057-004 1
ROD END,BRK CONNECT 8 41058-009 1
NUT,6MM 9 41072-007 2
CAM SHAFT,FRONT BRAKE 10 41050-016 2
LEVER FRT BRK CAM 1ST 11 41053-011 1
BOLT-UPSET 12 112G0630 2
PIN BRAKE CONNECT ROD 13 41055-003 2
PIN COTTER 1.2X10 14 550D1210 2
WASHER,BRAKE CAMSHAFT 15 41052-005 1
SPRING FR BRK CAM LEV 16 41056-001 1
DUST SHIELD BRAKE CAM 17 41051-001 2
LEVER FRT BRK CAM 2ND 18 41053-012 1
INDICATOR,FR BK SHOE 19 41085-015 1
BOLT-UPSET 20 112G0618 1
WASHER PLAIN 6MM 21 411B0600 1
WASHER PINION THRUST 22 41063-003 2
PINION SPEEDOMETER 23 41060-007 1
BUSH SPEDMETER PINION 24 41062-003 1
SHOE,BRAKE 25 41048-019 2
SPRING FRNT BRK SHOE 26 41049-004 2
DRUM-ASSY,FR BRK 27 41034-1008 1
GEAR,SPEEDOMETER,30T 28 41060-1014 1
OIL SEAL WOC55687 29 92050-017 1
BEARING BALL #6302Z 30 601B6302Z 1
SPACER F AXLE BEARING 31 41039-011 1
BEARING BALL #6302 32 601B6302 1
OIL SEAL WTC25428 33 92052-005 1
COLLAR,FRONT AXLE 34 92027-1049 1
AXLE,FRONT 35 41068-045 1
