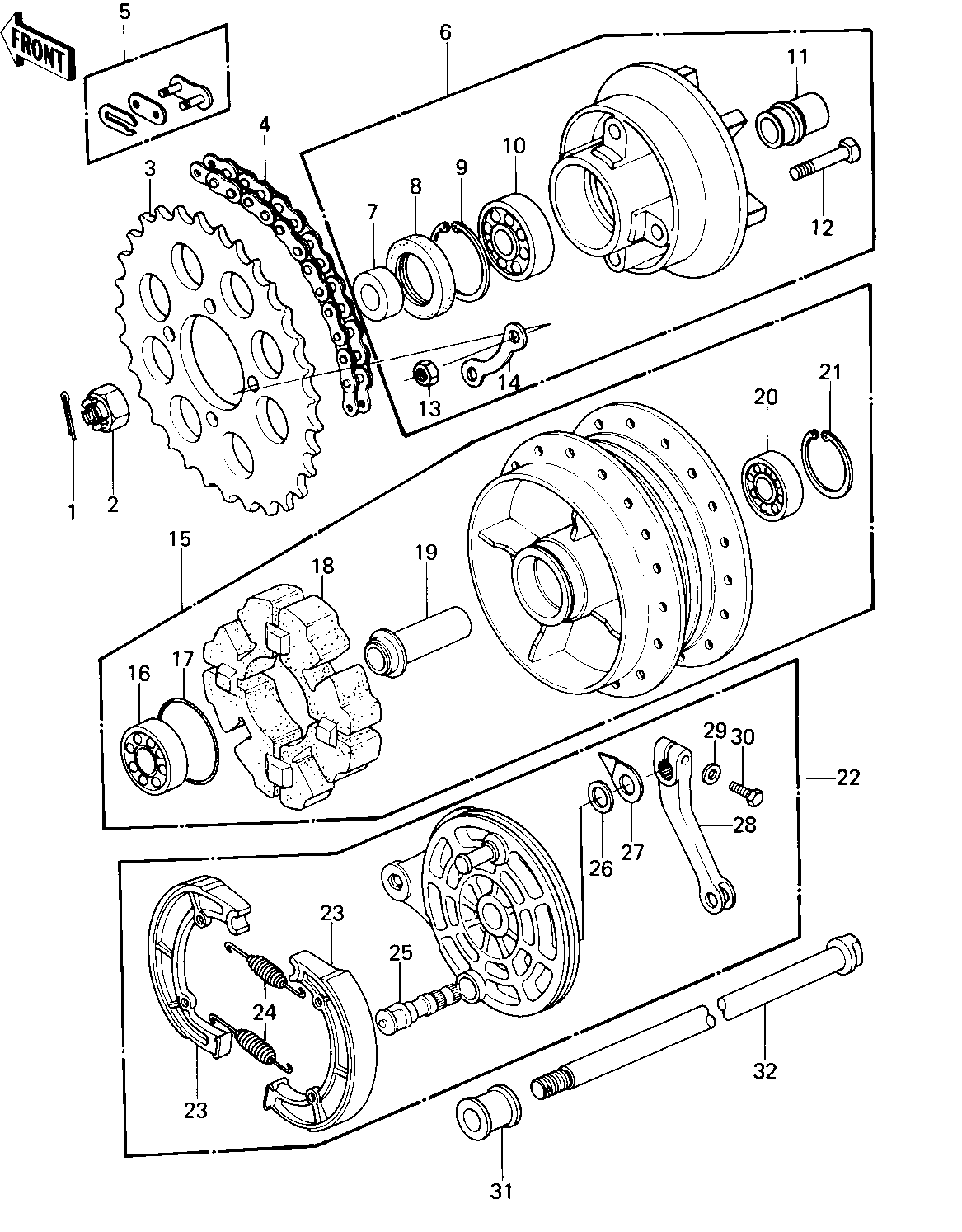

1980 KZ440-B1 - REAR HUB/BRAKE/CHAIN ('80 B1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 1 550D4035 1
NUT CASTLE,16MM 2 92015-055 1
REAR SPROCKET,45T 3 42041-145 1
DR CHAIN 530X100 4 92057-092 1
CHAIN JOINT 530 5 92058-008 1
COUPLING ASSY,REAR 6 42033-1002 1
COLLAR,COUPLING,L.H. 7 92027-1014 1
OIL SEAL WTC35527 8 92052-006 1
RING,SNAP,56.2M/M 9 92033-1043 1
BEARING BALL #6205 10 601B6205 1
SLEEVE,COUPLING 11 42036-1002 1
BOLT, RR SPROCKET FIT 12 92003-156 4
NUT,10MM 13 314B1000 4
WASHER SPROCKET LOCK 14 92088-005 2
DRUM-ASSY,RR BRK 15 41034-1005 1
BEARING BALL #6303 16 601B6303 1
"0" RING,60MM 17 671B2560 1
DAMPER,REAR HUB SHOCK 18 92075-1008 1
COLLAR,REAR HUB BRG. 19 92027-1013 1
BEARING-BALL 20 601B6303U 1
CIRCLIP,47M/M 21 92033-1042 1
PANEL-ASY,RR BRK 22 41035-1089 1
SHOE-BRAKE 23 41048-1069 2
SPRING-BRAKE SHOE 24 42020-004 2
CAM,BRAKE 25 41050-1001 1
DUST SHIELD-BRAKE CAM 26 41051-003 1
INDICATOR,BRAKE SHOE 27 41085-004 1
LEVER,BRAKE CAM 28 41053-1001 1
WASHER PLAIN 8MM 29 410B0800 1
BOLT HEX HEAD 8X28 30 114G0828 1
COLLAR,REAR AXLE,R.H. 31 92027-1015 1
AXLE,REAR 32 41068-1004 1
