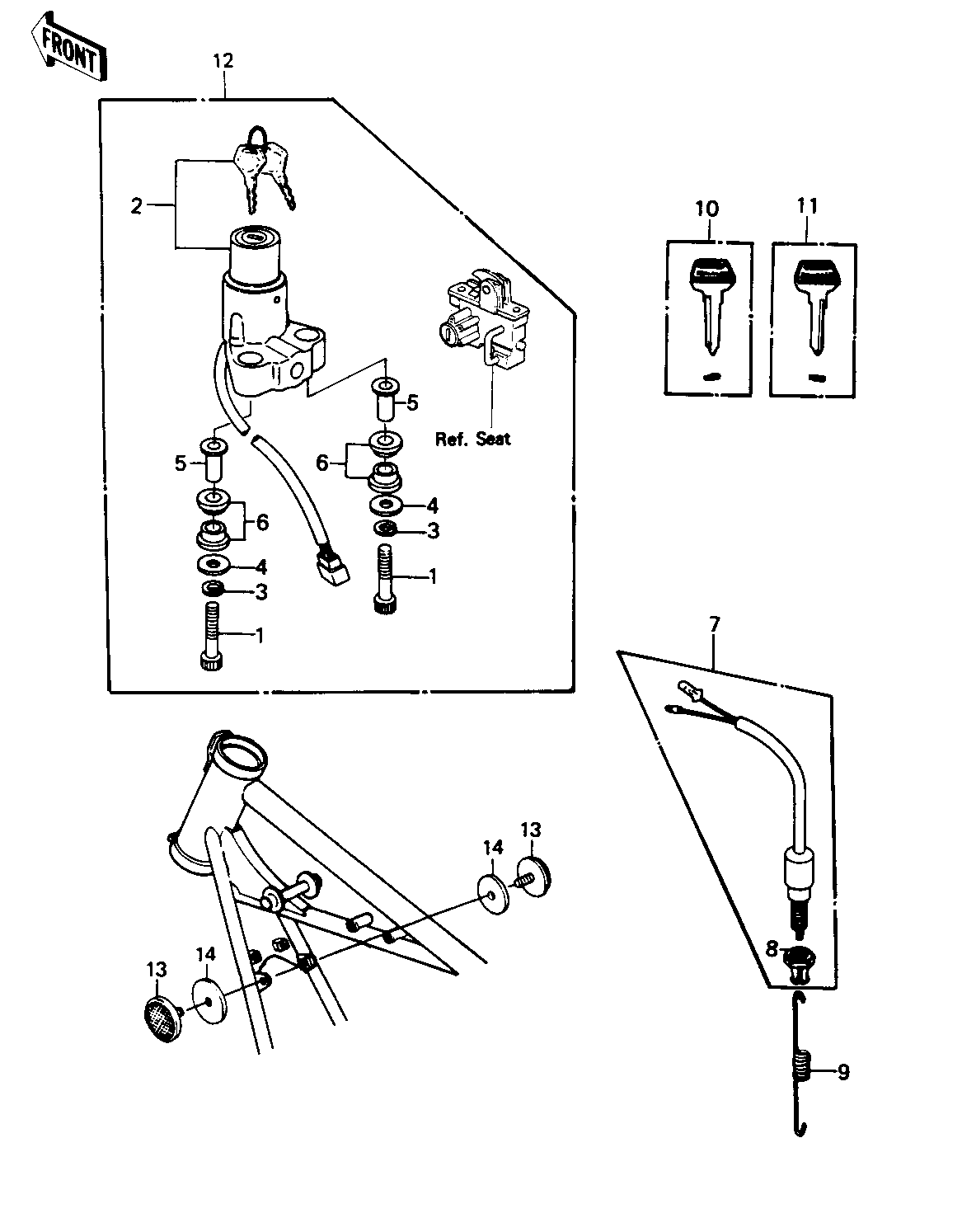

1980 KZ440-B1 - IGNITION SWITCH/LOCKS ('80 B1)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,ALLEN,8X45 1 120P0845 2
SWITCH ASSY,IGNITION 2 27005-1033 1
WASHER SPRING 8MM 3 461F0800 2
WASHER,8.5X20X1.6 4 92022-1561 2
COLLAR,IG SWITCH 5 92027-1135 2
DAMPER,IG SWITCH 6 92075-1119 4
SWITCH,BRAKE LIGHT 7 27010-025 1
NUT,BRAKE LAMP SWITCH 8 27037-001 1
SPRING,BRAKE LIGHT SW 9 27011-015 1
KEY,BLANK 10 27008-1034 (1
KEY,BLANK 11 27008-1035 (1
LOCK SET,KZ400B2 12 27004-5048 1
REFLECTOR,REFLEX,REAR 13 28012-009 2
DAMPER RUBBER,REFLECT 14 92094-011 2
