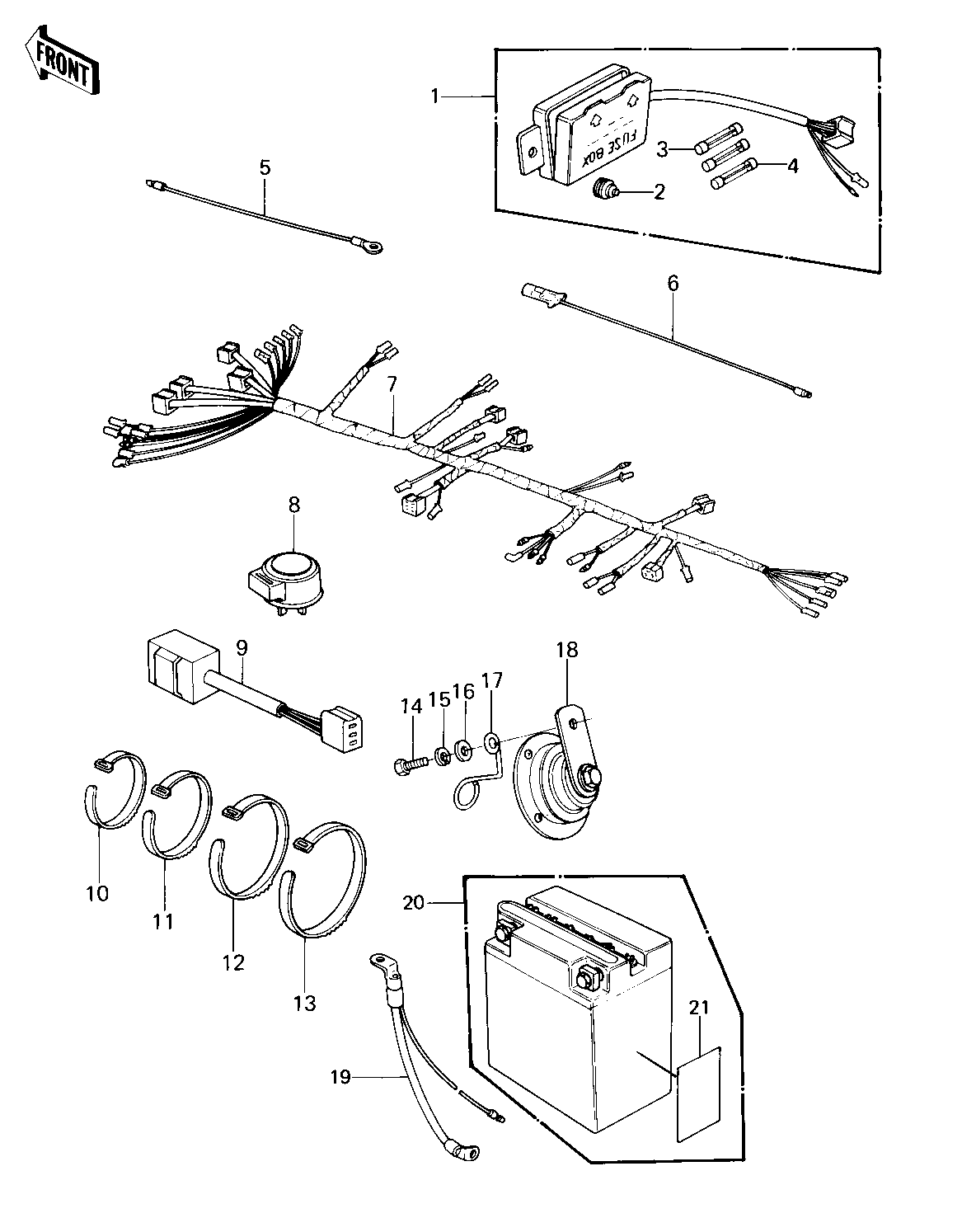

1980 KZ440-B1 - CHASSIS ELECTRICAL EQUIPMENT ('80 B1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FUSE ASSY | 1 | 26004-035 | 1 | ||
DAMPER RUBBER,FUSE | 2 | 92075-279 | 1 | ||
FUSE-20A | 3 | 26006-005 | 2 | ||
FUSE 10A | 4 | 26006-003 | 3 | ||
LEAD WIRE,SIGNAL LAMP | 5 | 26011-063 | 3 | ||
WIRE,LEAD,REAR SIGNAL | 6 | 26011-1021 | 1 | ||
HARNESS,MAIN | 7 | 26001-1128 | 1 | ||
RELAY-TURN SIGNAL | 8 | 27002-011 | 1 | ||
SWITCH,BK LIGHT IND | 9 | 28019-002 | 1 | ||
BAND,BREATHER WIRE | 10 | 92072-067 | 2 | ||
BAND,SHORT | 11 | 92072-030 | 5 | ||
BAND,MIDDLE | 12 | 92072-031 | 4 | ||
BAND,LONG | 13 | 92072-032 | 3 | ||
BOLT,8X20 | 14 | 115G0820 | 1 | ||
WASHER SPRING 8MM | 15 | 461F0800 | 1 | ||
WASHER PLAIN 8MM | 16 | 410B0800 | 1 | ||
CLAMP,CABLE | 17 | 92037-155 | 1 | ||
HORN | 18 | 27003-1005 | 1 | ||
WIRE LEAD,BATTERY GRD | 19 | 26011-1022 | 1 | ||
FB BAT FB12A-A | 20 | 26012-1004 | 1 | ||
LABEL-WARNING,BATTERY | 21 | 56040-1036 | 1 |
