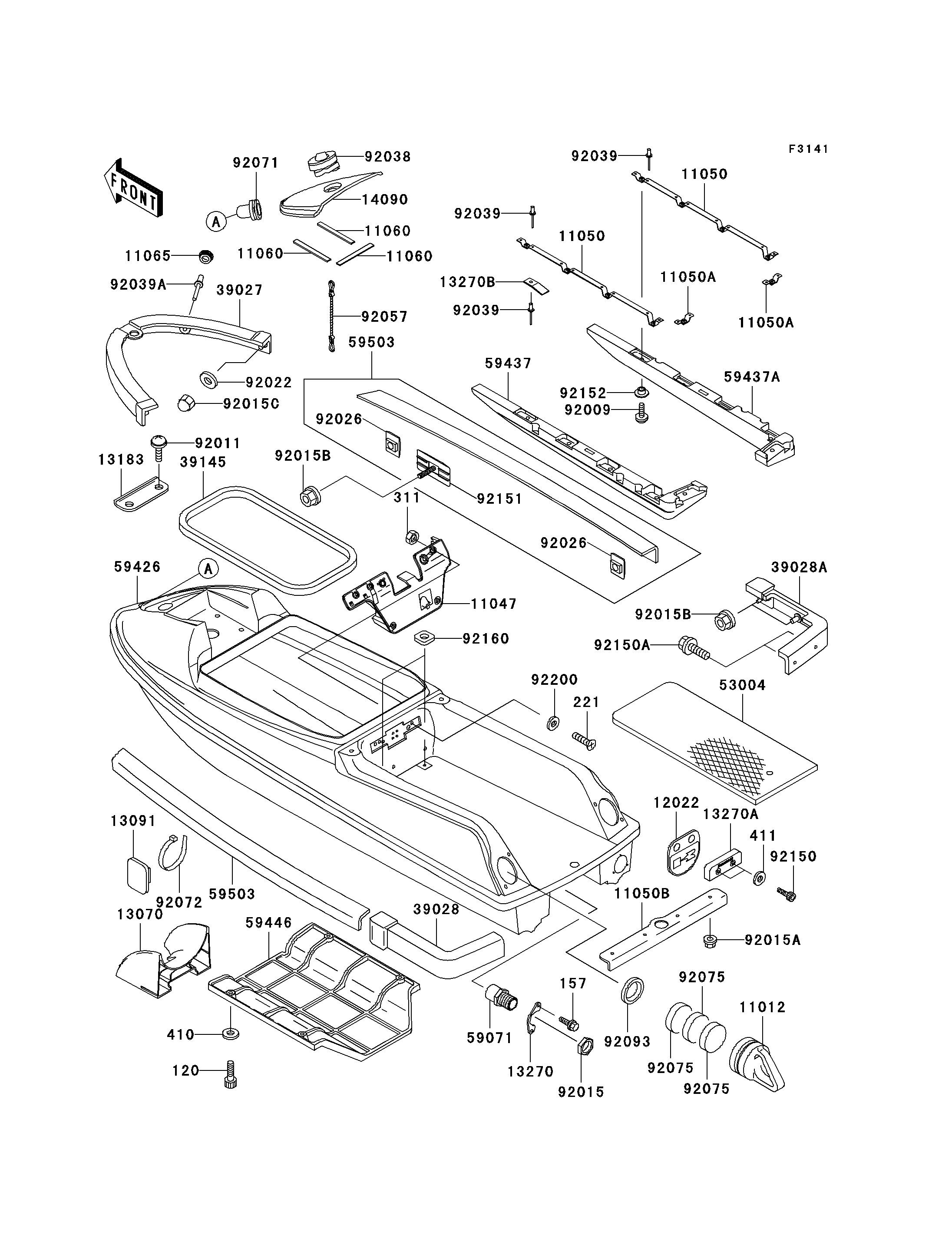

1998 SXI PRO - Hull(JS750-C1)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11047
11047
11050
11050
11050
11050
11050A
11050A
11050A
11050A
11050B
11050B
11060
11060
11060
11060
11060
11060
11065
11065
12022
12022
13070
13070
13091
13091
13183
13183
13270
13270
13270A
13270A
13270B
13270B
14090
14090
39027
39027
39028
39028
39028A
39028A
39145
39145
53004
53004
59071
59071
59437
59437
59437A
59437A
59446
59446
59503
59503
59503
59503
92009
92009
92011
92011
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
92015C
92015C
92022
92022
92026
92026
92026
92026
92038
92038
92039
92039
92039
92039
92039
92039
92039A
92039A
92057
92057
92071
92071
92072
92072
120
120
157
157
221
221
311
311
410
410
411
411
92075
92075
92075
92075
92075
92075
92093
92093
92150
92150
92150A
92150A
92151
92151
92152
92152
92160
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,VIOLET 11012 11012-3752-RE 2
BRACKET,CONTROL KNOB 11047 11047-3745 1
BRACKET,STABILIZER 11050 11050-3730 2
BRACKET,STABILIZER 11050A 11050-3731 2
BRACKET 11050B 11050-3752 1
GASKET 11060 11060-3722 3
CAP,J.S.VIOLET 11065 11065-3707-RE 2
VALVE-REED 12022 12022-3706 1
GUIDE,INTAKE 13070 13070-3708 1
HOLDER,BAND 13091 13091-3764 8
PLATE 13183 13183-3787 1
PLATE 13270 13270-3782 1
PLATE 13270A 13270-3785 1
PLATE 13270B 13270-3906 2
COVER,TANK CAP,BLACK MICA 14090 14090-3707-5M 1
BUMPER-FRONT,J.S.VIOLET 39027 39027-3737-RE 1
BUMPER-REAR,LH,J.S.VIOLET 39028 39028-3744-RE 1
BUMPER-REAR,RH,J.S.VIOLET 39028A 39028-3745-RE 1
TRIM-SEAL 39145 39145-3731 1
MAT 53004 53004-3740 1
JOINT 59071 59071-3763 1
STABILIZER,LH,J.WHITE 59437 59437-3715-8U 1
STABILIZER,RH,J.WHITE 59437A 59437-3716-8U 1
COVER-JET PUMP 59446 59446-3738 1
FENDER-BOAT,J.S.VIOLET 59503 59503-3705-RE 2
SCREW,6X15 92009 92009-3830 10
SCREW,TAPPING 92011 92011-561 2
NUT,20MM 92015 92015-3738 1
NUT,6MM 92015A 92015-3767 4
NUT,FLANGED,5MM 92015B 92015-3768 12
NUT,CAP,5MM 92015C 92015-3802 2
WASHER 92022 92022-567 2
SPACER 92026 92026-3740 4
KEY,TANK CAP 92038 92038-3707 1
RIVET 92039 92039-3719 22
RIVET 92039A 92039-3747 2
CHAIN,COVER,L=100 92057 92057-3704 1
GROMMET 92071 92071-3780 1
BAND,L=148 92072 92072-3768 8
BOLT-SOCKET,6X20 120 120R0620 4
BOLT-WSP,5X18 157 157R0518 2
SCREW-CSK-CROS,6X20 221 221R0620 5
NUT-HEX,6MM 311 311R0600 5
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
WASHER-PLAIN,6MM 411 411S0600 2
DAMPER 92075 92075-3719 6
SEAL,OSR70X82X7.5 92093 92093-3704 2
BOLT,SOCKET,6X18 92150 92150-3775 2
BOLT,SOCKET,5X18 92150A 92150-3778 4
BOLT 92151 92151-3778 8
COLLAR 92152 92152-3704 10
DAMPER 92160 92160-3797 2
WASHER 92200 92200-3720 5
HULL-COMP,J.WHITE 59426 59426-3878-8C 1 US
