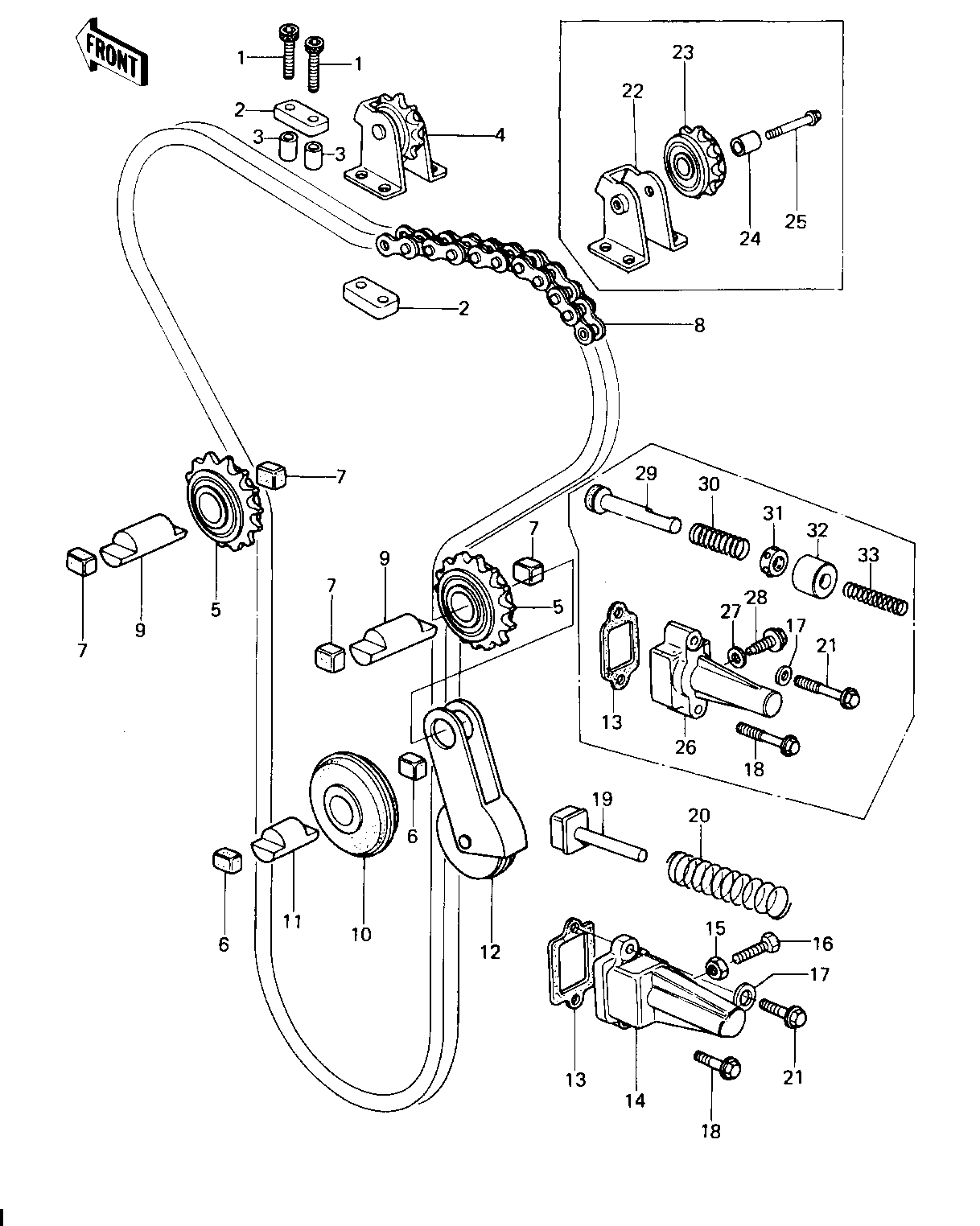

1978 Custom - CAM CHAIN/TENSIONER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,ALLEN,6X32 1 120Q0632 2
DAMPER RUBBER 2 92075-289 2
COLLAR,8X15 3 92027-1079 2
IDLER ASSY,CAM CHAIN 4 12053-1013 2 E/NO. 054600~
IDLER ASSY,CAM CHAIN 5 12053-1012 2
DAMPER RUBBER 6 92075-123 2
RUBBER,GUIDE ROLLAR 7 92075-232 2
CHAIN,CAM 8 21070-012 2
SHAFT,GUIDE ROLLER 9 12052-005 2
ROLLER,CAM CHN GUIDE 10 12055-004 2
SHAFT,CAM CHAIN GUID 11 12052-003 2
TENSIONER,CAM CHAIN 12 12048-015 2
GASKET,TENSIONER 13 11009-1980 2
HOLDER,TENSIONER 14 12049-1003 2 KZ650-C1/C2
NUT 6MM 15 311B0600 2 KZ650-C1/C2
BOLT,TENSIONER ADJUS 16 92003-093 2 KZ650-C1/C2
WASHER OIL PUMP BANJ 17 92022-077 2
BOLT,FLANGED,6X30 18 130G0630 2
PUSH ROD,CAM CHAIN 19 12054-001 2 KZ650-C1/C2
SPRING,TENSTIONER 20 92081-107 2 KZ650-C1/C2
BOLT,FLANGED,6X35 21 130H0635 2
IDLER ASSY,CAM CHAIN 22 12053-1013 2 E/NO. 000101~064599
IDLER ASSY,CAM CHAIN 23 12053-1012 2 E/NO. 000101~064599
COLLAR,IDLER 24 92027-261 2 E/NO. 000101~064599
BOLT,FLANGED,6X25 25 130G0625 2 E/NO. 00101~064599
TENSIONER KIT 26 99996-1021 2
WASHER OIL PUMP BANJ 27 92022-077 2 KZ650-C3
BELT,TENSIONER ADJUS 28 92001-1155 2 KZ650-C3
ROD ASSY,PUSH 29 13116-1008 2 KZ650-C3
SPRING,TENSIONER 30 92081-1068 2 KZ650-C3
RETAINER 31 14020-1002 2 KZ650-C3
COLLAR, TENSIONER 32 92027-1102 2 KZ650-C3
SPRING 33 92081-146 2 KZ650-C3
