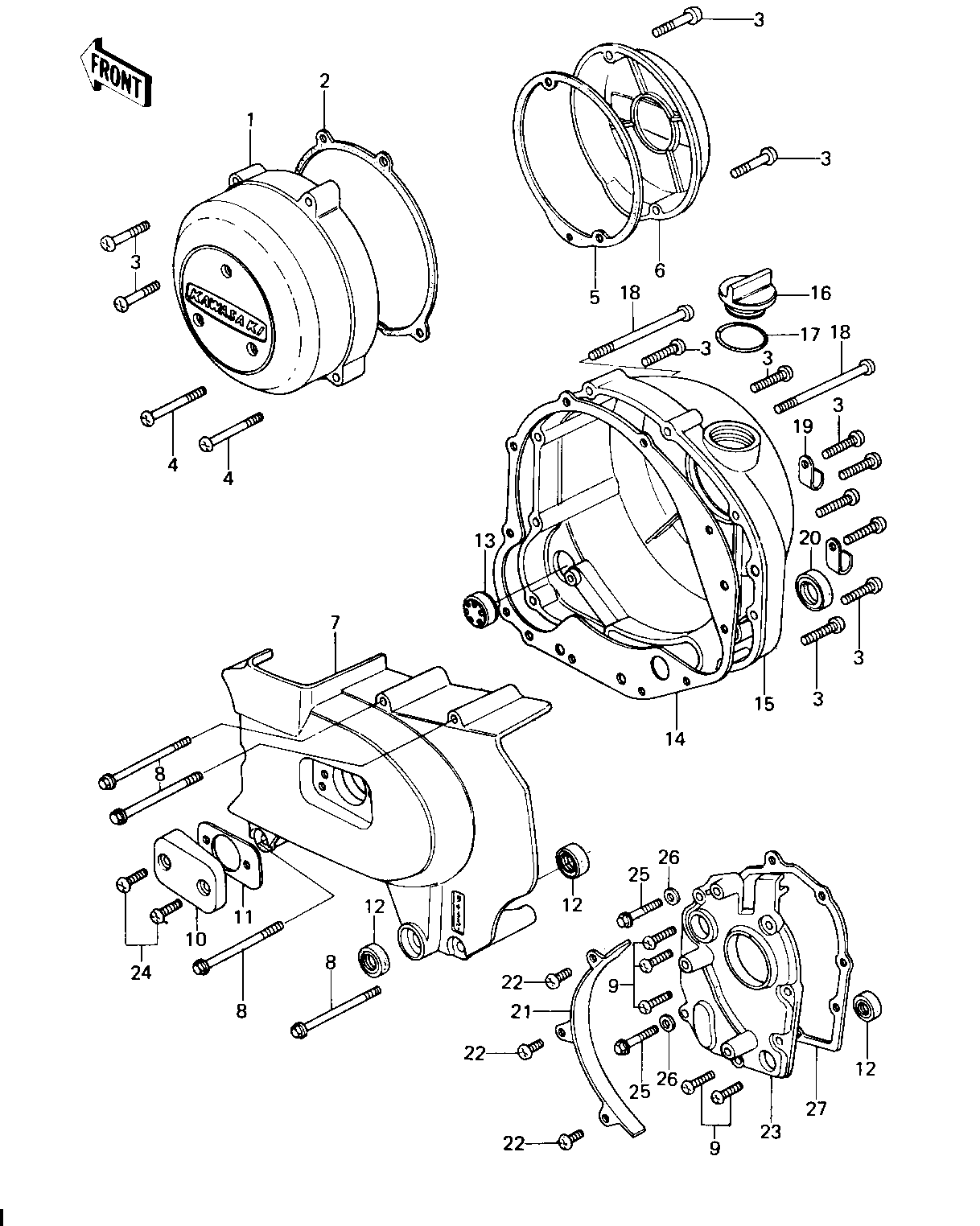

1978 Custom - ENGINE COVERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,DYNAMO 1 14031-1009-80 2 KZ50-C1
COVER,DYNAMO 1 14031-1009-80 2
COVER,GENERATOR,BUFF 1 14031-1028 2 KZ0-C2~
GASKET,L.H.ENG COVER 2 14045-029 2 KZ60-C1
GASKET,GENERATOR COV 2 11009-1987 2 KZ0-C2~
SCREW PAN HEAD 6X30 3 220B0630 2
SCREW PAN HEAD 6X70 4 220B0670 2 KZ0-C1
SCREW PAN HEAD 6X40 4 220B0640 2 KZ0-C2~
GASKET,PULSING COIL 5 11060-1053 2
CAP,BREAKER POINT,BU 6 11012-1035 2
COVER,ENG SPROCKT,BU 7 14026-035-80 2
BOLT-FLANGED,6X70 8 130G0670 2
SCREW PAN HEAD 6X20 9 220B0620 2
COVER,CLUTCH ADJUSTN 10 14028-006-80 2
GASKET,CLUTCH ADJ CA 11 14049-004 2
OIL SEAL,TB13225.5 12 92051-005 2
GAUGE,OIL LEVEL 13 52015-004 2
GASKET,R.H.ENG COVER 14 14046-035 2
COVER,R.H.ENG,BUFF F 15 14032-117-80 2
PLUG,OIL FILLER 16 16115-013 2
"0" RING,31MM 17 92055-049 2
SCREW PAN HEAD 6X80 18 220B0680 2
CLAMP,WIRING HARNESS 19 21126-008 2
OIL SEAL SB20285 20 92049-012 2
GUIDE,CHAIN 21 12053-1006 2
BOLT-UPSET 6X14 22 112B0614 2
COVER,MISSION 23 14024-011 2
SCREW PAN HEAD 6X18 24 220B0618 2
BOLT,HEX HEAD,6X35 25 92001-164 2
WASHER OIL PUMP BANJ 26 92022-077 2
GASKET,TRANSMISSION 27 11060-1056 2
