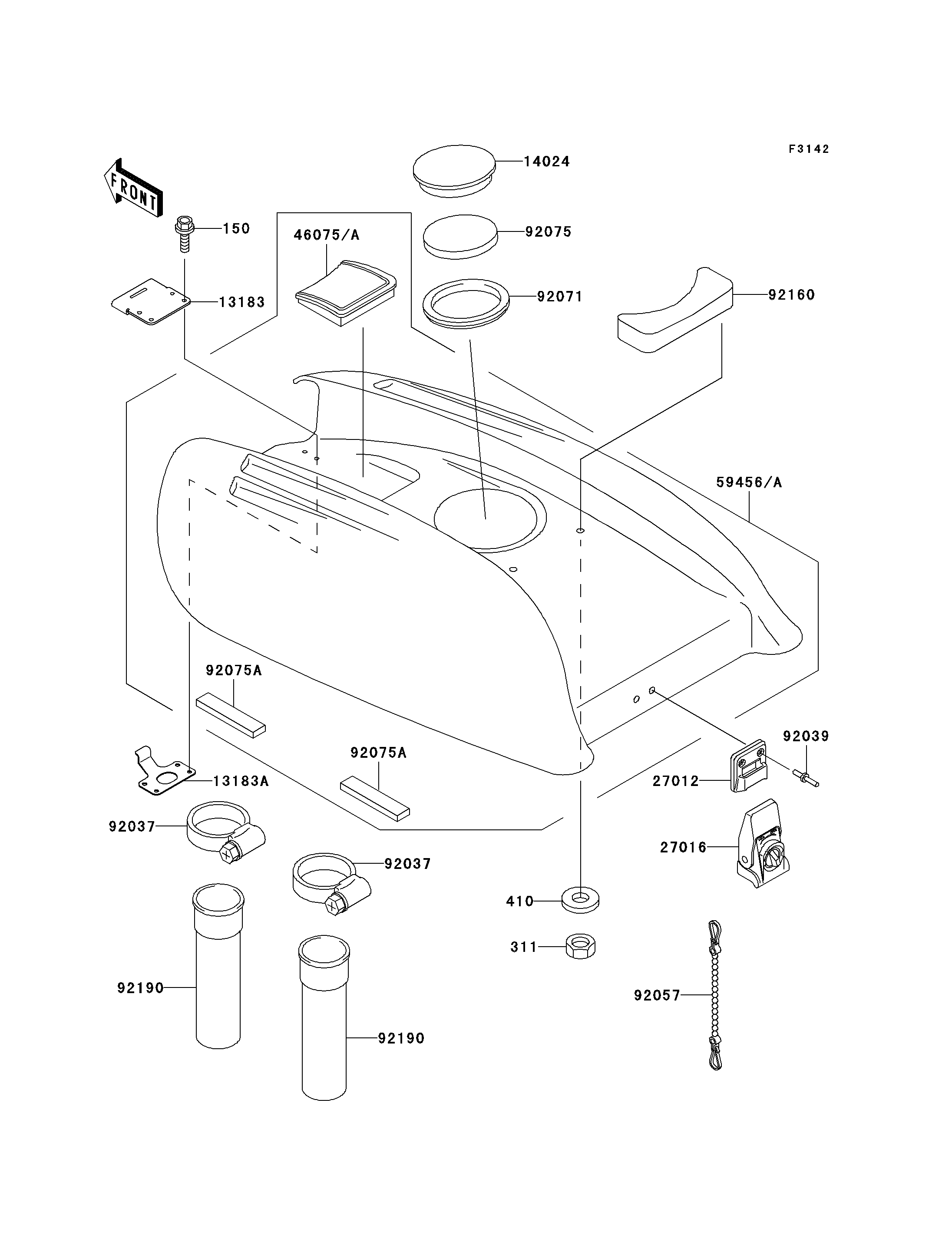

Parts Diagrams |
150
311
410
13183
13183A
14024
27012
27016
46075A
59456A
92037
92037
92039
92057
92071
92075
92075A
92075A
92160
92190
92190
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-WS,5X25 | 150 | 150R0525 | 4 | ||
NUT-HEX,5MM | 311 | 311R0500 | 2 | ||
W-PLAIN-S,5MM | 410 | 410S0500 | 2 | ||
PLATE,ENGINE HOOD | 13183 | 13183-3788 | 1 | ||
PLATE,ENGINE HOOD | 13183A | 13183-3789 | 1 | ||
COVER | 14024 | 14024-3748 | 1 | ||
HOOK,ENGINE HOOD LOCK | 27012 | 27012-3762 | 1 | ||
LOCK-ASSY,ENGINE HOOD | 27016 | 27016-3723 | 1 | ||
GRIP,ENGINE HOOD,J.WHITE | 46075A | 46075-3722-8C | 1 | ||
HOOD-COMP-ENGINE,J.WHITE | 59456A | 59456-3728-8C | 1 | ||
CLAMP | 92037 | 92037-3738 | 2 | ||
RIVET | 92039 | 92039-3750 | 2 | ||
CHAIN,COVER,L=100 | 92057 | 92057-3704 | 1 | ||
GROMMET | 92071 | 92071-3742 | 1 | ||
DAMPER | 92075 | 92075-3737 | 1 | ||
DAMPER | 92075A | 92075-3757 | 4 | ||
DAMPER | 92160 | 92160-3772 | 1 | ||
TUBE | 92190 | 92190-3824 | 2 |
BOLT-WS,5X25 | |
REF # | 150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT-HEX,5MM | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
W-PLAIN-S,5MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLATE,ENGINE HOOD | |
REF # | 13183 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,ENGINE HOOD | |
REF # | 13183A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOOK,ENGINE HOOD LOCK | |
REF # | 27012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LOCK-ASSY,ENGINE HOOD | |
REF # | 27016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP,ENGINE HOOD,J.WHITE | |
REF # | 46075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOOD-COMP-ENGINE,J.WHITE | |
REF # | 59456A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CHAIN,COVER,L=100 | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92190 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
