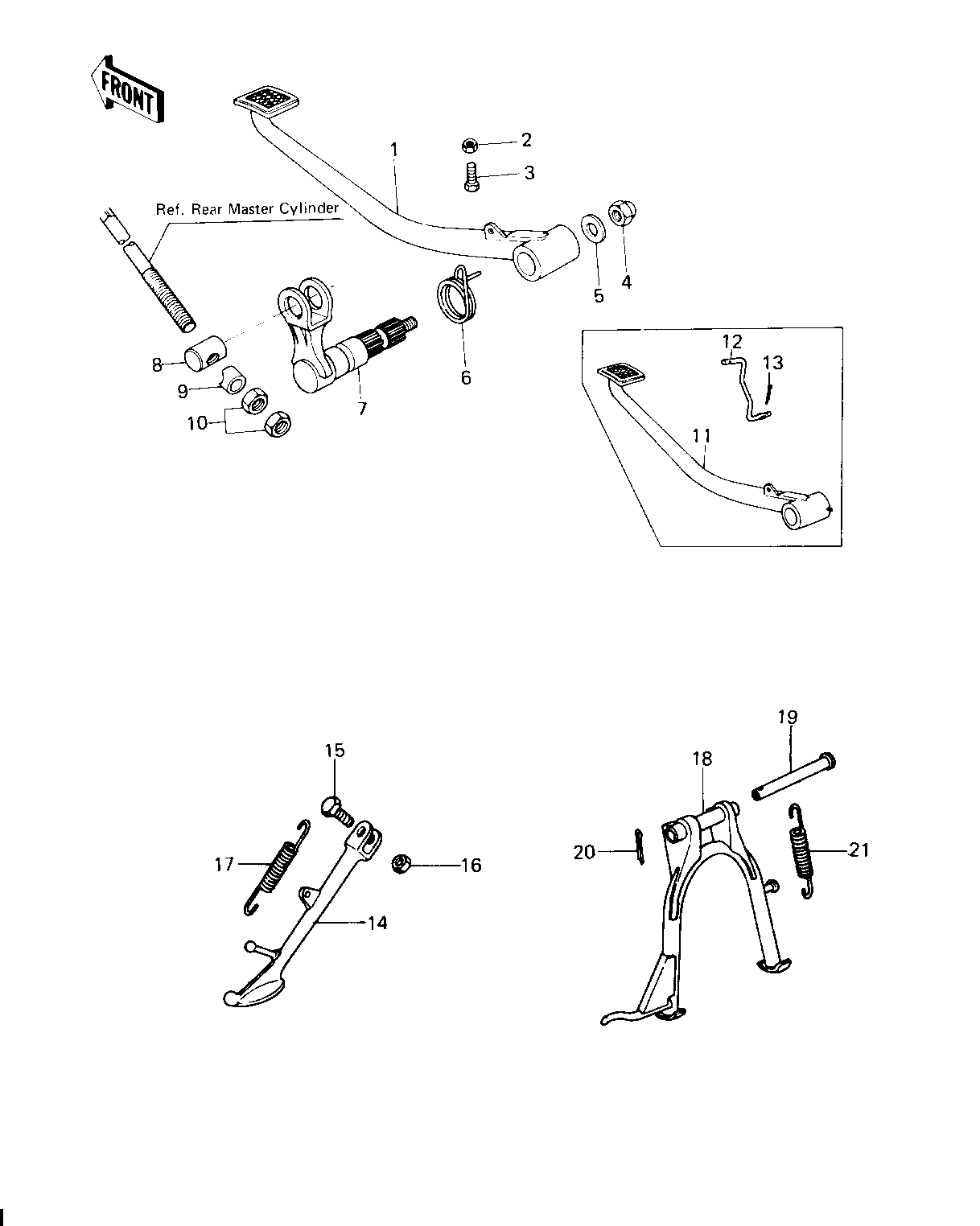

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PEDAL BRAKE | 1 | 43001-1009 | 1 | KZ650-C1/C2 | |
NUT 6MM | 2 | 311B0600 | 1 | ||
UNAVAILABLE IN PRICE BOOK | 3 | 110B6620 | 1 | ||
NUT,CAP AND LOCK,8MM | 4 | 92019-013 | 1 | ||
WASHER,8.5X20X1.6 | 5 | 92022-1561 | 1 | ||
SPRING,BRAKE PEDAL | 6 | 92081-1015 | 1 | ||
SHAFT,BRAKE PEDAL | 7 | 43004-1002 | 1 | ||
PIN,BRAKE ROD | 8 | 92043-1003 | 1 | ||
COLLAR,BRAKE ROD | 9 | 92027-1019 | 1 | ||
NUT 10MM | 10 | 315B1000 | 1 | ||
PEDAL BRAKE | 11 | 43001-1009 | 1 | KZ650-C3 | |
HOOK,BRAKE SWITCH | 12 | 27012-1003 | 1 | KZ650-C3 | |
PIN COTTER 1.6X10 | 13 | 550D1610 | 1 | KZ650-C3 | |
STAND-SIDE | 14 | 34024-1103 | 1 | ||
BOLT-SIDE STAND | 15 | 92003-079 | 1 | ||
NUT,10MM | 16 | 314B1000 | 1 | ||
SPRING,SIDE STAND | 17 | 34025-005 | 1 | ||
STAND-MAIN | 18 | 34011-1041 | 1 | ||
SHAFT,MAIN STAND | 19 | 34019-015 | 1 | ||
UNAVAILABLE IN PRICE BOOK | 20 | 580D3030 | 1 | ||
SPRING, MAIN STRAND | 21 | 34023-016 | 1 |
