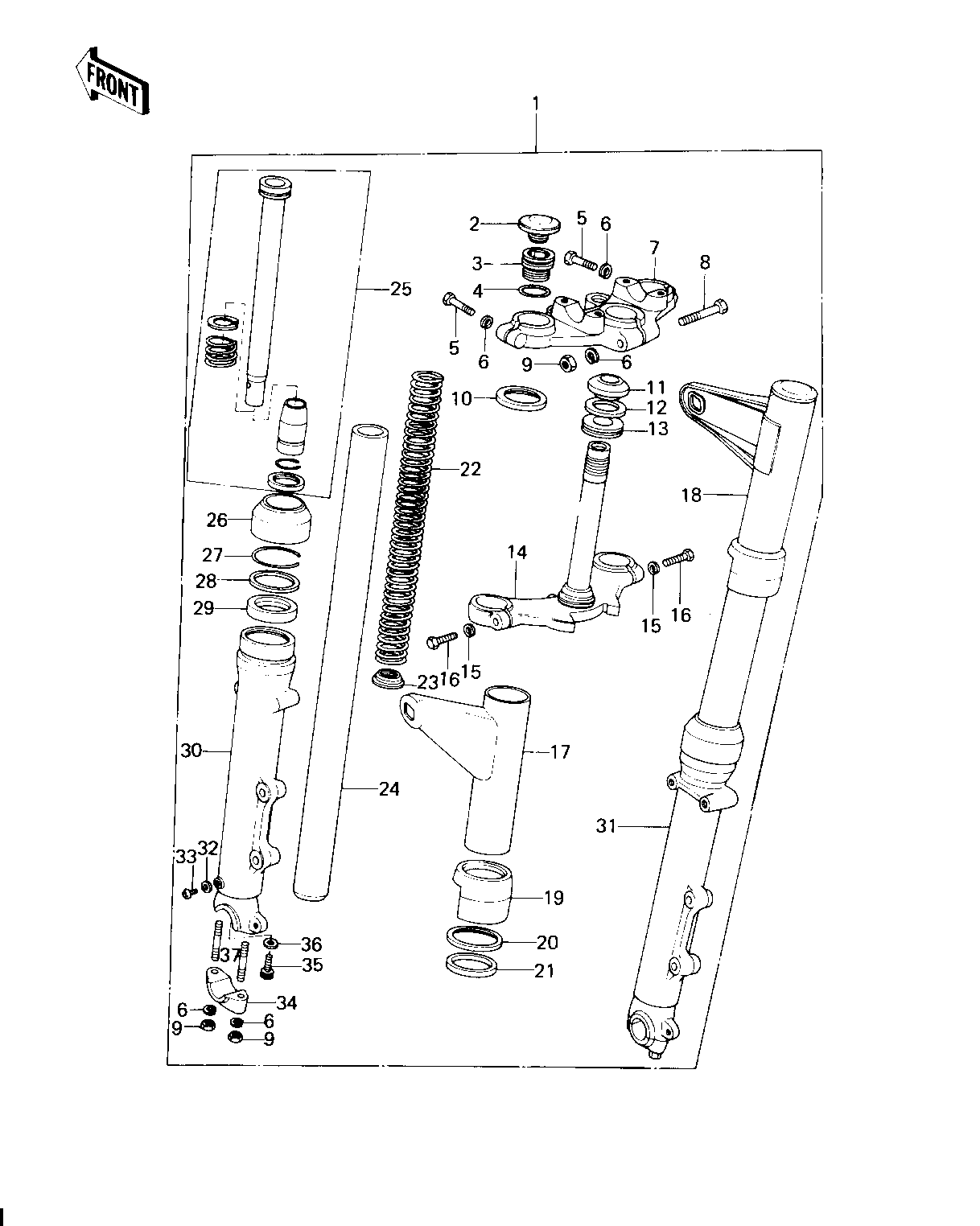

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1008 1
CAP,RUBBER 2 11012-1017 1
SEAT-FORK SPRING 3 44029-1046 1
"O" RING,FORK TOP 4 92055-1012 1
BOLT-HEX HEAD.8M/M 5 44041-045 1
WASHER SPRING 8MM 6 461F0800 1
HEAD,STEERING STEM 7 44039-076 1
BOLT-STEERING STEM H 8 44041-042 1
NUT,LOCK,8MM 9 92015-1124 1
WASHER,FORK COVER 10 44064-005 1
CONE,STEERING STEM 11 92047-012 1
WASHER,PLAIN 12 92022-231 1
OIL SEAL,STEERING ST 13 92056-003 1
STEM,STEERING 14 44037-107 1
WASHER SPRING 12MM 15 461F1200 1
BOLT-HEX HEAD,12X36 16 92003-064 1
COVER,L.H.-FORK 17 44033-1017 1
COVER,R.H,FORK 18 44033-1018 1
GUIDE,FORK COVER 19 44064-025 1
WASHER,FORK COU GUID 20 44064-008 1
GASKET,FORK COVER 21 44045-038 1
SPRING,FORK 22 44026-1006 1
GUIDE,FORK SPRING 23 44028-1001 1
TUBE,FORK INNER 24 44013-1005 1
CYLINDER-FORK 25 44022-1004 1
DUST SHEILD,FORK 26 44010-032 1
CIRCLIP-OIL SEAL FIT 27 44044-012 1
WASHER-OIL SEAL FIT 28 44043-044 1
OIL SEAL,FORK 29 44009-024 1
TUBE,LH,FORK OUTER 30 44005-1034 1
TUBE,RH,FORK OUTER 31 44006-1034 1
GASKET FORK DRAIN PL 32 44045-002 1
SCREW PAN HEAD 4X8 33 220B0408 1
HOLDER,FRONT AXLE 34 44063-014 1
BOLT-FORK CYLINDER 35 44041-040 1
GASKET,FORK CYLINDER 36 44045-057 1
STUD,8X35 37 92004-1009 1
