Parts Diagrams |

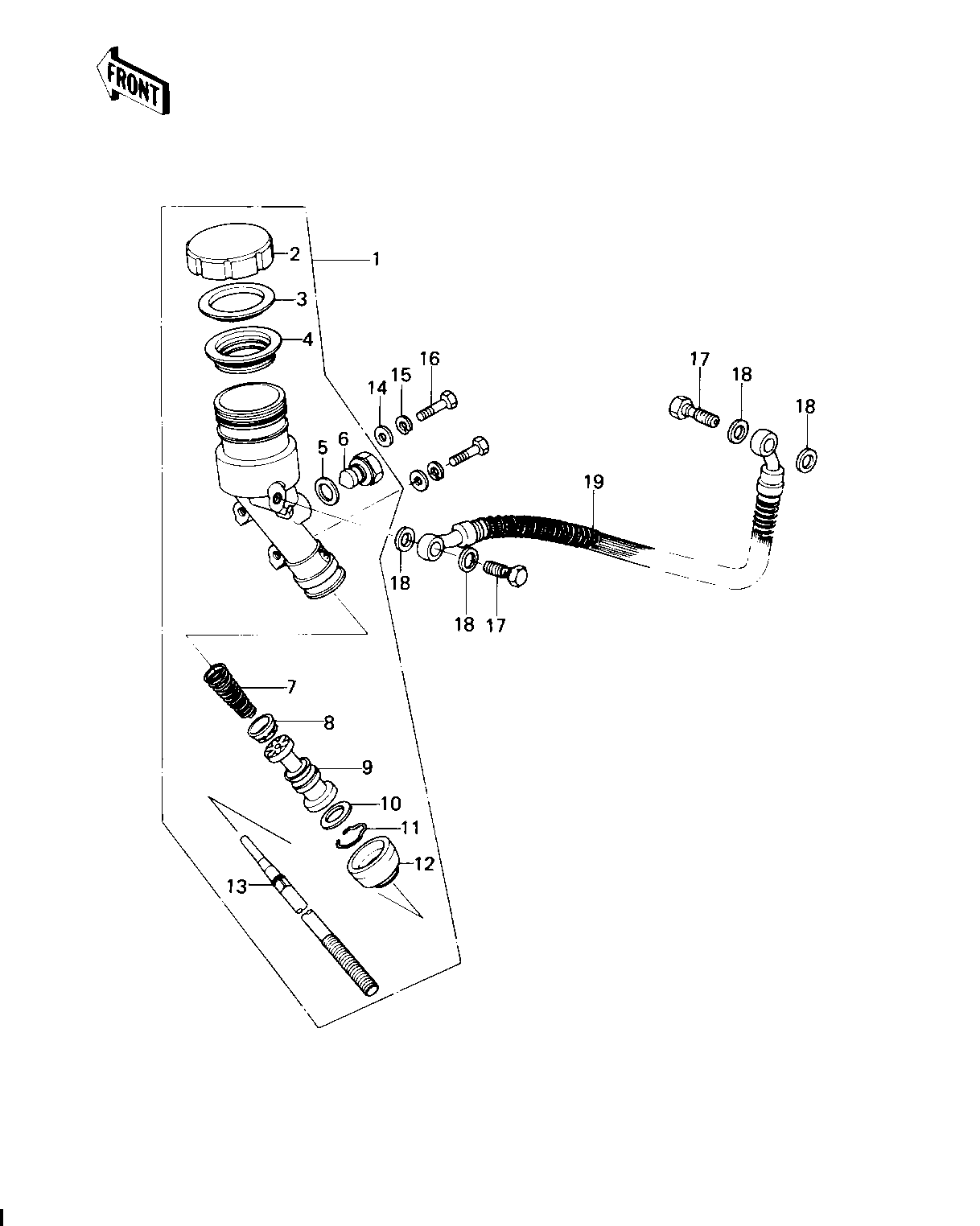

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CYLINDER ASSY,RR MST | 1 | 43015-1004 | 1 | ||
CYLINDER ASSY,M.REAR | 1 | 43015-1005 | 1 | KZ650-C2~ | |
CAP,OIL CUP | 2 | 43026-004 | 1 | ||
PLATE-MASTER CYLINDE | 3 | 43027-001 | 1 | ||
DIAPHRAGM | 4 | 43028-003 | 1 | ||
'O'RING | 5 | 43079-002 | 1 | ||
BOLT | 6 | 92001-1073 | 1 | ||
CUP-PRIMARY | 7 | 43019-001 | 1 | ||
CUP-PRIMARY | 8 | 43019-001 | 1 | ||
PISTON ASSY | 9 | 43020-1004 | 1 | ||
PISTON ASSY | 9 | 43020-1007 | 1 | ||
STOPPER,PISTON | 10 | 43022-002 | 1 | ||
UNAVAILABLE IN PRICE BOOK | 11 | 43068-004 | 1 | ||
DUST COVER | 12 | 43024-003 | 1 | ||
ROD,BRAKE | 13 | 43011-1004 | 1 | ||
WASHER PLAIN 6MM | 14 | 411B0600 | 1 | ||
WASHER SPRING 6MM | 15 | 461F0600 | 1 | ||
BOLT-SMALL-UPSET,8X3 | 16 | 115G0830 | 1 | ||
BOLT,OIL,L=23 | 17 | 92002-1888 | 1 | ||
WASHER-OIL BOLT | 18 | 43067-001 | 1 | ||
UNAVAILABLE IN PRICE BOOK | 19 | 43069-1006 | 1 | L = 520 M/M |
CYLINDER ASSY,RR MST | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER ASSY,M.REAR | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ650-C2~ |
CAP,OIL CUP | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-MASTER CYLINDE | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
'O'RING | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CUP-PRIMARY | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CUP-PRIMARY | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON ASSY | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON ASSY | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER,PISTON | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
UNAVAILABLE IN PRICE BOOK | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUST COVER | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,BRAKE | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-SMALL-UPSET,8X3 | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,OIL,L=23 | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-OIL BOLT | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
UNAVAILABLE IN PRICE BOOK | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | L = 520 M/M |
