Parts Diagrams |

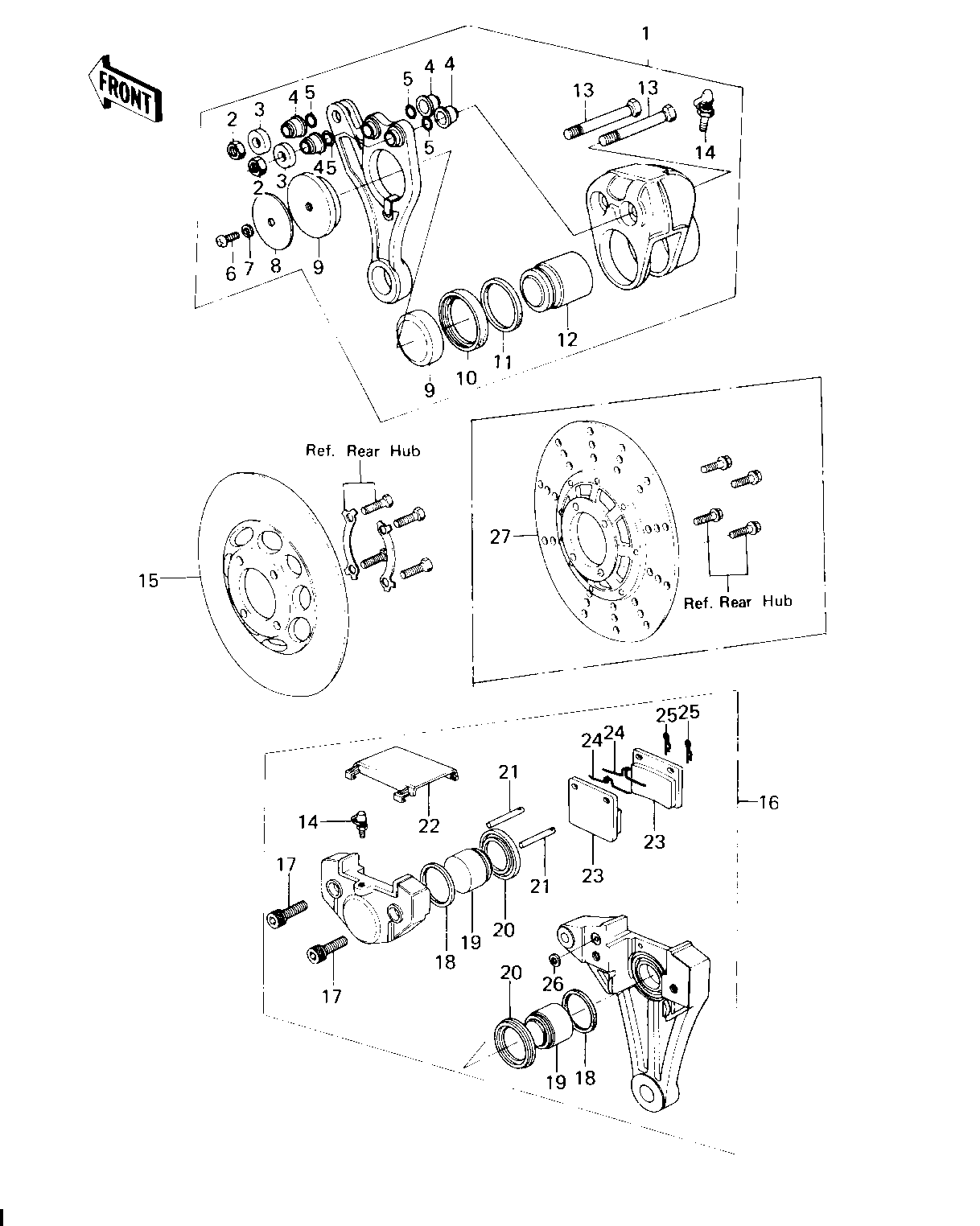

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CALIPER ASSY,REAR | 1 | 43041-1004 | 1 | F/NO 000001~023100 | |
| UNAVAILABLE IN PRICE BOOK | 2 | 31581000 | 1 | ||
| PLUG | 3 | 43088-002 | 1 | ||
| DUST SHILD,SHAFT | 4 | 43052-005 | 1 | ||
| "O" RING | 5 | 43053-005 | 1 | ||
| SCREW PAN HEAD 6X12 | 6 | 220B0612 | 1 | ||
| WASHER SPRING 8MM | 7 | 461F0800 | 1 | USE FOR 43041 1004 | |
| SPACER | 8 | 43040-004 | 1 | USE FOR 43041 1004 | |
| PAD SET,(REAR) | 9 | 43050-5002 | 1 | ||
| DUST SEALD,RUBBER | 10 | 43054-003 | 1 | ||
| RING,PISTON SEAL | 11 | 43049-002 | 1 | ||
| PISTON,FRONT CALIPER | 12 | 43048-009 | 1 | ||
| BOLT | 13 | 43045-006 | 1 | ||
| BLEEDER SET | 14 | 43085-001 | 1 | ||
| PLATE,REAR DISC | 15 | 41080-008 | 1 | F/NO 000001~023100 | |
| CALIPER ASSY,REAR | 16 | 43041-1023 | 1 | F/NO 023101~ | |
| BOLT,TIE,10X45 | 17 | 92001-1071 | 1 | ||
| RING,PISTON SEAL | 18 | 43049-002 | 1 | ||
| PISTON,BRAKE | 19 | 43020-1011 | 1 | ||
| DUST SEAL,PISTON | 20 | 43054-004 | 1 | ||
| PIN | 21 | 43045-007 | 1 | USE FOR 43041-1023 | |
| CAP | 22 | 43024-004 | 1 | USE FOR 43041-1023 | |
| PAD SET | 23 | 43082-1002 | 1 | ||
| SPRING | 24 | 43086-002 | 1 | ||
| CLIP | 25 | 43084-003 | 1 | ||
| RING,SEAL6.5X11.5X2. | 26 | 43049-1004 | 1 | ||
| DISC PLATE,REAR | 27 | 41080-1021 | 1 | F/NO 023101~ |
| CALIPER ASSY,REAR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO 000001~023100 |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST SHILD,SHAFT | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 43041 1004 |
| SPACER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 43041 1004 |
| PAD SET,(REAR) | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST SEALD,RUBBER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,PISTON SEAL | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON,FRONT CALIPER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BLEEDER SET | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,REAR DISC | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO 000001~023100 |
| CALIPER ASSY,REAR | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO 023101~ |
| BOLT,TIE,10X45 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,PISTON SEAL | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON,BRAKE | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST SEAL,PISTON | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 43041-1023 |
| CAP | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 43041-1023 |
| PAD SET | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLIP | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,SEAL6.5X11.5X2. | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DISC PLATE,REAR | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO 023101~ |
