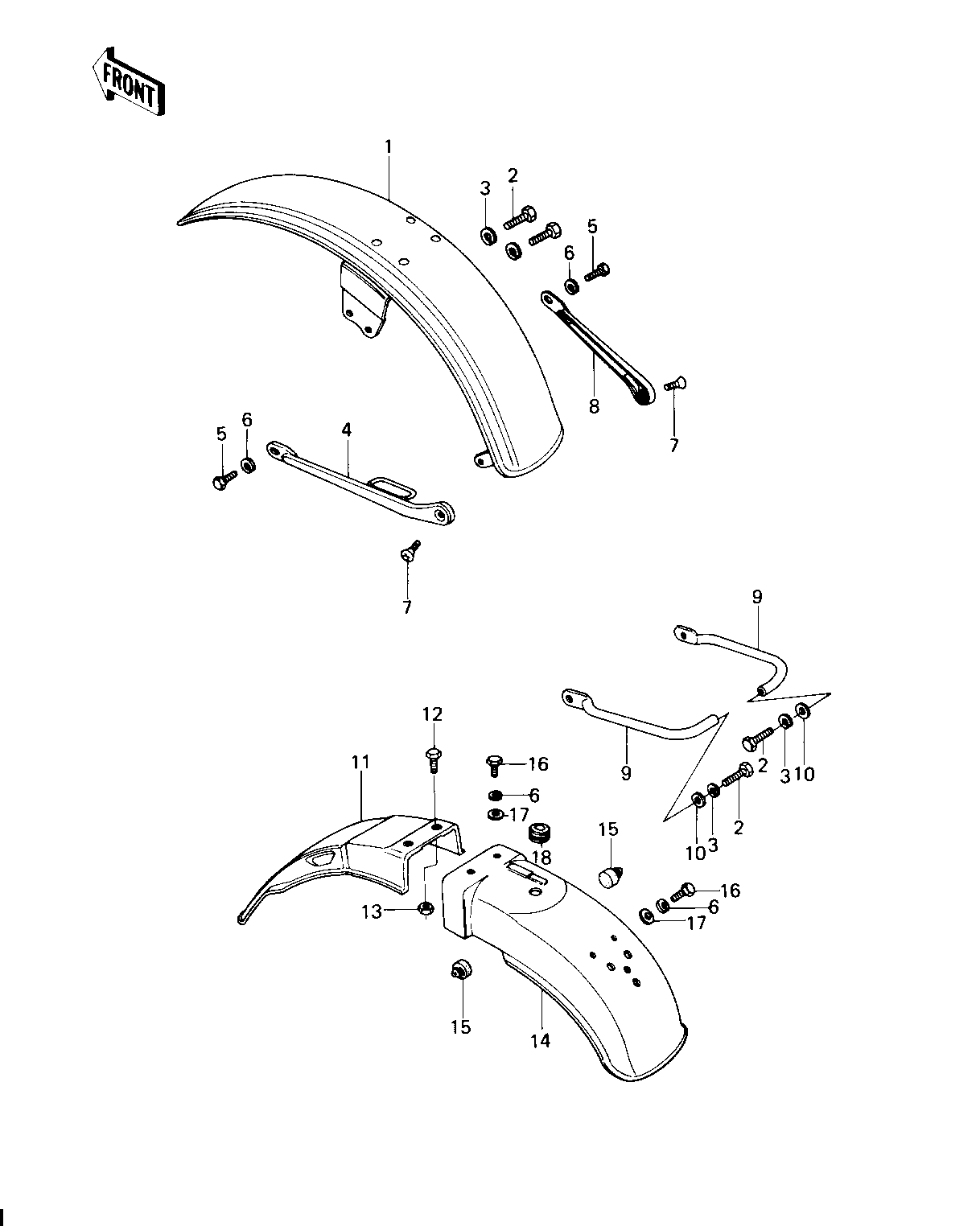

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
1 36001-025 1
BOLT HEX HEAD 6X16 2 110B0616 1
WASHER SPRING 8MM 3 461F0800 1
STAY,FRONT FENDER,L.H 4 35011-1001 1
BOLT HEX HEAD 6X12 5 110B0612 1
WASHER SPRING 6MM 6 461F0600 1
SCREW,OVL CNTSNK,6X16 7 222E0616 1
STAY,FRONT FENDER,R.H 8 35011-1002 1
GRIP,FRAME 9 32109-016 1
WASHER PLAIN 8MM 10 410B0800 1
FENDER-RR 11 35022-1001 1
BOLT HEX HEAD 6X16 12 110B0616 1
NUT,LOCK 6MM 13 92017-014 1
FENDER-RR 14 35022-153 1
DAMPER RUBBER,RR FEND 15 92075-135 1
BOLT HEX HD 6X14 16 110B0614 1
WASHER PLAIN 6MM 17 410B0600 1
GROMMET HARNESS 10MM 18 92071-019 1
