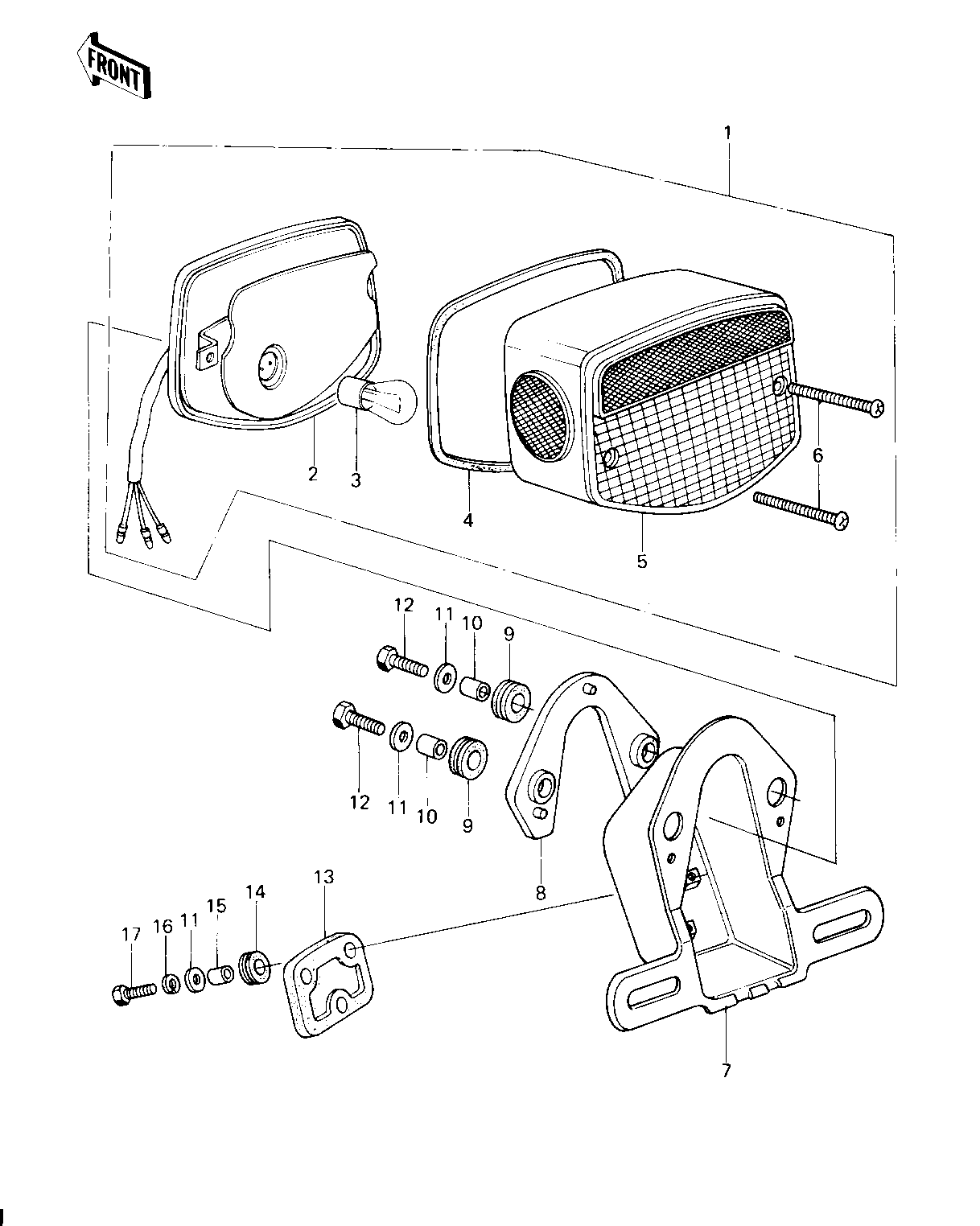

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TAIL LAMP UNIT 1 23025-064 1 "220-40781" MARK
CASE,TAIL LIGHT 2 23027-041 1
BULB,12V 32/3CP 3 92069-059 1
GASKET,TAIL LENS 4 23028-021 1
LENS,TAIL LAMP 5 23026-034 1
SCREW-PAN-CROS 6 220R0460 1
BRACKET,LICENSE PLAT 7 23036-051 1 "220-40806" MARK
DAMPER RUBBER 8 23066-023 1
DAMPER RUBBER 9 23066-020 1
COLLAR,6.8X10X8.5 10 92027-129 1
WASHER 6.5X20X1.6T 11 92022-125 1
BOLT-UPSET 12 112G0618 1
DAMPER RUBBER,RR FEN 13 35039-004 1
DAMPER RUBBER,RR FEN 14 92075-121 1
COLLAR 6.8X10X14.5 15 92027-156 1
WASHER SPRING 6MM 16 461F0600 1
BOLT-UPSET 17 112G0625 1
