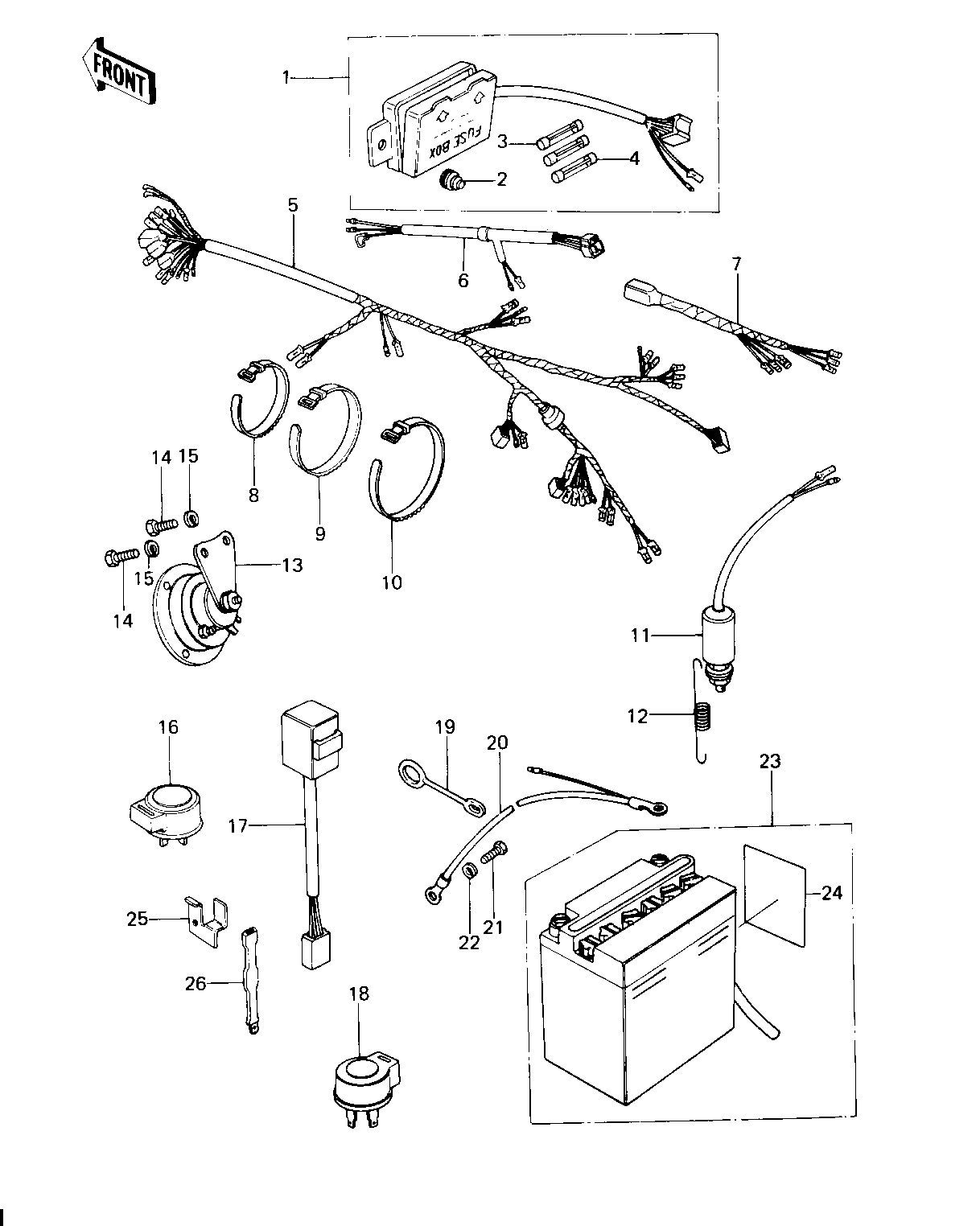

1978 Custom - CHASSIS ELECTRICAL EQUIPMENT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FUSE ASSY 1 26004-035 1 KZ650-C1
FUSE ASSY 1 26004-1002 1 KZ650-C2
DAMPER RUBBER,FUSE 2 92075-279 1
FUSE-20A 3 26006-005 1
FUSE 10A 4 26006-003 1
WIRING HARNESS,MAIN 5 26001-1008 1 KZ650-C1
HARNESS,MAIN 5 26001-1025 1 KZ650-C2
HARNESS,MAIN 5 26001-1131 1 KZ650-C3
HARNESS,CENTER 6 26001-1022 1 KZ650-C2
WIRING HARNESS,REAR 7 26002-063 1
BAND,SHORT 8 92072-030 1 KZ650-C1/C2
BAND,SHORT 8 92072-030 1 KZ650-C3
BAND,MIDDLE 9 92072-031 1
BAND,WIRING HARNESS 10 92072-056 1
SWITCH-BRAKE LAMP 11 27010-017 1
SPRING-BRAKE LAMP SW 12 27011-011 1 KZ650-C1/C2
SPRING BRAKE LAMP SW 12 27011-009 1 KZ650-C1/C2
HORN 13 27003-076 1
BOLT-SMALL-UPSET,8X1 14 115G0816 1
WASHER SPRING 8MM 15 461F0800 1
RELAY,TURN SIGNAL 16 27002-016 1
SWITCH,OUTAGE,INDICT 17 28019-001 1
RELAY-TURN SIGNAL 18 27002-011 1
CLAMP,OVER FLOW PIPE 19 92037-134 1
WIRE,BATTERY GROUND 20 26010-049 1
BOLT,HEX HEAD,6MM 21 92001-137 1
WASHER SPRING 6MM 22 461F0600 1
YUA BAT YB10L-A2 23 26012-041 1
BATTERY 12V11AH W/LA 23 26012-1010 1
LABEL-WARNING,BATTER 24 56040-1036 1
BRACKET,HAZARD RELAY 25 11034-1108 1 KZ650-C1
REGULATOR 26 21066-026 1 KZ650-C1
