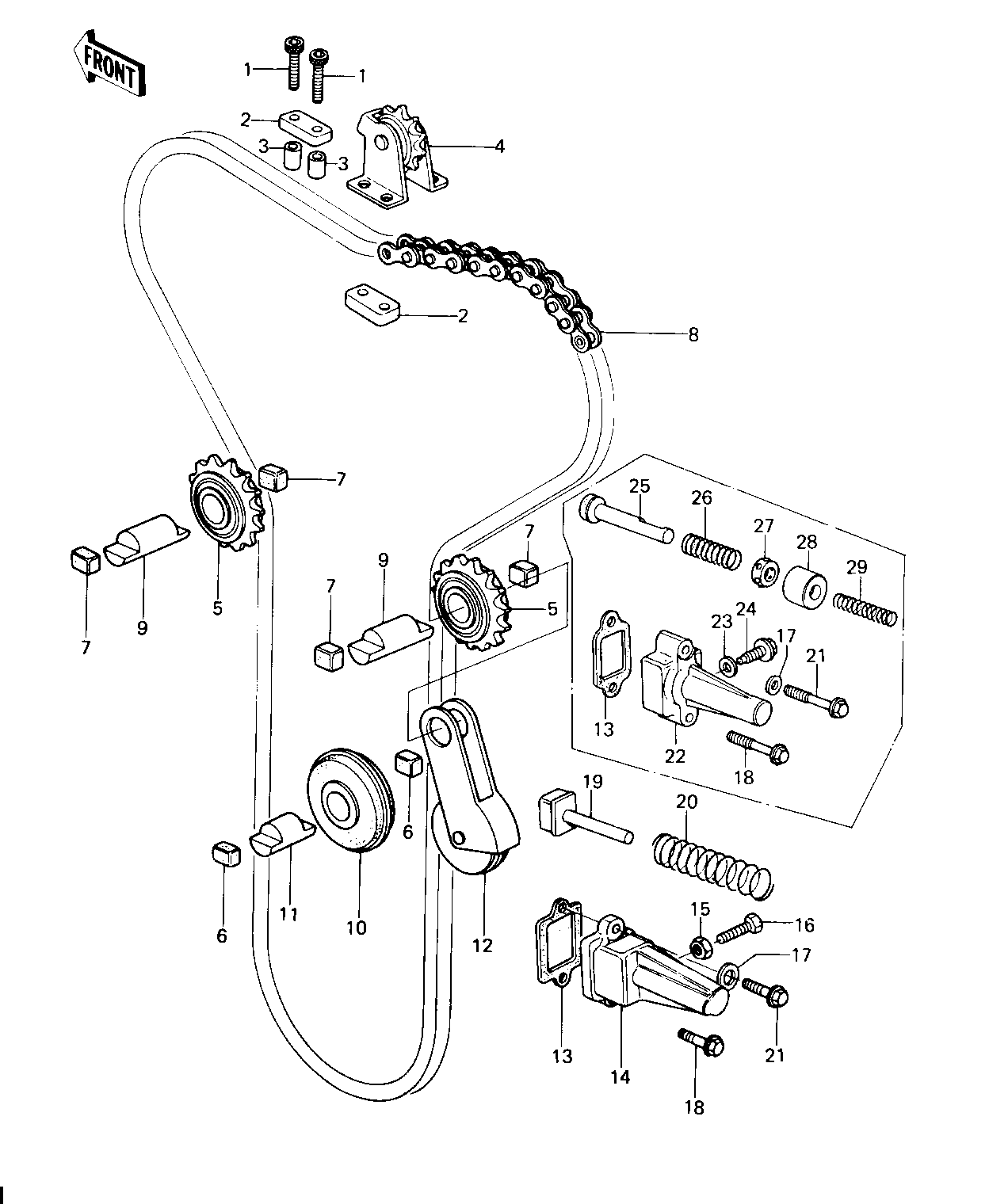

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT,ALLEN,6X32 | 1 | 120Q0632 | 4 | ||
DAMPER RUBBER | 2 | 92075-289 | 4 | ||
COLLAR,8X15 | 3 | 92027-1079 | 4 | ||
IDLER ASSY,CAM CHAIN | 4 | 12053-1013 | 1 | ||
IDLER ASSY,CAM CHAIN | 5 | 12053-1012 | 2 | ||
DAMPER RUBBER | 6 | 92075-123 | 2 | ||
RUBBER,GUIDE ROLLAR | 7 | 92075-232 | 4 | ||
CHAIN,CAM | 8 | 21070-012 | 1 | ||
SHAFT,GUIDE ROLLER | 9 | 12052-005 | 2 | ||
ROLLER,CAM CHN GUIDE | 10 | 12055-004 | 1 | ||
SHAFT,CAM CHAIN GUIDE | 11 | 12052-003 | 1 | ||
TENSIONER,CAM CHAIN | 12 | 12048-015 | 1 | ||
GASKET,TENSIONER | 13 | 11009-1980 | 1 | ||
HOLDER,TENSIONER | 14 | 12049-1003 | 1 | KZ650 | |
NUT 6MM | 15 | 311B0600 | 1 | KZ650 | |
BOLT,TENSIONER ADJUST | 16 | 92003-093 | 1 | KZ650 | |
WASHER OIL PUMP BANJO | 17 | 92022-077 | 1 | ||
BOLT,FLANGED,6X30 | 18 | 130G0630 | 1 | ||
PUSH ROD,CAM CHAIN | 19 | 12054-001 | 1 | KZ650 | |
SPRING,TENSTIONER | 20 | 92081-107 | 1 | KZ650 | |
BOLT,FLANGED,6X35 | 21 | 130H0635 | 1 | ||
TENSIONER KIT | 22 | 99996-1021 | 1 | KZ650 | |
WASHER OIL PUMP BANJO | 23 | 92022-077 | 1 | KZ650 | |
BELT,TENSIONER ADJUST | 24 | 92001-1155 | 1 | KZ650 | |
ROD ASSY,PUSH | 25 | 13116-1008 | 1 | KZ650 | |
SPRING,TENSIONER | 26 | 92081-1068 | 1 | KZ650 | |
RETAINER | 27 | 14020-1002 | 1 | KZ650 | |
COLLAR, TENSIONER | 28 | 92027-1102 | 1 | KZ650 | |
SPRING | 29 | 92081-146 | 1 | KZ650 |
