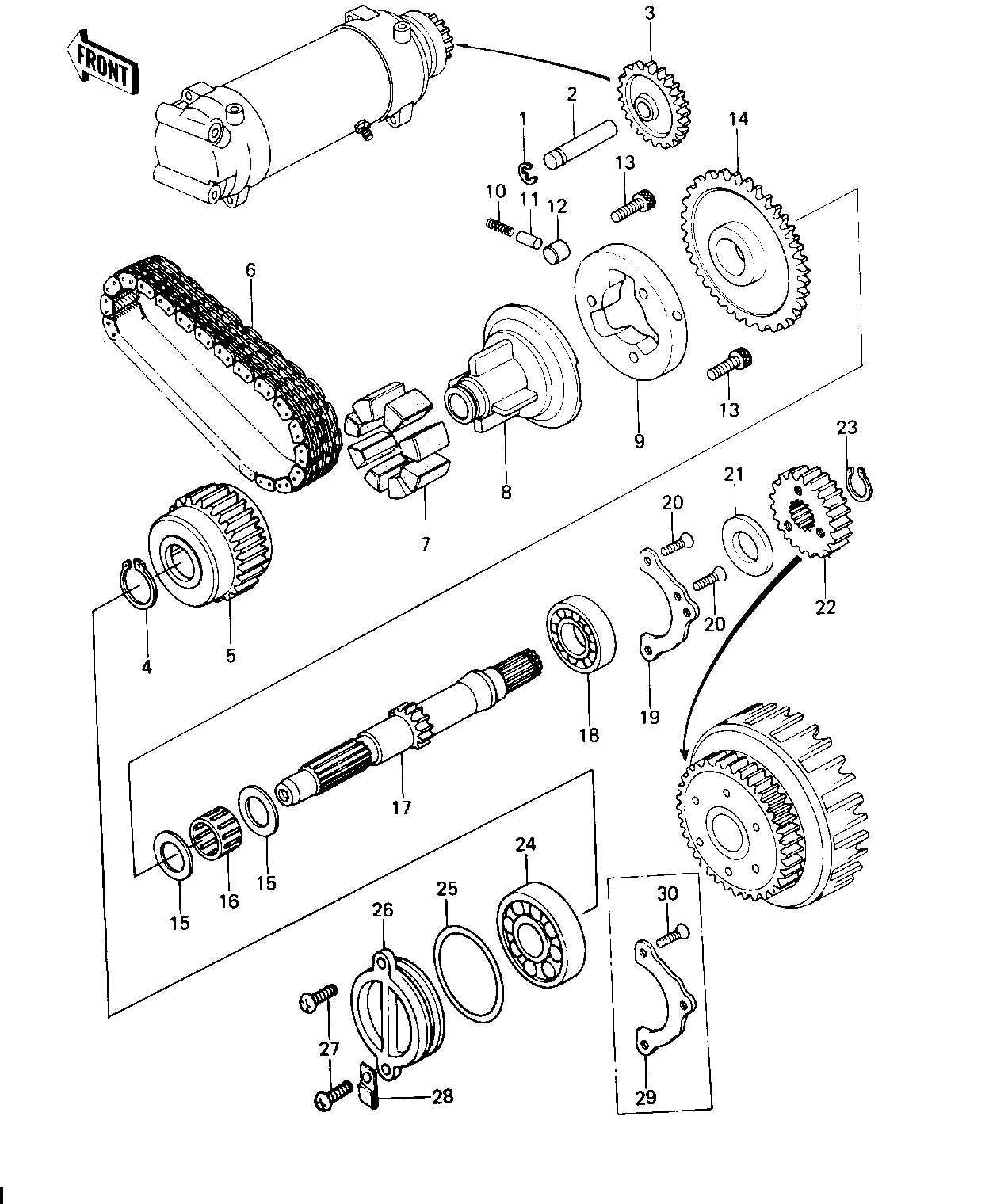

1979 SR - SECONDARY SHAFT/STARTER CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 12MM 1 482K0200 1
SHAFT,IDLE GEAR 2 21143-003 1
GEAR,IDLE,29T 3 21167-004 1
CIRCLIP 28MM 4 480J2800 1
COUPLING,OUTER 5 13252-001 1
CHAIN,PRIMARY 52L 6 13122-007 1
DAMPER RUBBER 7 13098-029 8
COUPLING,INNER 8 13253-001 1
CLUTCH-ASSY-ONEWAY 9 13193-1012 1
SPRING 10 92081-110 3
PIN 11 92043-087 3
ROLLER 12 92122-004 3
BOLT,SOCKET,8X12 13 120P0812 3
SPROCKET,STARTER,58T 14 12046-1032 1
SPACER,STARTER CLUTCH 15 92026-117 2
BRG,NEEDLE,K253017 16 92046-056 1
SHAFT,SECONDARY 17 13127-054 1
BEARING BALL #6305 18 601B6305 1
PLATE,POSITIONING 19 14014-1007 1 KZ650
SCREW CNTSNK HD 6X20 20 221B0620 2 KZ650
COLLAR,T=5MM 21 92027-263 1
GEAR,2ND SHAFT,29T 22 13121-037 1
CIRCLIP,22MM 23 480J2200 1
BEARING BALL #6304 24 601B6304 1
"0" RING,46MM 25 670B3046 1
PLUG,SECONDARY SHAFT 26 92066-1019 1
SCREW PAN HEAD 6X20 27 220B0620 2
CLAMP,WIRING HARNESS 28 21126-008 1
PLATE,POSITIONING 29 14014-1007 1 KZ650-D2
SCREW CNTSNK HD 6X20 30 221B0620 1 KZ650-D2
