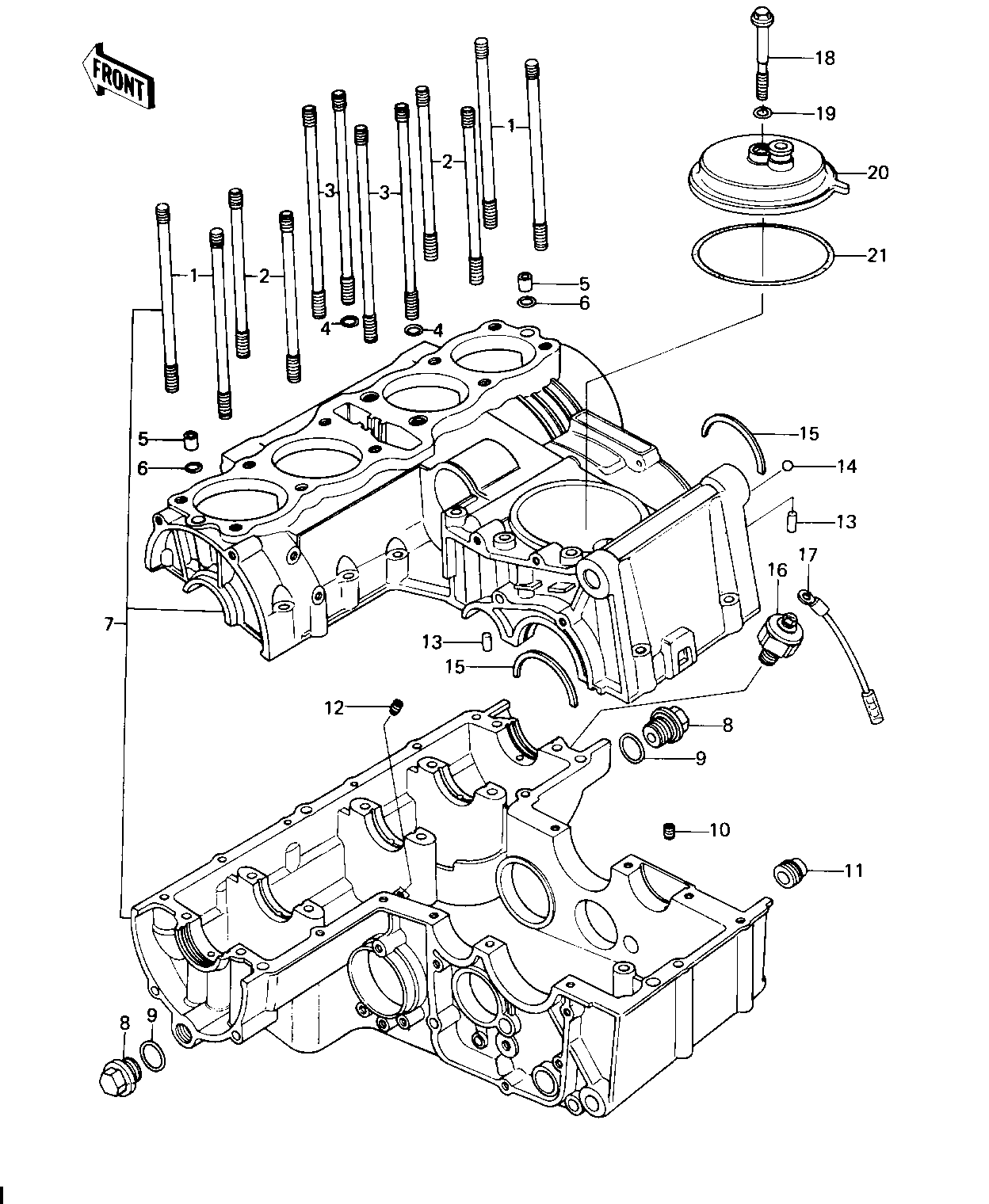

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
STUD,10X133 | 1 | 92004-1004 | 4 | ||
STUD,10X116 | 2 | 92004-1007 | 4 | ||
STUD,10X153 | 3 | 92004-062 | 4 | ||
"O" RING,8.8MM | 4 | 92055-099 | 2 | ||
NOZZLE | 5 | 92062-016 | 2 | ||
O RING | 6 | 670D2010 | 2 | ||
CRANKCASE SET | 7 | 14001-5046 | 1 | INCLUDES REF. NO'S MARKED * | |
PLUG | 8 | 92066-066 | 2 | ||
RING-O | 9 | 92055-1146 | 1 | ||
NOZZLE | 10 | 92062-015 | 1 | ||
NOZZLE | 11 | 92062-014 | 1 | ||
NOZZLE,OIL BIAS | 12 | 92062-011 | 1 | ||
PIN DOWEL 6MM | 13 | 92042-016 | 2 | ||
PLUG | 14 | 92066-057 | 1 | ||
RING BEARING SETTING | 15 | 14013-004 | 2 | ||
SWITCH ASY,OIL PRSSUR | 16 | 16144-006 | 1 | ||
WIRE,LEAD,OIL SWITCH | 17 | 26011-1011 | 1 | KZ650-D1/D1A | |
BOLT,HEX HEAD,8X72 | 18 | 92003-107 | 1 | ||
"O" RING,8MM | 19 | 670B1508 | 1 | ||
BODY-BREATHER | 20 | 14070-1008 | 1 | ||
"O" RING,91MM | 21 | 92055-052 | 1 |
