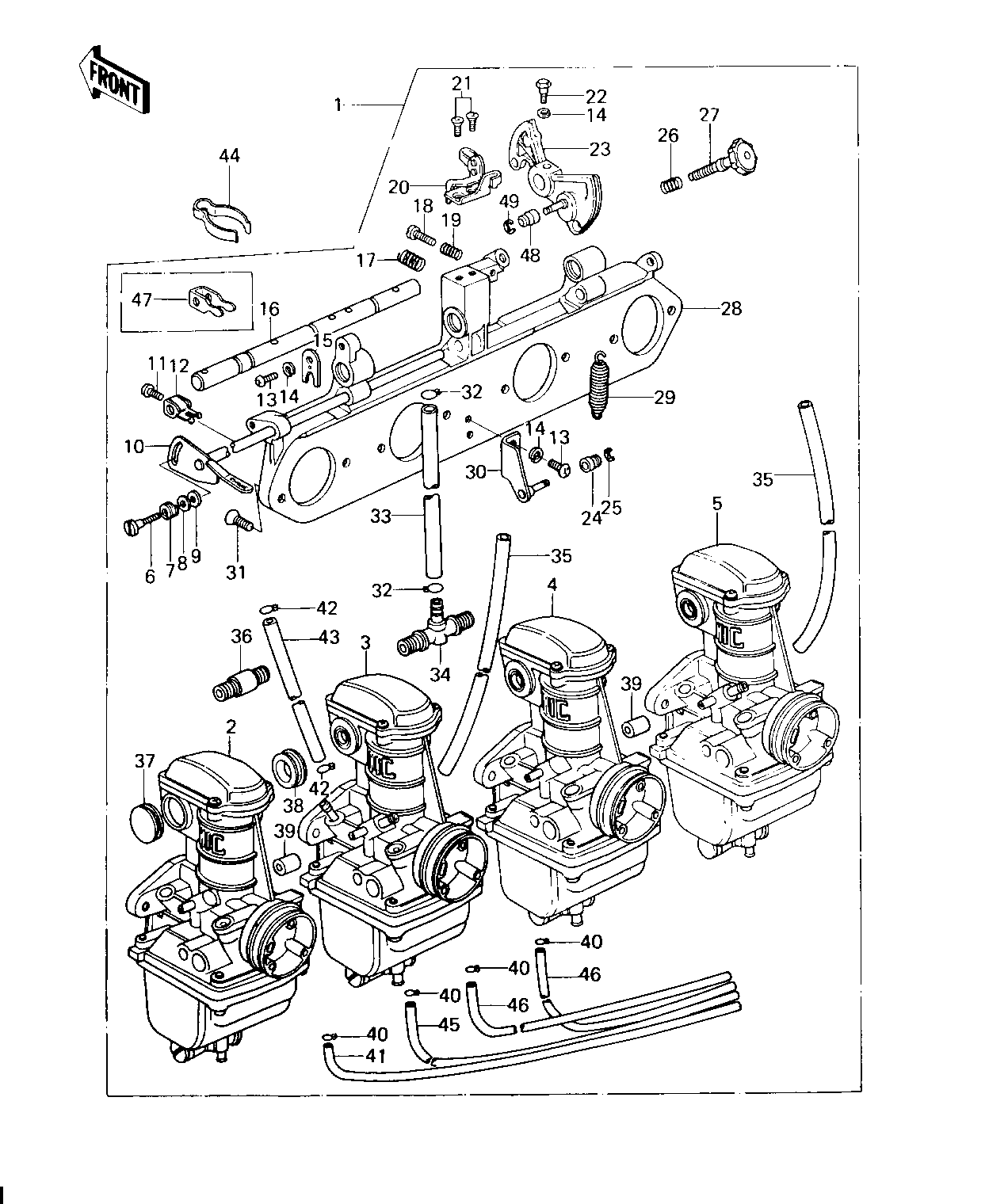

1979 SR - CARBURETOR ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR,L.H,OUT 2 16001-1070 1
CARBURETOR,L.H,INSIDE 3 16001-1071 1
CARBURETOR,R.H,INSIDE 4 16001-1072 1
CARBURETOR,R.H,OUT 5 16001-1073 1
SCREW 6 16046-005 1
SPRING,F 7 16040-009 1
WASHER PLAIN 5MM 8 410B0500 1
WASHER,PLAIN 9 16039-019 1
SHAFT,STARTER PLUNGER 10 16041-021 1
SCREW,PAN HEAD,5X7 11 16046-007 4
LEVER,STARTER PLUNGER 12 13168-1026 4
SCREW-PAN-CROS 13 220B0514 3
WASHER SPRING 5MM 14 461F0500 4
PLATE,SHAFT STOPPER 15 16055-012 1
SHAFT,CARB CONNECTION 16 16041-017 1
SPRING,CABLE PULLY 17 16040-022 1
SCREW 18 16021-032 1
SPRING,THROTTLE ADJST 19 16022-010 1
BRACKET,THROTTLE CABL 20 16077-017 1
SCREW CNTSNK HD 5X10 21 221B0510A 2
BOLT,HEX HEAD,5X14 22 16067-006 1
PULLEY,THROTTLE CABLE 23 16068-015 1
RING 24 16073-016 1
CIRCLIP 3MM 25 482K3000 1
SPRING,THROTTLE STOP 26 16022-017 1
SCREW,THROTTLE STOP 27 16021-1010 1
HOLDER,CARBURETOR 28 16065-049 1
SPRING,THROTTLE PULLY 29 92081-1028 1
BRACKET,THROTTLE CABL 30 16077-016 1
SCREW,6X14 31 16033-029 8
CLAMP,CARB CONECT HOS 32 92037-056 2
TUBE,5.8X10.8X180 33 92059-1443 1
HOSE,FEL,6.5X11.5X160 33 92059-1044 1
FITTING 34 92005-1010 1
HOSE,AIR VENT,5X8X250 35 92059-1045 2
HOSE,AIR VENT,5X8X250 35 92059-1045 2
FITTING 36 92005-1009 2
CAP,RUBBER 37 16039-042 2
GROMMET,CARBURETOR 38 92071-104 6
HOSE,6X11.5X16 39 92059-141 2
CLAMP,OVERFLOW HOSE 40 92037-173 4
HOSE,FUEL OVERFLOW 41 92059-147 1
CLAMP-PIPE 42 92037-072 2
TUBE,5.3X10.5X140 43 92059-1019 1
CLAMP,AIR VENT HOSE 44 92037-1092 1
HOSE,FUEL OVERFLOW 45 92059-147 1
UNAVAILABLE IN PRICE BOOK 46 97059-134 2
RING 48 16073-016 1
CIRCLIP 3MM 49 482K3000 1
