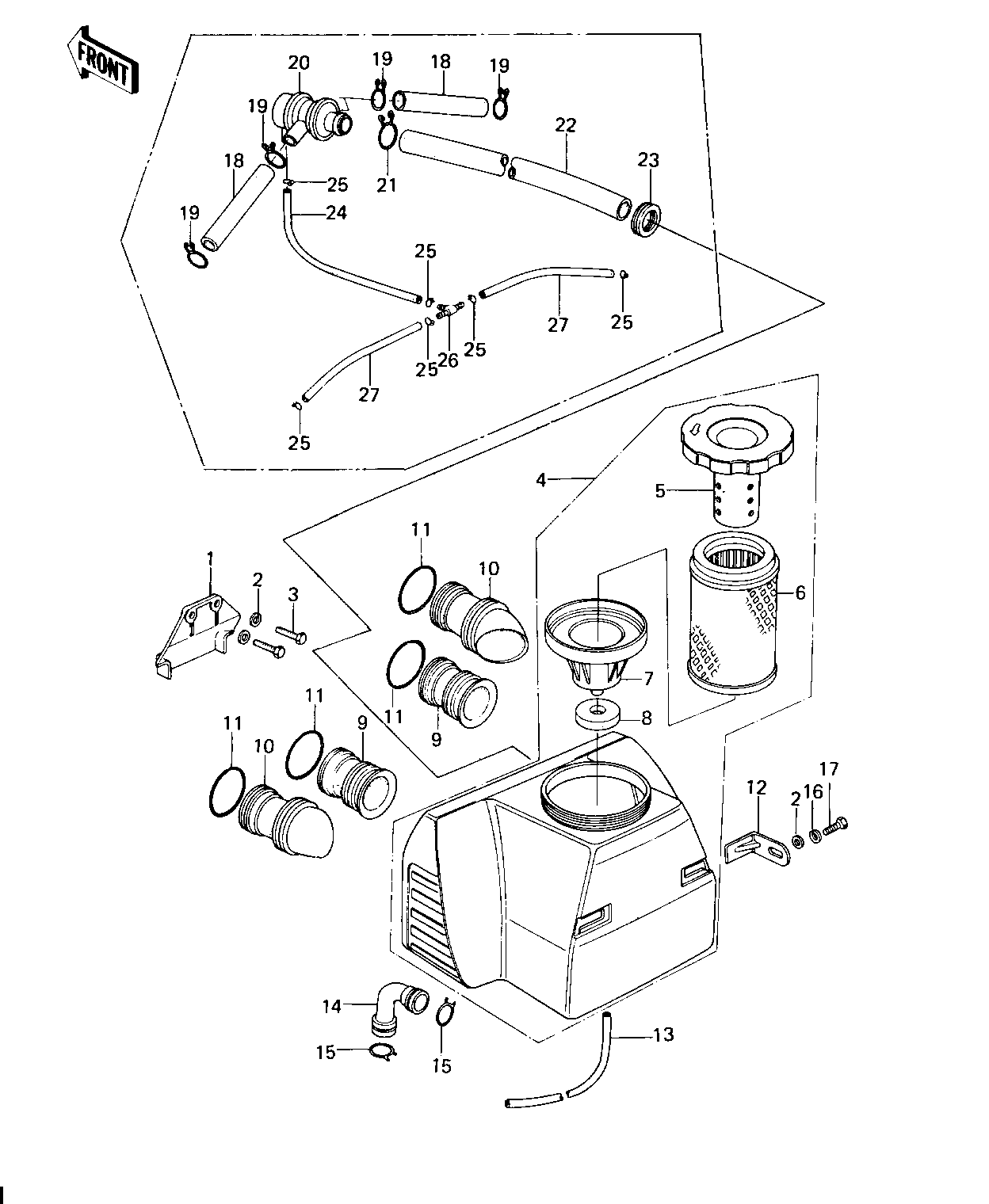

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BAFFLE PLT,AIR CLEANE | 1 | 11019-003 | 1 | ||
| WASHER PLAIN 6MM | 2 | 411B0600 | 4 | ||
| BOLT-UPSET | 3 | 112G0618 | 2 | ||
| FILTER-ASSY | 4 | 11010-1079 | 1 | KZ650-D1/D1A | |
| FILTER-ASSY-AIR | 4 | 11010-1078 | 1 | KZ650-D2 | |
| CAP,AIR CLEANER | 5 | 11012-069 | 1 | ||
| ELEMENT,AIR CLNR | 6 | 11013-1006 | 1 | ||
| HOLDER,INLET PIPE | 7 | 11033-006 | 1 | ||
| GASKET,HOLDER | 8 | 11039-003 | 1 | ||
| INLET DUCT,#2,3 | 9 | 11015-057 | 2 | ||
| INLET PIPE,#1.4 | 10 | 11015-063 | 2 | ||
| SPRING COIL | 11 | 92081-047 | 4 | ||
| BRACKET,AIR CLEANER | 12 | 32070-038 | 2 | ||
| UNAVAILABLE IN PRICE BOOK | 13 | 700Q6200 | 1 | ||
| TUBE,BREATHER | 14 | 92059-137 | 1 | ||
| CLAMP BREATHER PIPE | 15 | 92037-028 | 2 | ||
| WASHER SPRING 6MM | 16 | 461F0600 | 2 | ||
| BOLT-UPSET,6X12 | 17 | 112G0612 | 2 | ||
| TUBE,14X20X100 | 18 | 92059-1042 | 2 | KZ650-D2 | |
| CLAMP,BREATHER TUBE | 19 | 92037-213 | 4 | KZ650-D2 | |
| VALVE ASSY,AIR SWITCH | 20 | 16126-1005 | 1 | KZ650-D2 | |
| CLAMP | 21 | 92037-1076 | 1 | KZ650-D2 | |
| TUBE,19X25X415 | 22 | 92059-1041 | 1 | KZ650-D2 | |
| GROMMET,AIR CLEANER | 23 | 92071-1013 | 1 | KZ650-D2 | |
| TUBE,4X9X290 | 24 | 92059-1043 | 1 | KZ650-D2 | |
| CLAMP-PIPE | 25 | 92037-072 | 6 | KZ650-D2 | |
| FITTING,TUBE | 26 | 92005-1017 | 1 | KZ650-D2 | |
| TUBE,VACUUM,LONG | 27 | 92059-1162 | 2 | KZ650-D2 |
| BAFFLE PLT,AIR CLEANE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FILTER-ASSY | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D1/D1A |
| FILTER-ASSY-AIR | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
| CAP,AIR CLEANER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,INLET PIPE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,HOLDER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INLET DUCT,#2,3 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| INLET PIPE,#1.4 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING COIL | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BRACKET,AIR CLEANER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,BREATHER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP BREATHER PIPE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,14X20X100 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
| CLAMP,BREATHER TUBE | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
| VALVE ASSY,AIR SWITCH | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
| CLAMP | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
| TUBE,19X25X415 | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
| GROMMET,AIR CLEANER | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
| TUBE,4X9X290 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
| CLAMP-PIPE | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
| FITTING,TUBE | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
| TUBE,VACUUM,LONG | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
