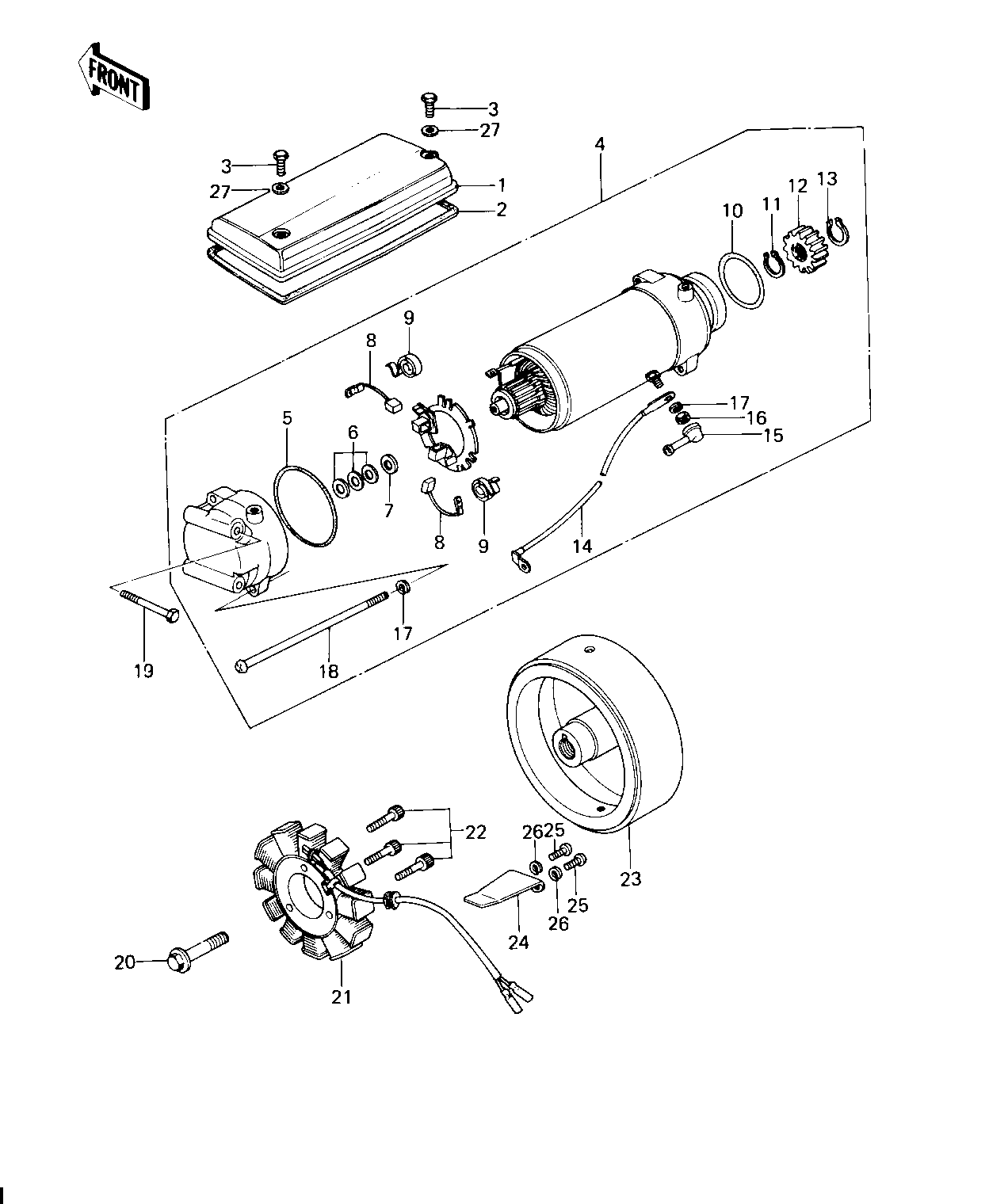

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,STARTER | 1 | 21165-003 | 1 | ||
GASKET,STARTER COVER | 2 | 21166-003 | 1 | ||
BOLT (6X10) | 3 | 110R0610 | 2 | ||
STARTER-ELECTRIC | 4 | 21163-1022 | 1 | ||
"0" RING,62MM | 5 | 21027-006 | 1 | ||
WASHER,THRUST,0.2T | 6 | 21025-011 | AR | ||
WASHER,THRUST,1.6T | 7 | 21025-010 | 1 | ||
CARBON BRUSH | 8 | 21039-003 | 2 | ||
SPRING,CARBON BRUSH | 9 | 21040-003 | 2 | ||
"0" RING,40M/M | 10 | 21027-008 | 1 | ||
CIRCLIP | 11 | 92033-034 | 1 | ||
PINION,STARTER | 12 | 21053-004 | 1 | ||
CIRCLIP,13M/M | 13 | 92033-037 | 1 | ||
WIRE-LEAD,STARTER | 14 | 26011-1099 | 1 | ||
CAP,STARTING MOTOR | 15 | 21017-020 | 1 | ||
NUT 6MM | 16 | 312B0600 | 2 | ||
WASHER SPRING 6MM | 17 | 461F0600 | 4 | ||
SCREW,PAN HEAD,6X130 | 18 | 21099-006 | 2 | ||
BOLT-UPSET | 19 | 112G0660 | 2 | ||
BOLT,10X40 | 20 | 92001-1201 | 1 | ||
STATOR | 21 | 21003-1005 | 1 | ||
BOLT-SOCKET,5X30 | 22 | 120P0530 | 3 | ||
FLYWHEEL | 23 | 21050-1003 | 1 | ||
CLAMP,GENERATOR WIRE | 24 | 92037-1122 | 1 | ||
SCREW PAN HEAD 5X12 | 25 | 220B0512 | 2 | ||
WASHER SPRING 5MM | 26 | 461F0500 | 2 | ||
WASHER,PLAIN,6MM | 27 | 410D0600 | 2 |
