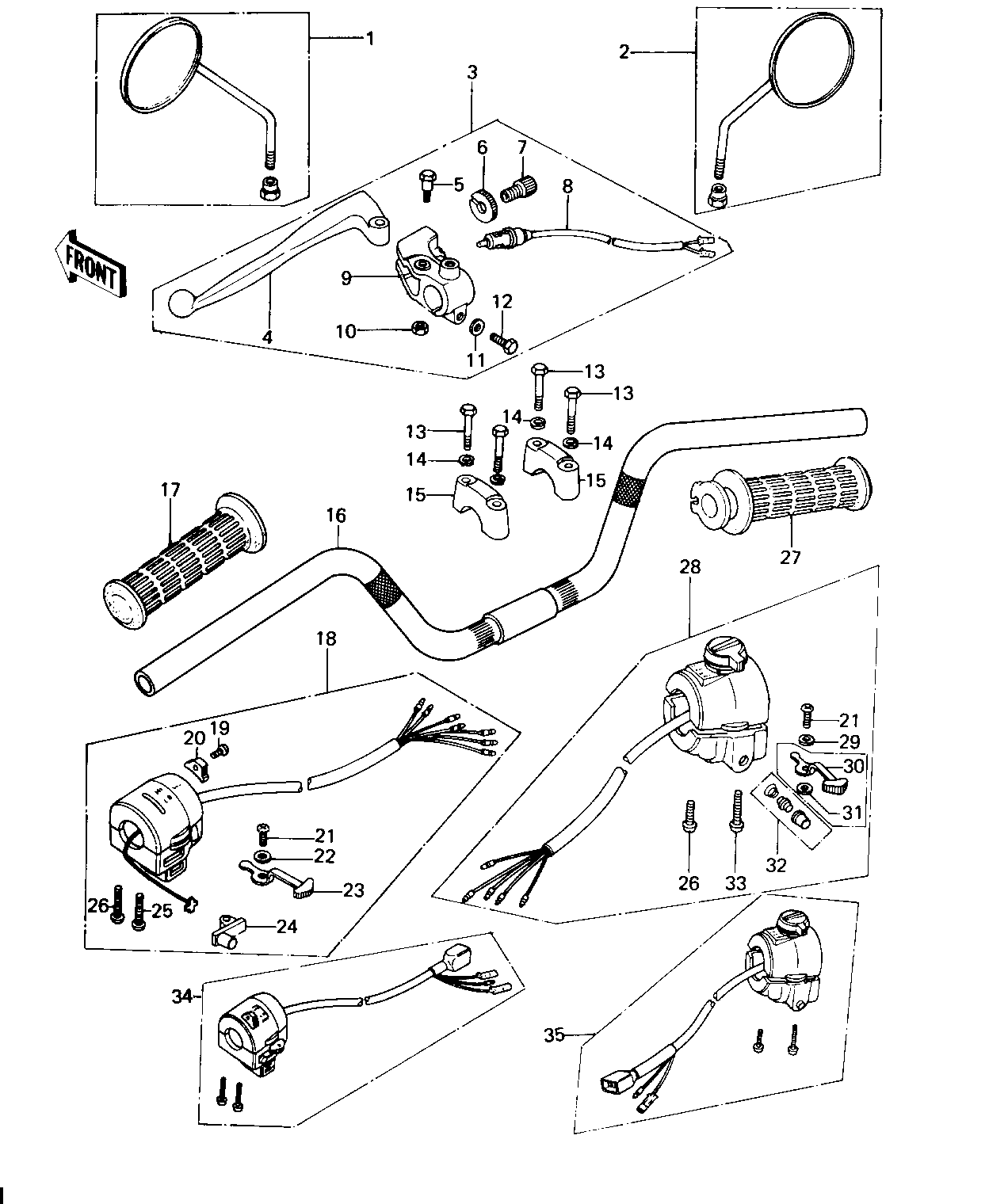

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
REAR VIEW MIRROR,L.H. | 1 | 56001-1027 | 1 | ||
REAR VIEW MIRROR,R.H. | 2 | 56001-1028 | 1 | ||
LEVER ASSY,CLUTCH | 3 | 46076-054 | 1 | ||
LEVER,CLUTCH | 4 | 46092-023 | 1 | ||
BOLT,HEX HEAD | 5 | 92007-047 | 1 | ||
NUT,CABLE ADUST NUT | 6 | 46056-007 | 1 | ||
SCREW CABLE ADJUST | 7 | 46055-003 | 1 | ||
SWITCH,CLUTCH | 8 | 27043-002 | 1 | ||
HOLDER,CLUTCH LEVER | 9 | 46094-019 | 1 | ||
NUT,LOCK 6MM | 10 | 92017-014 | 1 | ||
WASHER PLAIN 6MM | 11 | 410B0600 | 1 | ||
BOLT HEX HEAD 6X25 | 12 | 110N0625 | 1 | ||
BOLT 8X38 | 13 | 92001-1405 | 4 | ||
WASHER SPRING 8MM | 14 | 461F0800 | 4 | ||
HOLDER-HANDLEBAR | 15 | 46012-008 | 2 | ||
HANDLEBAR | 16 | 46003-1018 | 1 | KZ650-D1/D1A | |
HANDLEBAR | 16 | 46003-1029 | 1 | KZ650-D2 | |
RUBBER,L.H GRIP | 17 | 46075-028 | 1 | ||
CASE ASSY,L.H | 18 | 46091-055 | 1 | KZ650-D1/D1A | |
SCREW CNTSNK HD 3X8 | 19 | 221B0308A | 1 | ||
KNOB,LIGHTING SW L.H | 20 | 46044-013 | 1 | ||
SCREW PAN HEAD 3X5 | 21 | 220B0305A | 2 | ||
WASHER | 22 | 92095-010 | 1 | ||
KNOB,LIGHTING SW L.H | 23 | 46043-005 | 1 | ||
BUTTON,HORN SWITCH | 24 | 46028-007 | 1 | ||
SCREW-PAN-CROS | 25 | 220B0535 | 1 | ||
SCREW PAN HEAD 5X30 | 26 | 220B0530 | 2 | ||
GRIP ASSY,THROTTLE | 27 | 46019-038 | 1 | ||
HOUSING ASSY,R.H. CON | 28 | 46091-1031 | 1 | KZ650-D1 | |
HOUSING ASSY,R.H. | 28 | 46091-1038 | 1 | KZ650-D1A | |
WASHER PLAIN 3MM | 29 | 410B0300 | 1 | ||
KNOB,LIGHTING SW R.H | 30 | 46043-004 | 1 | USE FOR 46091-1031 | |
WASHER,PLAIN | 31 | 92095-014 | 1 | USE FOR 46091-1031 | |
SWITCH ASSY,HORN BUTN | 32 | 27010-1009 | 1 | ||
SCREW-PAN-CROS | 33 | 220B0540 | 1 | ||
HOUSING ASSY,CONT,L.H | 34 | 46091-1048 | 1 | KZ650-D2 | |
HOUSING ASSY,CONT,R.H | 35 | 46091-1047 | 1 | KZ650-D2 |
