Parts Diagrams |

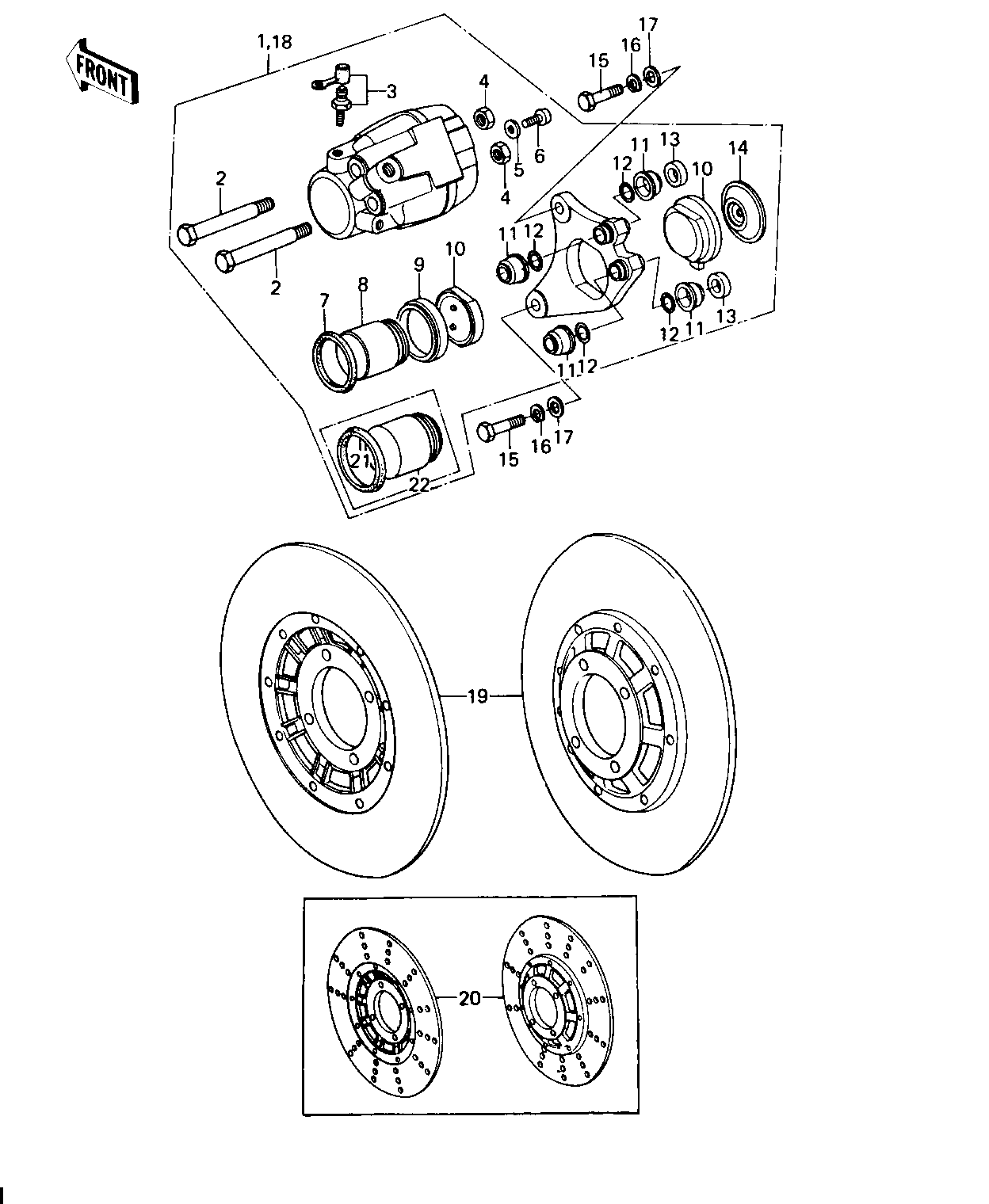

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CALIPER ASSY,L.H.FRO | 1 | 43041-1010 | 1 | KZ650-D1/D1A | |
UNAVAILABLE IN PRICE BOOK | 1 | 43041,1024 | 1 | KZ650-D2 | |
BOLT | 2 | 43045-006 | 4 | ||
BLEEDER SET | 3 | 43085-001 | 2 | ||
NUT 10MM | 4 | 315B1000 | 4 | ||
WASHER SPRING 6MM | 5 | 461F0600 | 2 | ||
SCREW PAN HEAD 6X12 | 6 | 220B0612 | 2 | ||
RING-PISTON | 7 | 43049-001 | 2 | USE FOR 43041-1010-1011 | |
PISTON | 8 | 43048-1002 | 2 | USE FOR 43041-1010-1011 | |
DUST SEALD,RUBBER | 9 | 43054-003 | 2 | ||
PAD SET | 10 | 43050-5003 | 2 | USE FOR 43041-1010/-1011 | |
UNAVAILABLE IN PRICE BOOK | 10 | 43062-1001 | 2 | USE FOR 43041-1024/-1025 | |
DUST SHILD,SHAFT | 11 | 43052-005 | 8 | ||
"0" RING | 12 | 43053-006 | 8 | ||
PLUG | 13 | 43088-002 | 4 | ||
SPACER | 14 | 43040-004 | 2 | ||
BOLT | 15 | 92007-032 | 4 | ||
WASHER SPRING 10MM | 16 | 461F1000 | 4 | ||
WASHER PLAIN 10MM | 17 | 410B1000 | 4 | ||
CALIPER ASSY,R.H,FRO | 18 | 43041-1011 | 1 | KZ650-D1/D1A | |
CALIPER ASSY,R.H | 18 | 43041-1025 | 1 | KZ650-D2 | |
DISC COMPLETE,FRONT | 19 | 41080-1002 | 2 | KZ650-D1/D1A | |
DISC PLATE,FRONT | 20 | 41080-1019 | 2 | KZ650-D2 | |
RING,PISTON SEAL | 21 | 43049-002 | 2 | USE FOR 43041-1024/-1025 | |
PISTON,BRAKE,42M/M | 22 | 43020-1012 | 2 | USE FOR 43041-1024/-1025 |
