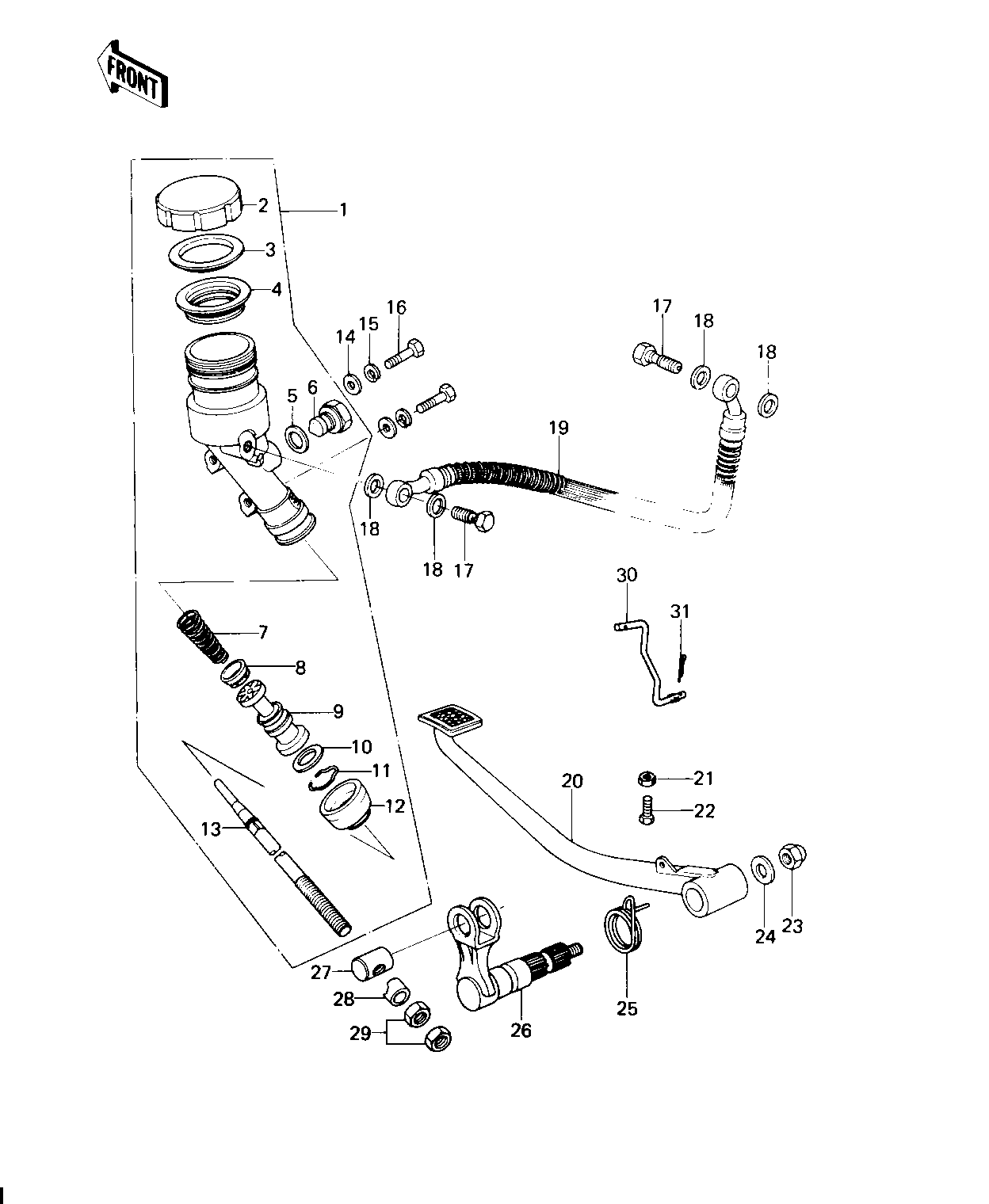

1979 SR - REAR MASTER CYLINDER/BRAKE PEDAL

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER ASSY,M.REAR 1 43015-1005 1 "14 " MARK
CAP,OIL CUP 2 43026-004 1
PLATE-MASTER CYLINDER 3 43027-001 1
DIAPHRAGM 4 43028-003 1
'O'RING 5 43079-002 1
BOLT 6 92001-1073 1
SPRING ASSY-RETURN 7 43018-001 1
CUP-PRIMARY 8 43019-001 1
PISTON ASSY 9 43020-1007 1
STOPPER,PISTON 10 43022-002 1
DUST COVER 11 43024-003 1
DUST COVER 12 43024-003 1
ROD,BRAKE 13 43011-1004 1
WASHER PLAIN 8MM 14 411B0800 2
WASHER SPRING 8MM 15 461F0800 2
BOLT-SMALL-UPSET,8X30 16 115G0830 2
BOLT,OIL,L=23 17 92002-1888 2
WASHER-OIL BOLT 18 43067-001 4
HOSE,REAR MASTER 19 43059-1006 1 L = 520M/M
PEDAL BRAKE 20 43001-1009 1
NUT 6MM 21 311B0600 1 STOPPER
BOLT-UPSET,6X20 22 112G0620 1 STOPPER
NUT,CAP AND LOCK,8MM 23 92019-013 1
WASHER,8.5X20X1.6 24 92022-1561 1
SPRING,BRAKE PEDAL 25 92081-1015 1
SHAFT,BRAKE PEDAL 26 43004-1002 1
PIN,BRAKE ROD 27 92043-1003 1
COLLAR,BRAKE ROD 28 92027-1019 1
NUT 10MM 29 315B1000 2
HOOK,BRAKE SWITCH 30 27012-1003 1
PIN COTTER 1.6X10 31 550D1610 1
