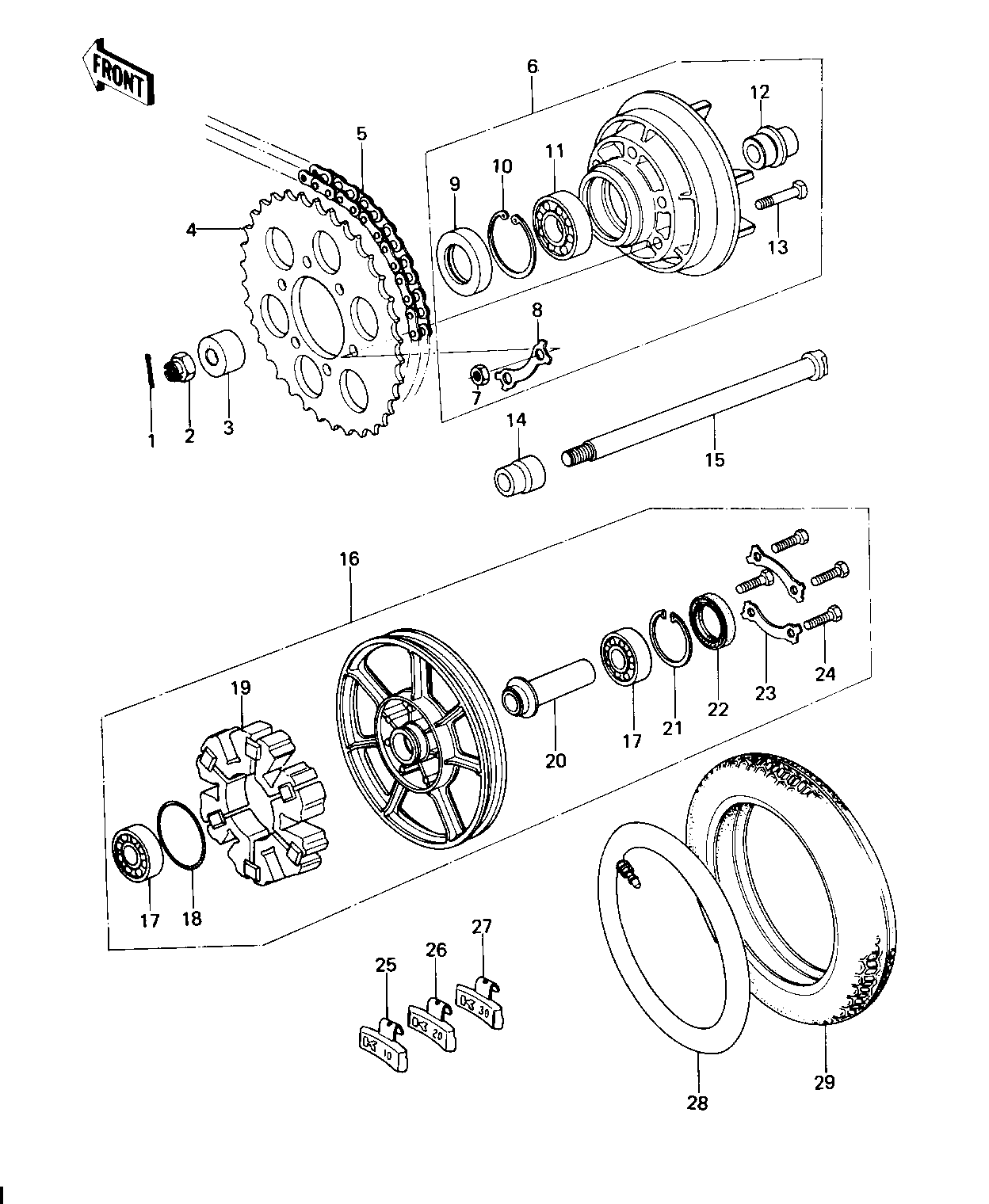

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIN-COTTER,4.0X35 | 1 | 550D4035 | 1 | ||
NUT CASTLE,16MM | 2 | 92015-055 | 1 | ||
COLLAR,REAR AXLE,22MM | 3 | 92027-1023 | 1 | ||
SPROCKET-HUB,40T,BLAC | 4 | 42041-1100 | 1 | KZ650-D1/D1A | |
REAR SPROCKET,4/T | 4 | 42041-1024 | 1 | KZ650-D2 | |
CHAIN-EX50MV-0X102L | 5 | 92057-1232 | 1 | ||
COUPLING ASSY,R.HUB | 6 | 42033-1004 | 1 | ||
NUT 10MM | 7 | 42045-005 | 6 | ||
PLUG | 8 | 92068-007 | 3 | ||
OIL SEAL | 9 | 92050-027 | 1 | ||
CIRCLIP,62M/M | 10 | 92033-1044 | 1 | ||
BALL BEARING,#6206 | 11 | 601B6206 | 1 | ||
SLEEVE,REAR HUB | 12 | 42036-1013 | 1 | ||
BOLT-REAR SPROCKET | 13 | 92003-087 | 6 | ||
COLLAR,FRONT AXLE | 14 | 41069-032 | 1 | ||
AXLE,RR | 15 | 41068-1086 | 1 | ||
SOLID WHEEL ASSY,REAR | 16 | 41073-1011 | 1 | ||
BRG,BALL,#6303ZZC3 | 17 | 601B6303ZZ | 2 | ||
"0" RING,65MM | 18 | 671B2565 | 1 | ||
SHOCK DAMPER,REAR HUB | 19 | 42014-033 | 1 | ||
COLLAR,REAR HUB BRG. | 20 | 92027-1047 | 1 | ||
CIRCLIP,47M/M | 21 | 92033-1042 | 1 | ||
SEAL-OIL,FORK OUTER | 22 | 92049-1319 | 1 | ||
WASHER,LOCK | 23 | 92088-023 | 2 | ||
BOLT | 24 | 92001-160 | 4 | ||
BALANCER-WHEEL,10G | 25 | 41075-1011 | AR | ||
BALANCER-WHEEL,20G | 26 | 41075-1012 | AR | ||
BALANCER-WHEEL,30G | 27 | 41075-1013 | AR | ||
TUBE 510-16 | 28 | 41022-1003 | 1 | ||
TIRE 510-16 K87 R | 29 | 41002-1020 | 1 | DUNLOP K87 |
