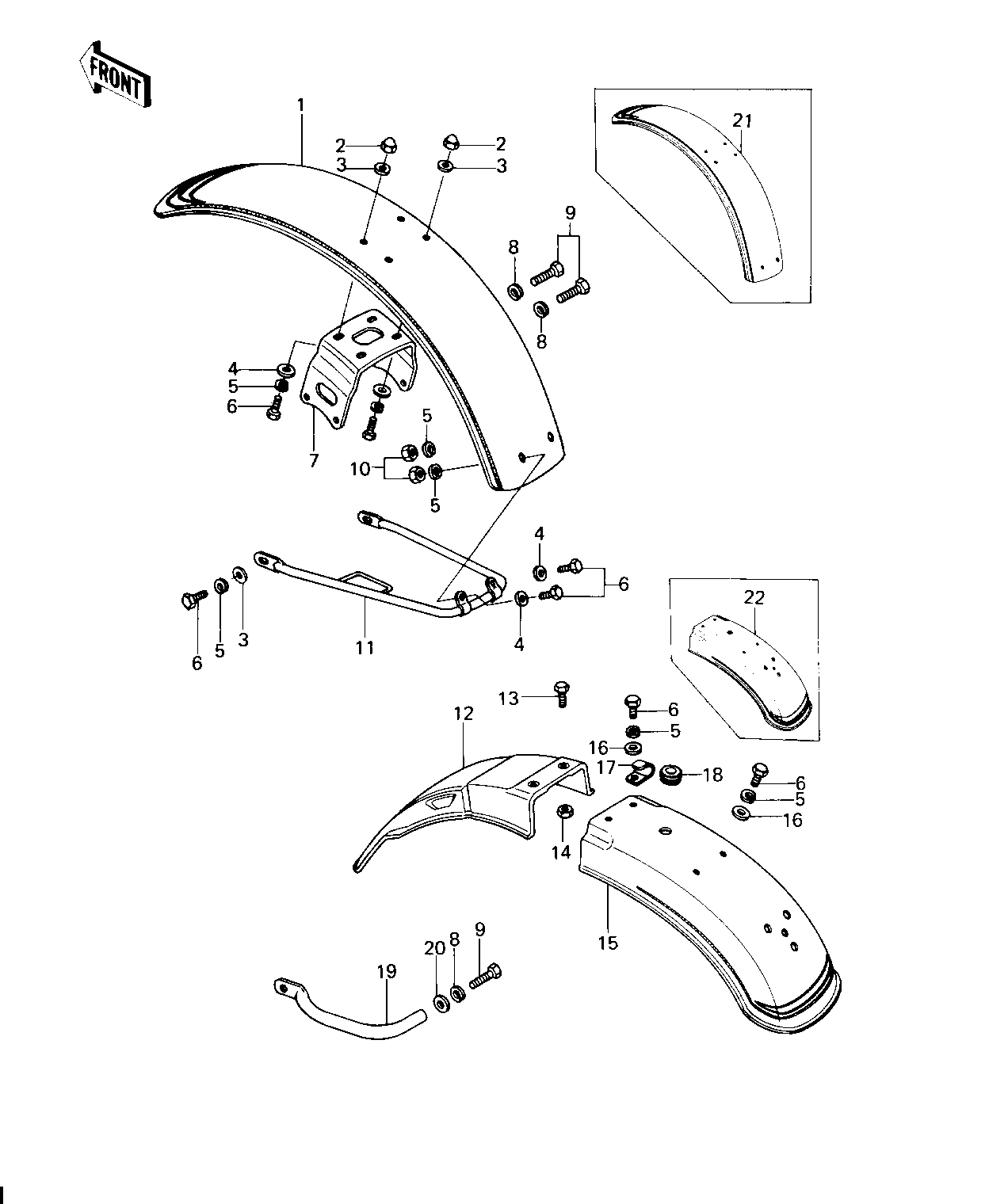

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FENDER-FR,C.P.RED | 1 | 35004-1019-A5 | 1 | KZ650-D1/D1A | |
NUT-6MM | 2 | 322N0600 | 4 | ||
WASHER PLAIN 6MM | 3 | 411B0600 | 6 | ||
WASHER PLAIN | 4 | 92022-024 | 6 | ||
WASHER SPRING 6MM | 5 | 461F0600 | 12 | ||
BOLT-UPSET 6X14 | 6 | 112B0614 | 12 | ||
BRACE,FRONT FENDER | 7 | 35009-1005 | 1 | ||
WASHER SPRING 8MM | 8 | 461F0800 | 5 | ||
BOLT-SMALL-UPSET,8X16 | 9 | 115G0816 | 5 | ||
NUT 6MM | 10 | 311B0600 | 2 | ||
STAY,FRONT FENDER | 11 | 35011-1005 | 1 | ||
FENDER-RR | 12 | 35022-1046 | 1 | ||
BOLT-UPSET,6X16 | 13 | 112G0616 | 2 | ||
NUT,LOCK 6MM | 14 | 92017-014 | 2 | ||
FENDER-RR,C.P.RED | 15 | 35022-1005-A5 | 1 | KZ650-D1/D1A | |
WASHER PLAIN 6MM | 16 | 410B0600 | 4 | ||
CLAMP,HARNESS | 17 | 92037-113 | 1 | ||
GROMMET HARNESS 10MM | 18 | 92071-019 | 1 | ||
GRIP,FRAME | 19 | 32109-1002 | 1 | ||
WASHER PLAIN 8MM | 20 | 410B0800 | 1 | ||
FENDER-FR,M.BLUE | 21 | 35004-1019-8E | 1 | KZ650-D2 | |
FENDER-FR,C.P.RED | 21 | 35004-5001-A5 | 1 | KZ650-D2 | |
FENDER-RR,M.BLUE | 22 | 35022-1005-8E | 1 | KZ650-D2 | |
FENDER-RR,C.P.RED | 22 | 35022-5001-A5 | 1 | KZ650-D2 |
FENDER-FR,C.P.RED | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ650-D1/D1A |
NUT-6MM | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER PLAIN | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 12 |
DESTINATION | |
REMARKS |
BOLT-UPSET 6X14 | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 12 |
DESTINATION | |
REMARKS |
BRACE,FRONT FENDER | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 8MM | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT-SMALL-UPSET,8X16 | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
NUT 6MM | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STAY,FRONT FENDER | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-RR | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET,6X16 | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK 6MM | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FENDER-RR,C.P.RED | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ650-D1/D1A |
WASHER PLAIN 6MM | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,HARNESS | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET HARNESS 10MM | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP,FRAME | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN 8MM | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-FR,M.BLUE | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ650-D2 |
FENDER-FR,C.P.RED | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ650-D2 |
FENDER-RR,M.BLUE | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ650-D2 |
FENDER-RR,C.P.RED | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KZ650-D2 |
