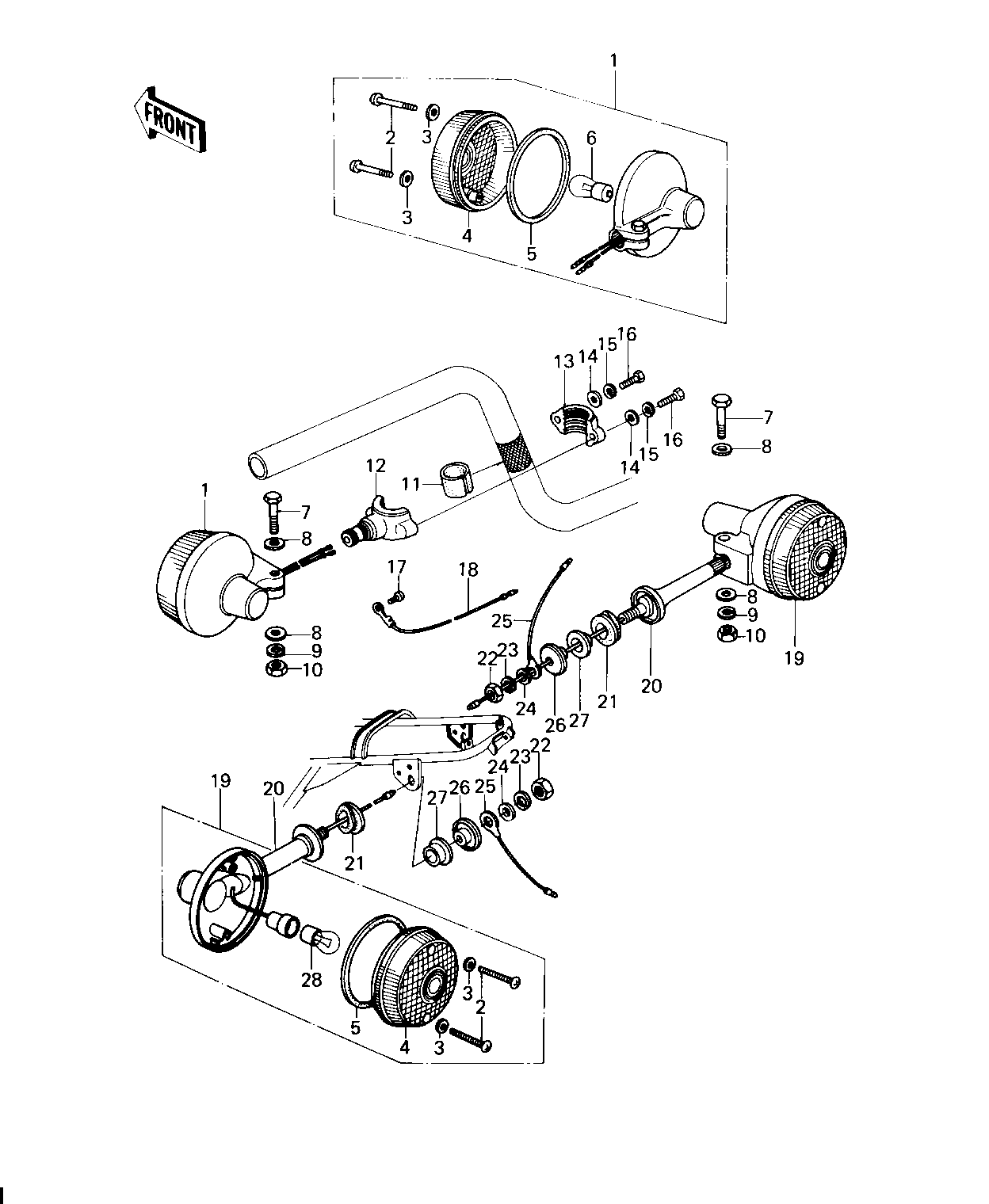

1979 SR - TURN SIGNALS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP,FRNT,TURN SIGNAL 1 23040-1004 2
SCREW-PAN HEAD,4X20 2 220E0420A 8
WASHER-PLAIN,4MM 3 23058-002 8
LENS,TURN SIGNAL LAMP 4 23048-1001 4
GASKET-SIG LAMP LENS 5 23050-003 4
BULB,12V 23/8W 6 92069-060 2
BOLT-UPSET 7 112G0630 4
WASHER PLAIN 6MM 8 411B0600 8
WASHER SPRING 6MM 9 461F0600 4
NUT 6MM 10 311B0600 4
DAMPER RUBBER 11 23066-003 2
BRACKET,FRNT TURN SIG 12 23051-1004 2
BRACKET,SIGNAL LAMP 13 23051-1013 2
WASHER-PLAIN,5MM 14 410D0500 4
WASHER SPRING 5MM 15 461F0500 4
BOLT 16 110N0516 4
SCREW PAN HEAD 3X5 17 220B0305A 2
WIRE-TURN SIGNAL LEAD 18 26011-061 2
LAMP,TURN SIGNAL 19 23040-054 2
BRACKET,TURN SIGNAL.L 20 23051-053 2
DAMPER RUBBER 21 92075-128 2
NUT 10MM 22 315B1000 2
WASHER SPRING 10MM 23 461F1000 2
WASHER,PLAIN 24 92022-239 2
LEAD WIRE,SIGNAL LAMP 25 26011-063 2
COLLAR 26 92027-147 2
DAMPER RUBBER,SIG LM 27 92075-158 2
BULB 12V 32CP 28 92069-055 2
