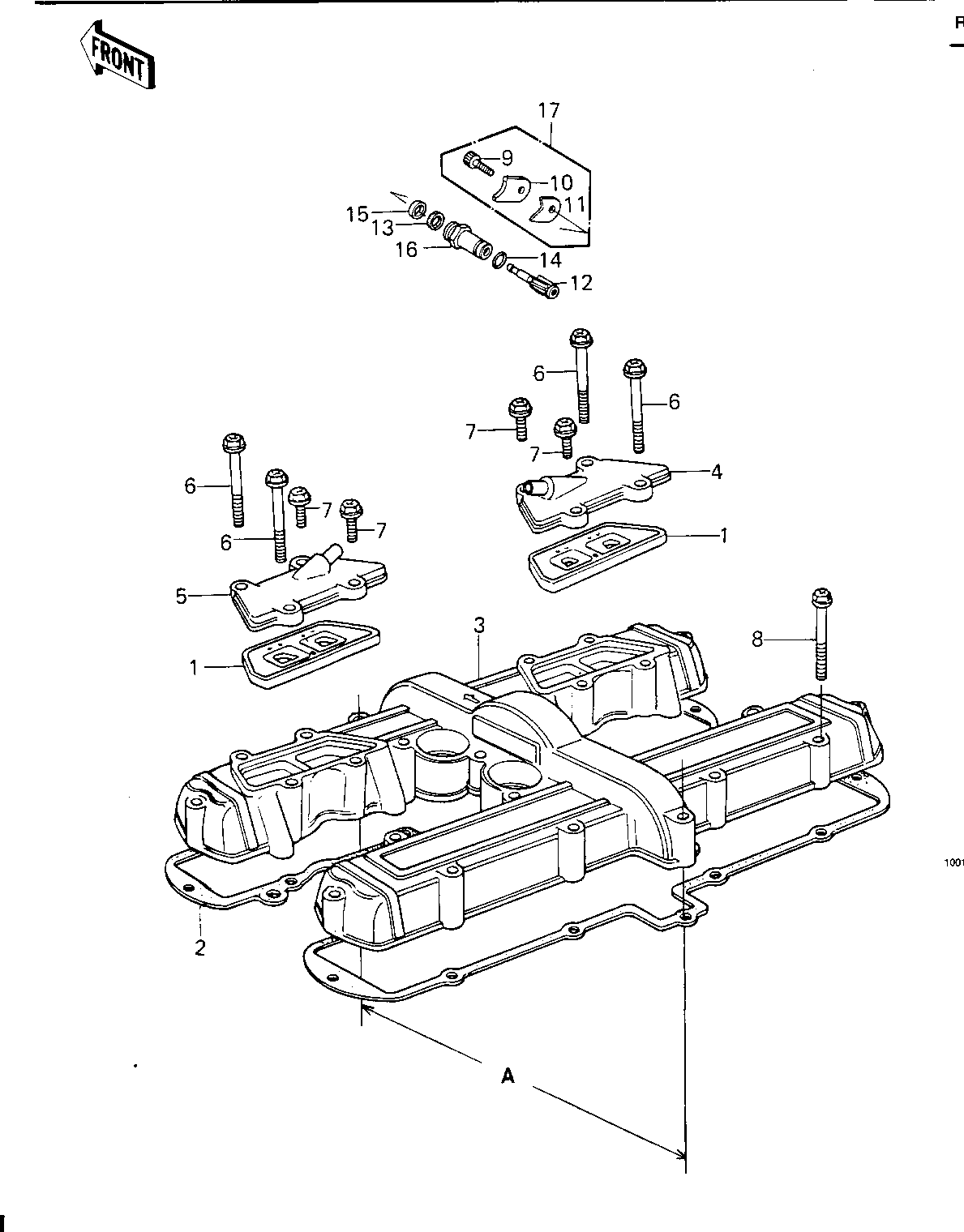

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE ASSY REED 1 12021-1003 2
GASKET,CYL HEAD COVER 2 11009-1065 1 E/NO 026001 ~ 029655
GASKET,CYLINDER HEAD 2 11009-1237 1 E/NO 029656 ~ 032216
GASKET,CYLINDER HEAD 2 11009-1237 AL
COVER,CYLINDER HEAD 3 14025-1058 1 E/NO 026001 ~ 029655
COVER,CYLINDER HEAD 3 14025-1209 1 E/NO 029656 ~ 043316
CAP ASSY,R.H,REED VALVE 4 14075-5001 1
CAP ASSY,L.H,REED VALVE 5 14075-5002 1
BOLT,HEX HEAD,6X65 6 92001-1102 4
BOLT,FLANGED,6X22 7 92001-1352 4
BOLT,HEX HEAD,6X45 8 92001-165 20
BOLT,6X14 9 120P0614 1
HOLDER,TACHOMETER2.3T 10 13091-1008 1
HOLDER,TACHOMETR,3.2T 11 13091-1009 1
GEAR,TACHOMETER,10T 12 13223-011 1
OIL SEAL 13 92050-075 1
RING-O,10MM 14 92055-1149 1
GASKET,TACHOMETER GEAR 15 92065-103 1
GUIDE,TACHOMETER GEAR 16 92087-010 1
HOLDER SET,TACHOMETER 17 13091-5001 1
