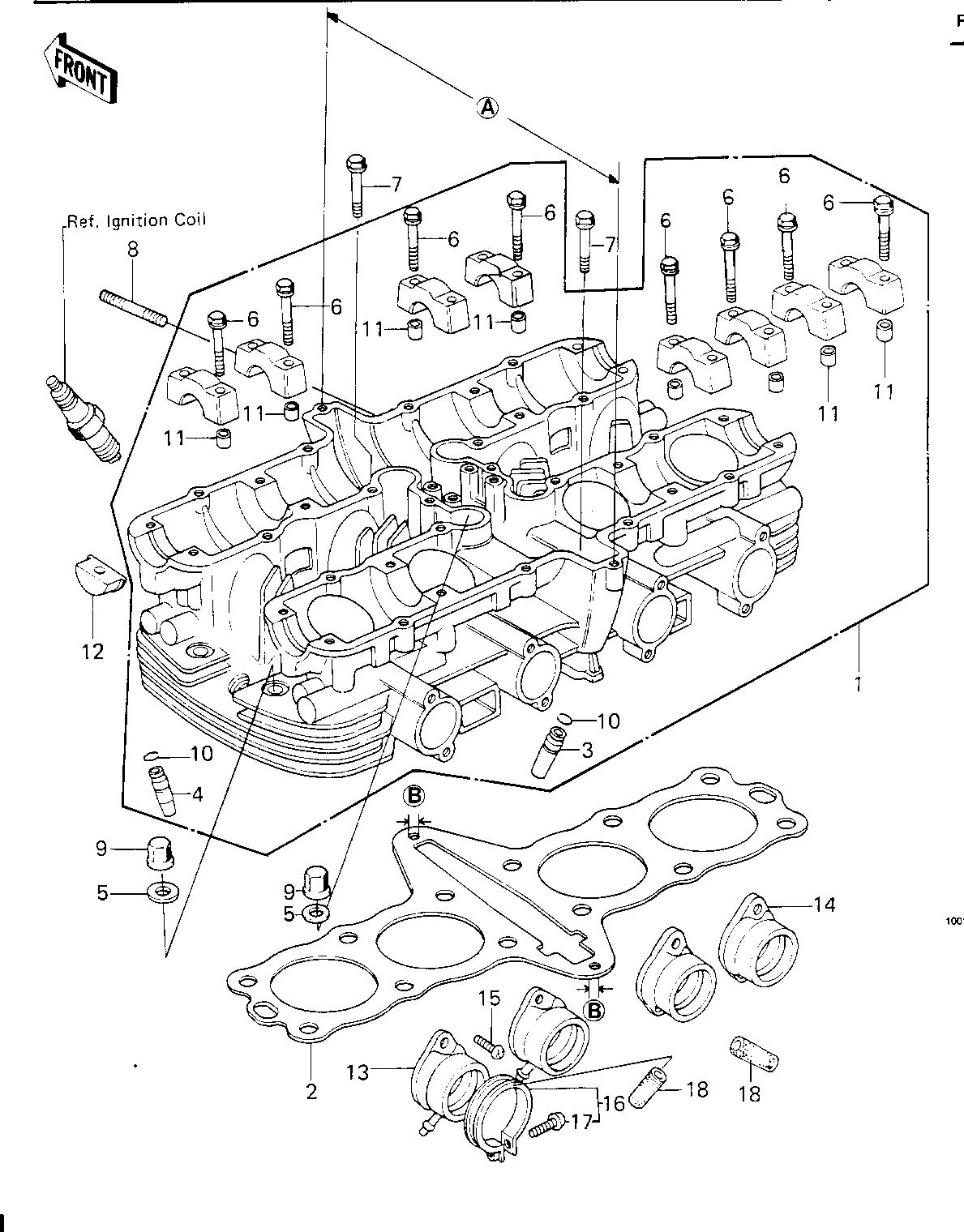

1980 LTD - CYLINDER HEAD

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD ASSY,CYLINDER 1 11002-1014 1 E/NO 026001 ~ 029655
HEAD-ASSY-CYLINDER,BA 1 11002-1075 1 E/NO 029656 ~ 032216
GASKET-HEAD,CYLINDER 2 11004-1107 1 E/NO 026001 ~ 029655
GASKET-HEAD,CYLINDER 2 11004-1107 1 E/NO 029656 ~ 032216
GUIDE,INLET VALVE 3 12013-009 4
GUIDE,EXHAUST VALVE 4 49002-1002 4
GUIDE,EXHAUST VALVE 4 49002-1002 4
WASHER PLAIN 10MM 5 411B1000 12
BOLT,FLANGED,6X38 6 92001-1105 16
BOLT,6X43 7 92002-1881 2 E/NO 026001 ~ 029655
BOLT,FLANGED,8X43 7 92001-1445 2 E/NO 029656 ~ 032216
BOLT,FLANGED,8X43 7 92001-1445 2
STUD,6X27 8 92004-066 8
NUT,CYLINDER HEAD 9 92015-076 12
CIRCLIP-VALVE 10 92036-023 8
PIN-DOWEL 11 92042-007 16
PLUG,CAMSHAFT,11.35X1 12 92066-1111 4
HOLDER,CARB,L.H. 13 16065-046 2
HOLDER,CARB,R.H 14 16065-047 2
SCREW PAN HEAD 6X18 15 220B0618 8
CLAMP,CARBURETOR HOLDER 16 92037-178 4
SCREW-PAN-CROSS, 5X25 17 220B0525 4
RUBBER PLUG 18 92068-006 2
