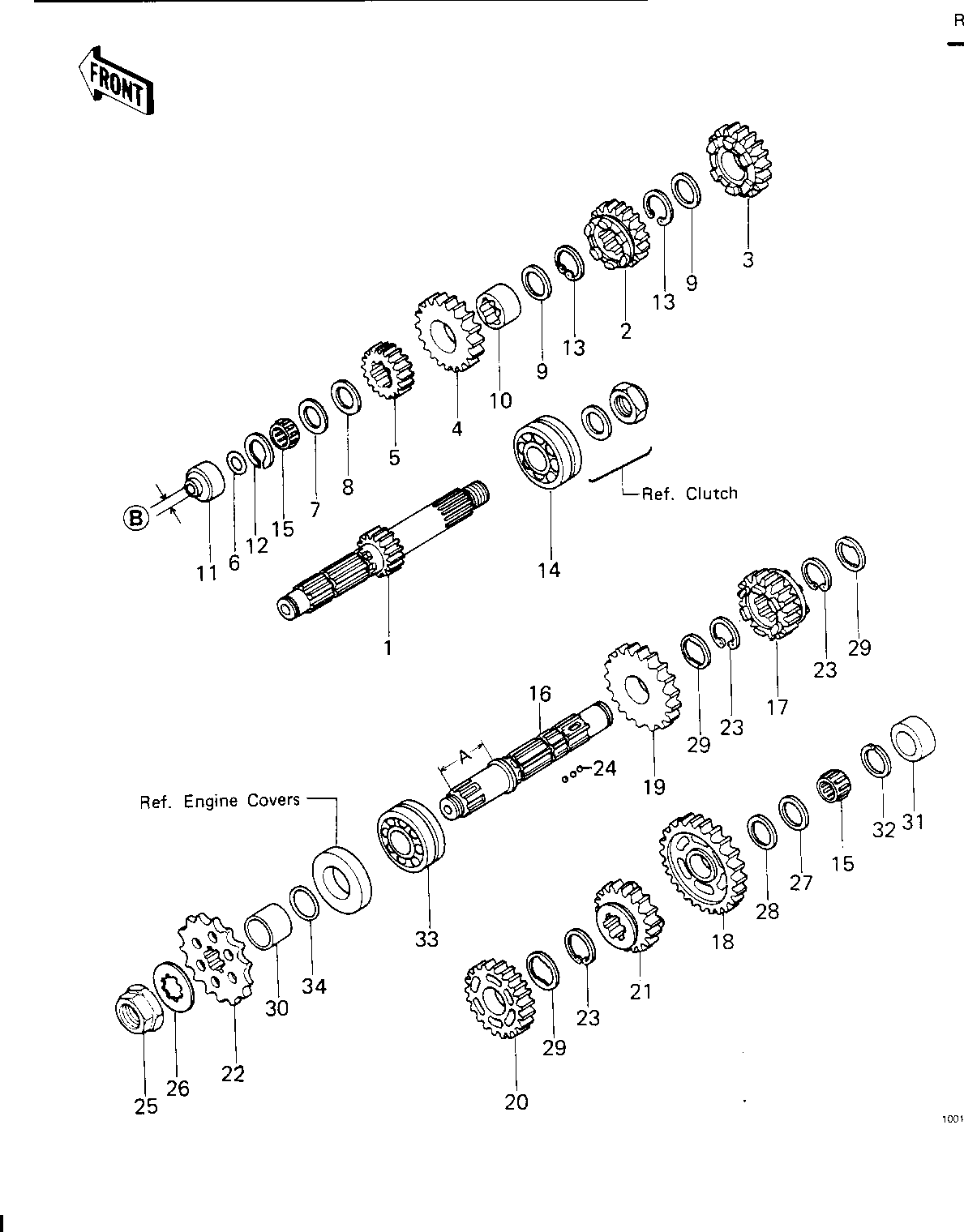

1980 LTD - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,DRIVE 1 13127-051 1 E/NO. 026001 ~ 029745
SHAFT,DRIVE 1 13127-1018 1 E/NO. 029746 ~ 032216
3RD GEAR,DRIVE SHAFT 2 13129-1032 1
4TH GEAR,DRIVE SHAFT 3 13129-1044 1
TOP GEAR,DRIVE SHAFT 4 13129-1045 1
2ND GEAR,DRIVE 5 13130-041 1
"O" RING,7MM 6 670B1507 1 E/NO. 026001 ~ 029745
"O" RING,8MM 6 670B1508 1 E/NO. 029746 ~ 032216
WASHER THRUST 7 92022-112 AR
SHIM-KICK SHAFT 7 92022-144 AR
WASHER,PLAIN 7 92022-1026 AR
WASHER THRUST 8 92022-113 1
WASHER PLAIN 9 92022-161 2
BUSHING,DRV SHFT TOP 10 92028-1007 1
BUSHING,DRIVE SHAFT 11 92028-179 1 E/NO. 026001 ~ 029745
BUSHING,DRIVE SHAFT 11 92028-1032 1 E/NO. 029746 ~ 032216
CIRCLIP 12 92033-015 1
CIRCLIP 13 92033-026 2
BEARING,VS20/14A 15 92046-1030 2
BEARING,VS20/14A 15 92046-1030 2
SHAFT,OUTPUT 16 13128-1012 1
TOP GEAR,OUTPUT SHAFT 17 13129-1033 1
LOW GEAR,OUTPUT SHAFT 18 13129-1046 1
2ND GEAR,OUTPUT SHAFT 19 13129-1047 1
3RD GEAR,OUTPUT SHAFT 20 13129-1048 1
4TH GEAR,OUTPUT SHAFT 21 13129-1049 1
ENGINE SPROCKET,16T 22 13144-063 1
ENGINE SPROCKET,17T 22 13144-1009 (1 RACING USE ONLY
CIRCLIP,30MM 23 480J3000 3
BALL STEEL 5/32' 24 600A0500 3
NUT,20MM 25 92015-1254 1
WASHER 26 92200-1065 1
WASHER THRUST 27 92022-112 AR
SHIM-KICK SHAFT 27 92022-144 AR
WASHER THRUST 28 92022-113 1
WASHER,LOCK 29 92024-069 3
COLLAR,ENG SPROCKET 30 92027-288 1
BUSHING,OUTPUT SHAFT 31 92028-180 1
CIRCLIP 32 92033-015 1
BEARING,BALL 33 92045-035 1
"O" RING 34 92055-035 1
