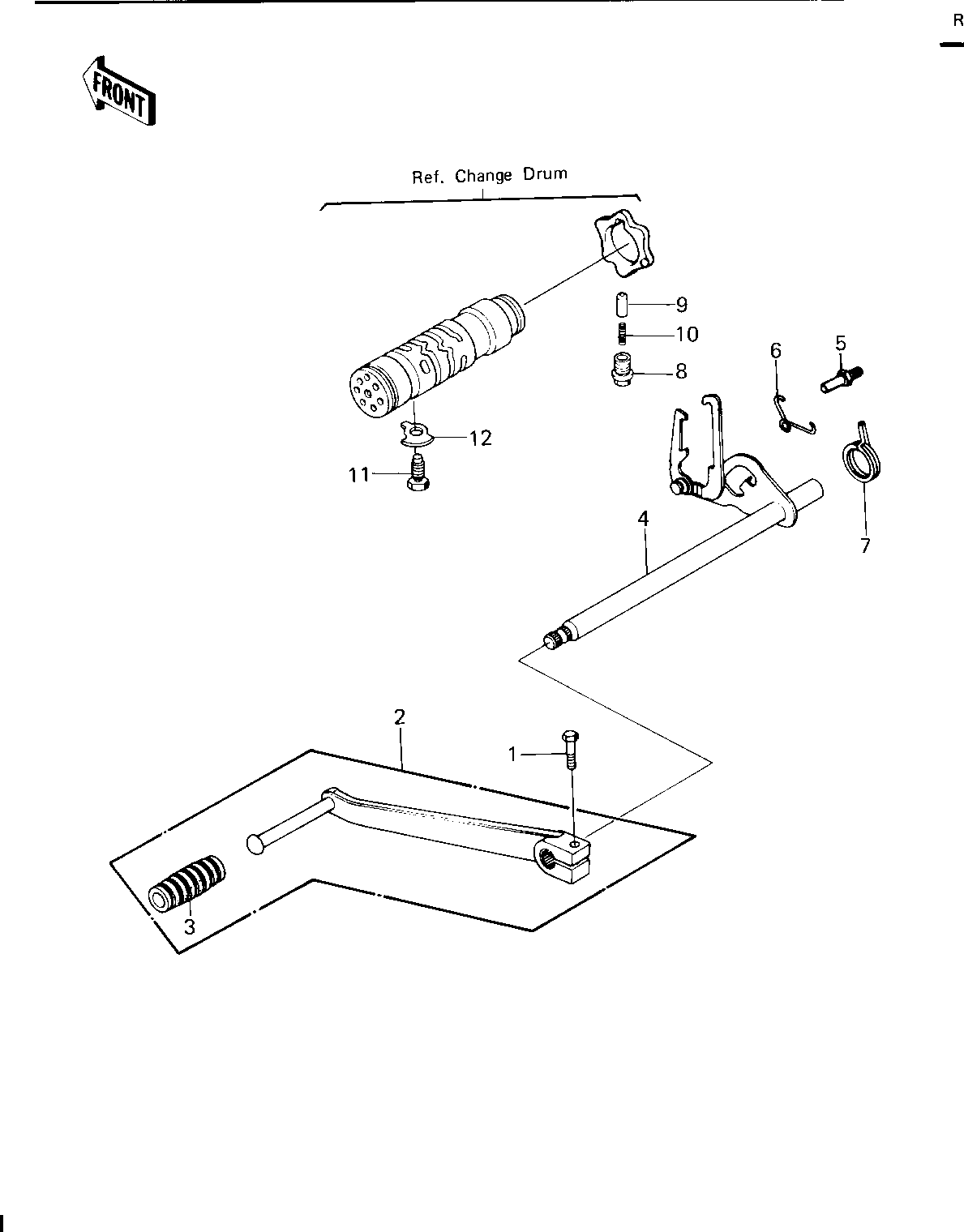

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X20 1 112G0620 1
PEDAL ASSY,GEAR SHIFT 2 13242-022 1
DAMPER,CHANGE PEDAL 3 92160-1036 1
LEVER ASSY,GEAR SFT 4 13161-042 1
BOLT,RETURN SPRING 5 92001-1401 1
SPRING,KICK PAWL 6 92083-018 1
SPRING,CHG PEDL RTRN 7 92083-028 1
BOLT,NEUTRAL POSITION 8 92001-1037 1
PIN-NEUTRAL POSITION 9 92043-076 1
SPRING 10 92081-112 1
BOLT,HEX HEAD,10X26 11 92001-174 1
WASHER,LOCK,10MM 12 92024-074 1
