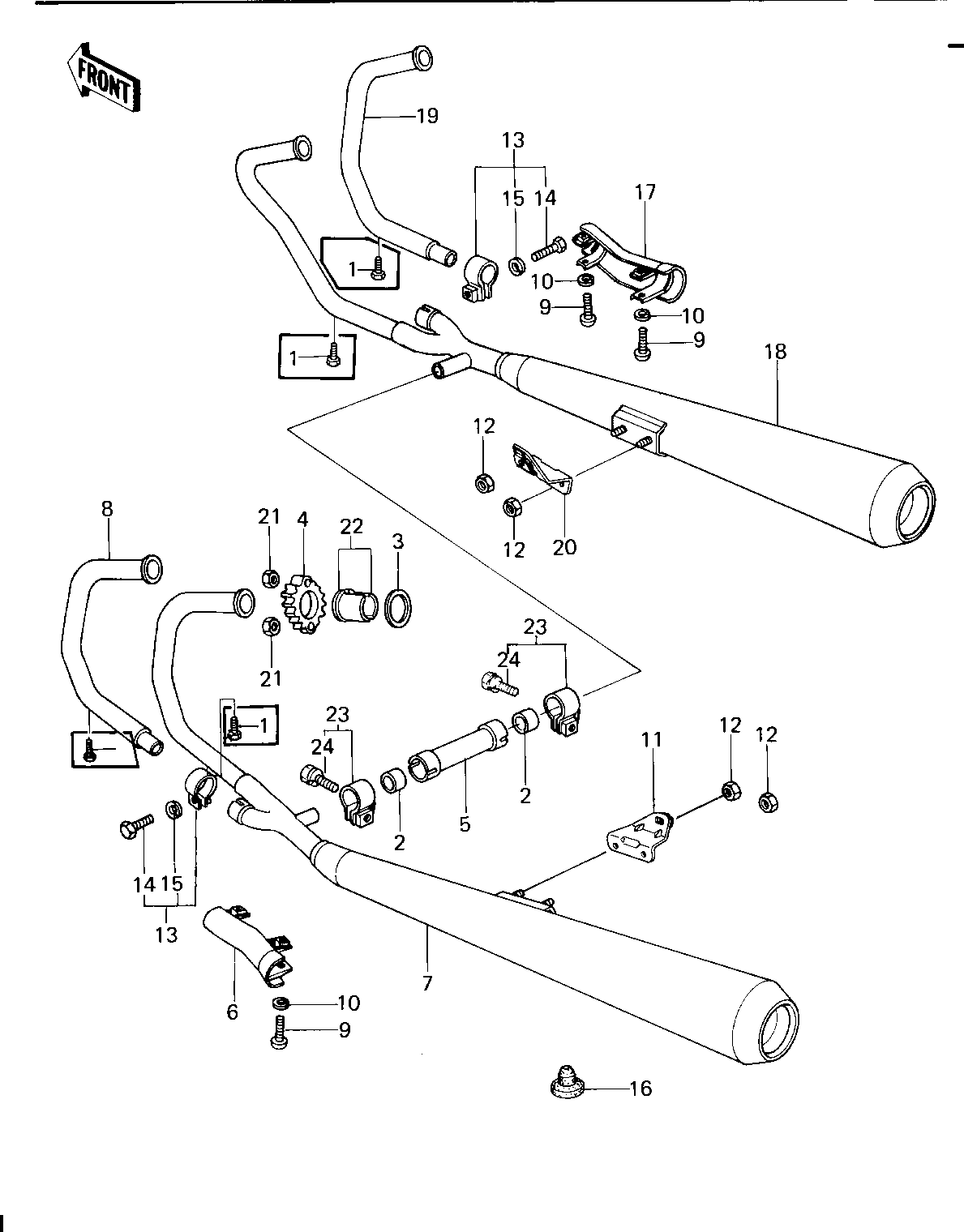

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT (6X10) | 1 | 110R0610 | 4 | ||
GASKET,MUFFLER CONNEC | 2 | 11060-1051 | 2 | ||
GASKET,EXHAUST PIPE H | 3 | 11009-1866 | 4 | ||
HOLDER,EXHAUST PIPE | 4 | 18069-1006 | 4 | ||
PIPE,MUFFLER CONNECT1 | 5 | 32032-1671 | 1 | ||
COVER,MUFFLER,L.H. | 6 | 14025-1029 | 1 | ||
MUFFLER ASSY,L.H | 7 | 18001-1035 | 1 | ||
PIPE,EXHAUST,#2 | 8 | 18049-1036 | 1 | ||
SCREW PAN HEAD 6X40 | 9 | 220B0640 | 4 | ||
WASHER SPRING 6MM | 10 | 461F0600 | 4 | ||
BRACKET,MUFFLER,L.H. | 11 | 32069-1041 | 1 | ||
NUT,LOCK,8MM | 12 | 92017-013 | 4 | ||
CLAMP,EXHAUST PIPE | 13 | 92037-1224 | 2 | ||
BOLT-SMALL-UPSET,8X30 | 14 | 115G0830 | 2 | ||
WASHER SPRING 8MM | 15 | 461F0800 | 2 | ||
DAMPER RUBBER,MAIN ST | 16 | 92075-1002 | 1 | ||
COVER,MUFFLER,R.H. | 17 | 14025-1030 | 1 | ||
MUFFLER,R.H. | 18 | 18001-1025 | 1 | ||
PIPE,EXHAUST,#4 | 19 | 18049-1038 | 1 | ||
BRACKET,MUFFLER,R.H. | 20 | 32069-1042 | 1 | ||
NUT,LOCK 6MM | 21 | 92017-014 | 8 | ||
COLLAR,EXHAUST PIPE | 22 | 92027-264 | 8 | ||
CLAMP,PIPE,35MM | 23 | 92037-1223 | 2 | ||
BOLT,8X30 | 24 | 92001-1379 | 2 |
BOLT (6X10) | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GASKET,MUFFLER CONNEC | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST PIPE H | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
HOLDER,EXHAUST PIPE | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIPE,MUFFLER CONNECT1 | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,MUFFLER,L.H. | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MUFFLER ASSY,L.H | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,EXHAUST,#2 | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X40 | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BRACKET,MUFFLER,L.H. | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,8MM | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,EXHAUST PIPE | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-SMALL-UPSET,8X30 | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 8MM | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER RUBBER,MAIN ST | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,MUFFLER,R.H. | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MUFFLER,R.H. | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,EXHAUST,#4 | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,MUFFLER,R.H. | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK 6MM | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
COLLAR,EXHAUST PIPE | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
CLAMP,PIPE,35MM | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,8X30 | |
REF # | 24 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
