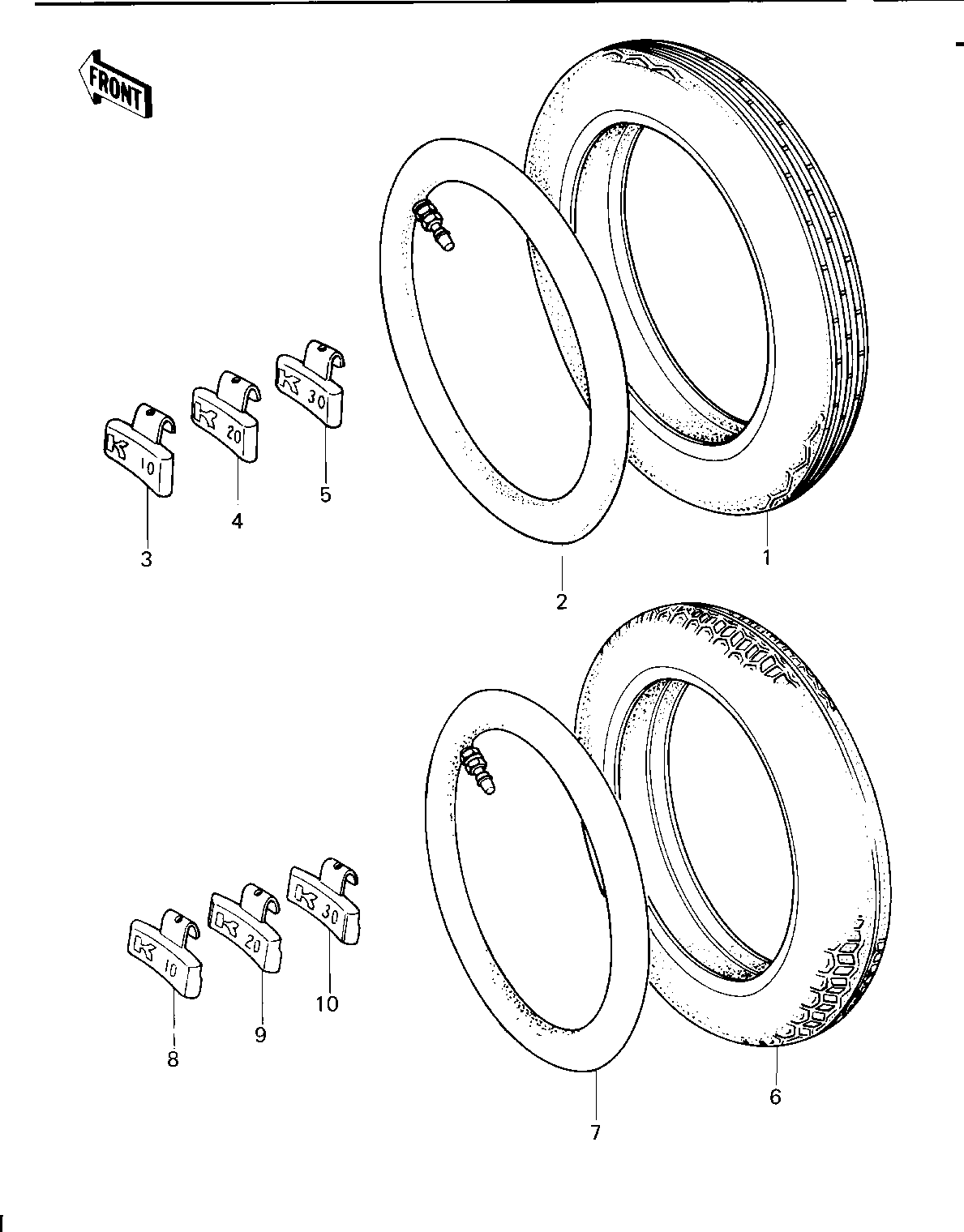

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE 350H-19 F6 4PR 1 41002-1019 1 DUNLOP GOLD SEAL F6
TUBE, TIRE 3.25/3.50-19 2 41022-030 1
BALANCER-WHEEL,10G 3 41075-1011 AR
BALANCER-WHEEL,20G 4 41075-1012 AR
BALANCER-WHEEL,30G 5 41075-1013 AR
TIRE 510-16 K87 R 6 41002-1020 1 DUNLOP K87 MARK II
TUBE 510-16 7 41022-1003 1
BALANCER-WHEEL,10G 8 41075-1011 AR
BALANCER-WHEEL,20G 9 41075-1012 AR
BALANCER-WHEEL,30G 10 41075-1013 AR
