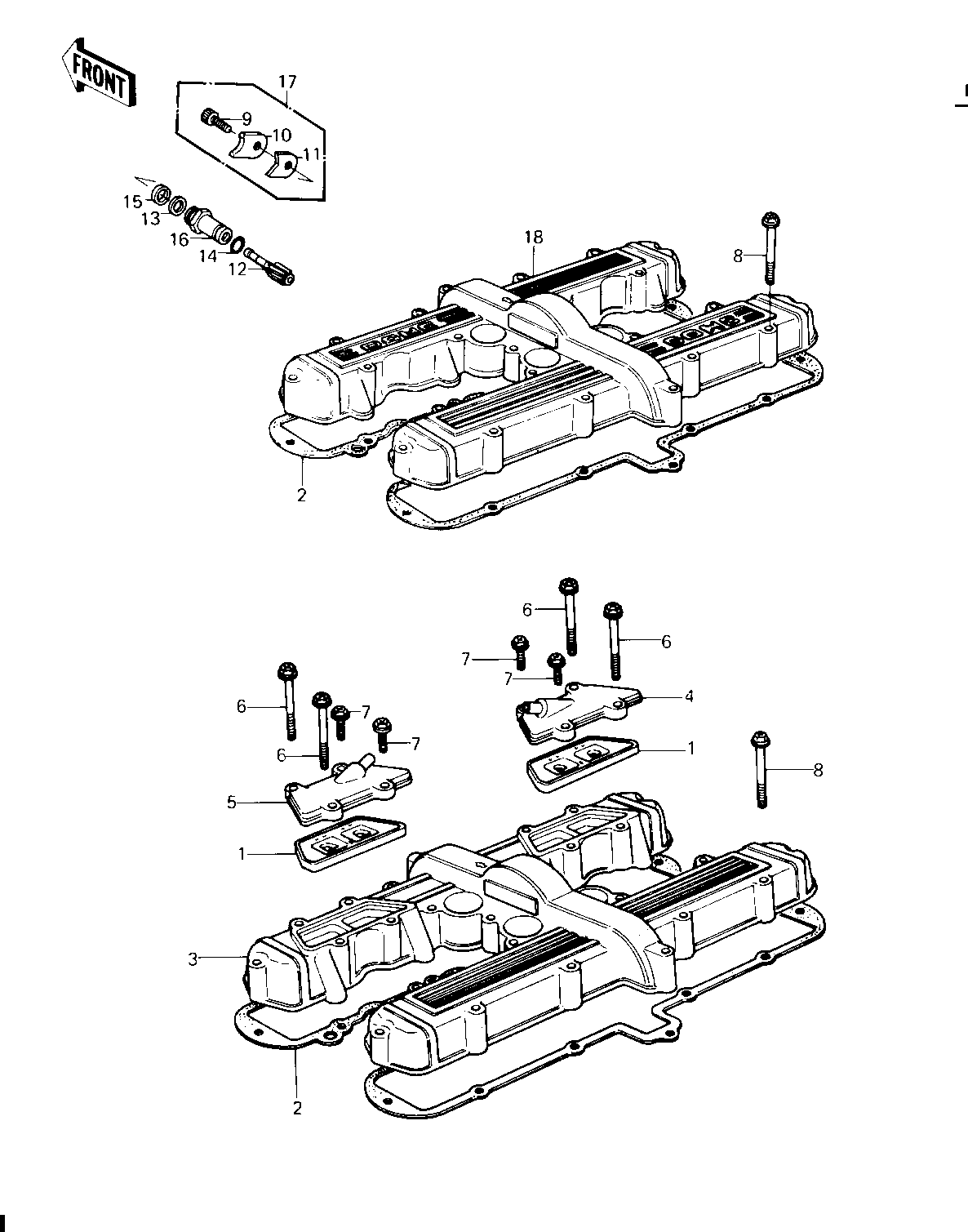

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
VALVE ASSY REED | 1 | 12021-1003 | 2 | ||
GASKET,CYL HEAD COVER | 2 | 11009-1065 | 1 | E/NO. 114501~118270 | |
GASKET,CYLINDER HEAD | 2 | 11009-1237 | 1 | E/NO. 118271~ | |
COVER,CYLINDER HEAD | 3 | 14025-1058 | 1 | E/NO. 114501~118270 | |
COVER,CYLINDER HEAD | 3 | 14025-1209 | 1 | E/NO. 118271~ | |
CAP ASSY,R.H,REED VLV | 4 | 14075-5001 | 1 | ||
CAP ASSY,L.H,REED VLV | 5 | 14075-5002 | 1 | ||
BOLT,HEX HEAD,6X65 | 6 | 92001-1102 | 4 | ||
BOLT,FLANGED,6X22 | 7 | 92001-1352 | 4 | ||
BOLT,HEX HEAD,6X45 | 8 | 92001-165 | 20 | ||
BOLT,6X14 | 9 | 120P0614 | 1 | ||
HOLDER,TACHOMETER2.3T | 10 | 13091-1008 | 1 | ||
HOLDER,TACHOMETR,3.2T | 11 | 13091-1009 | 1 | ||
GEAR,TACHOMETER,10T | 12 | 13223-011 | 1 | ||
OIL SEAL | 13 | 92050-075 | 1 | ||
RING-O,10MM | 14 | 92055-1149 | 1 | ||
GASKET,TACHOMETER GER | 15 | 92065-103 | 1 | ||
GUIDE,TACHOMETER GEAR | 16 | 92087-010 | 1 |
