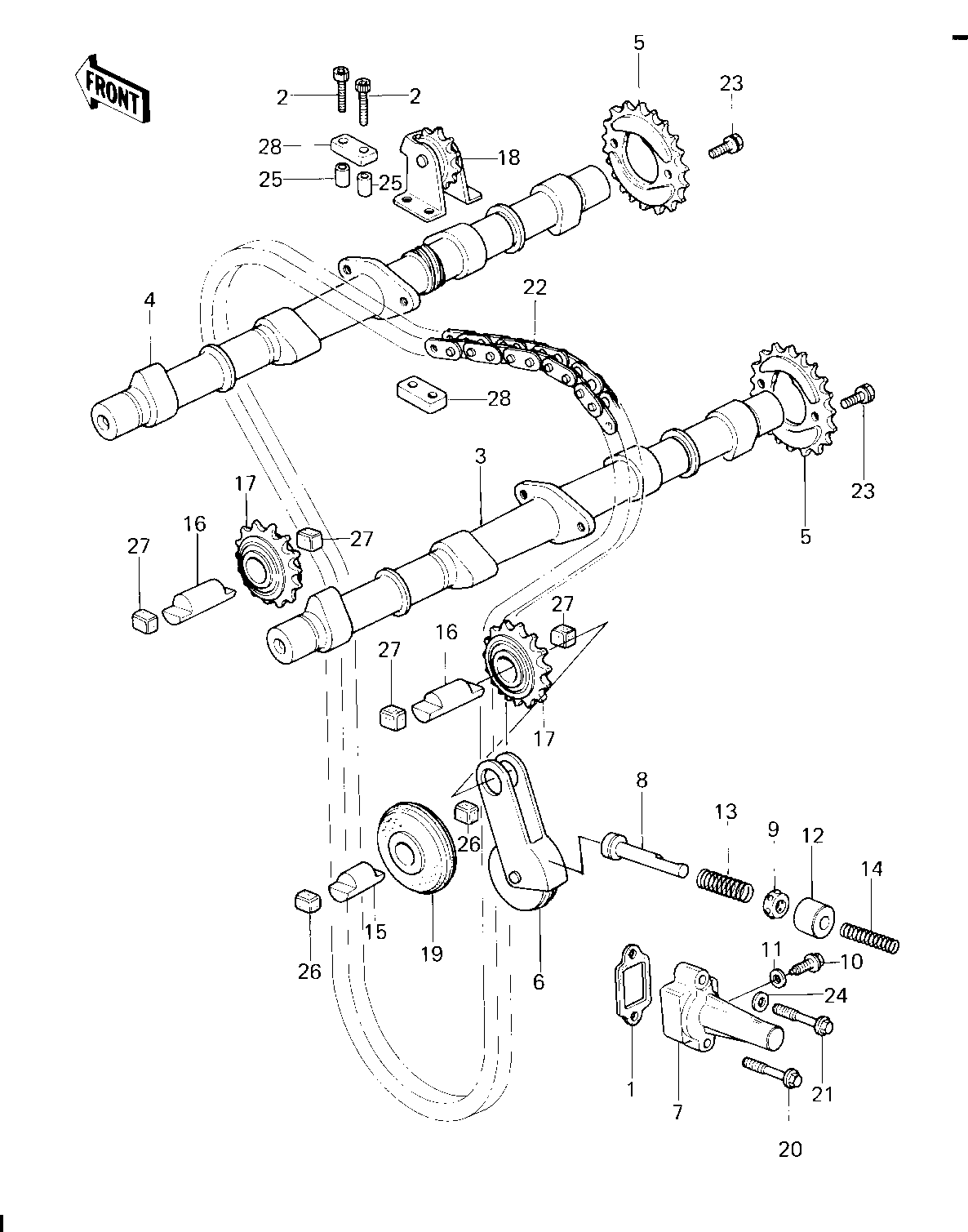

1980 KZ650-F1 - CAMSHAFTS/CHAIN/TENSIONER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TENSIONER | 1 | 11009-1980 | 1 | ||
| BOLT, SOCKET, 6X32 | 2 | 120Q0632 | 4 | ||
| CAM SHAFT,INLET | 3 | 12044-012 | 1 | ||
| CAM SHAFT,EXHAUST | 4 | 12044-013 | 1 | ||
| SPROCKET,CAM | 5 | 12046-004 | 2 | ||
| TENSIONER,CAM CHAIN | 6 | 12048-015 | 1 | ||
| TENSIONER KIT | 7 | 99996-1021 | 1 | ||
| ROD ASSY,PUSH | 8 | 13116-1008 | 1 | ||
| RETAINER | 9 | 14020-1002 | 1 | ||
| BELT,TENSIONER ADJUST | 10 | 92001-1155 | 1 | ||
| WASHER OIL PUMP BANJO | 11 | 92022-077 | 1 | ||
| COLLAR, TENSIONER | 12 | 92027-1102 | 1 | ||
| SPRING,TENSIONER | 13 | 92081-1068 | 1 | ||
| SPRING | 14 | 92081-146 | 1 | ||
| SHAFT,CAM CHAIN GUIDE | 15 | 12052-003 | 1 | ||
| SHAFT,GUIDE ROLLER | 16 | 12052-005 | 2 | ||
| IDLER ASSY,CAM CHAIN | 17 | 12053-1012 | 2 | ||
| IDLER ASSY,CAM CHAIN | 18 | 12053-1013 | 1 | ||
| ROLLER,CAM CHN GUIDE | 19 | 12055-004 | 1 | ||
| BOLT,FLANGED,6X30 | 20 | 130G0630 | 1 | ||
| BOLT,FLANGED,6X35 | 21 | 130H0635 | 1 | ||
| CHAIN,CAM | 22 | 21070-012 | 1 | ||
| BOLT,SPROCKET FITTING | 23 | 92003-208 | 4 | ||
| WASHER OIL PUMP BANJO | 24 | 92022-077 | 1 | ||
| COLLAR,8X15 | 25 | 92027-1079 | 4 | ||
| DAMPER RUBBER | 26 | 92075-123 | 2 | ||
| RUBBER,GUIDE ROLLAR | 27 | 92075-232 | 4 | ||
| DAMPER RUBBER | 28 | 92075-289 | 4 |
