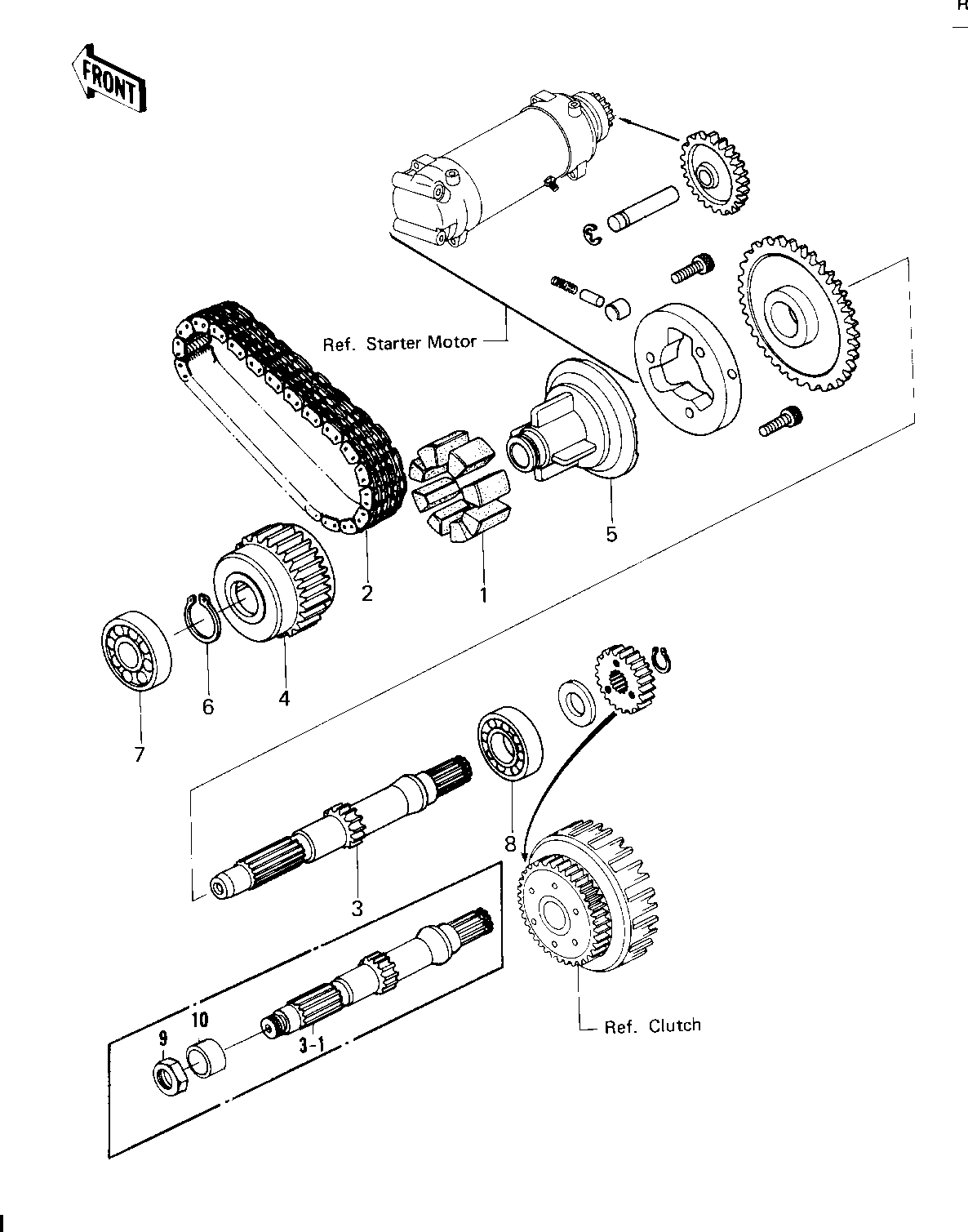

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DAMPER RUBBER 1 13098-029 8
CHAIN,PRIMARY 52L 2 13122-007 1
SHAFT,SECONDARY 3 13127-054 1 E/NO. 014501~118270
SHAFT,SECONDARY 3-1 13127-1019 1 E/NO. 118271~123772
COUPLING,OUTER 4 13252-001 1
COUPLING,INNER 5 13253-001 1
CIRCLIP 28MM 6 480J2800 1
BEARING BALL #6304 7 601B6304 1 E/NO. 014501~118270
BEARING BALL #6205 7 601B6205 1 E/NO. 118271~123772
BEARING BALL #6305 8 601B6305 1
NUT 18MM 9 92015-019 1 E/NO. 118271~123772
BUSHING,SECONDARY 10 92028-1037 1 E/NO. 118271~123772
