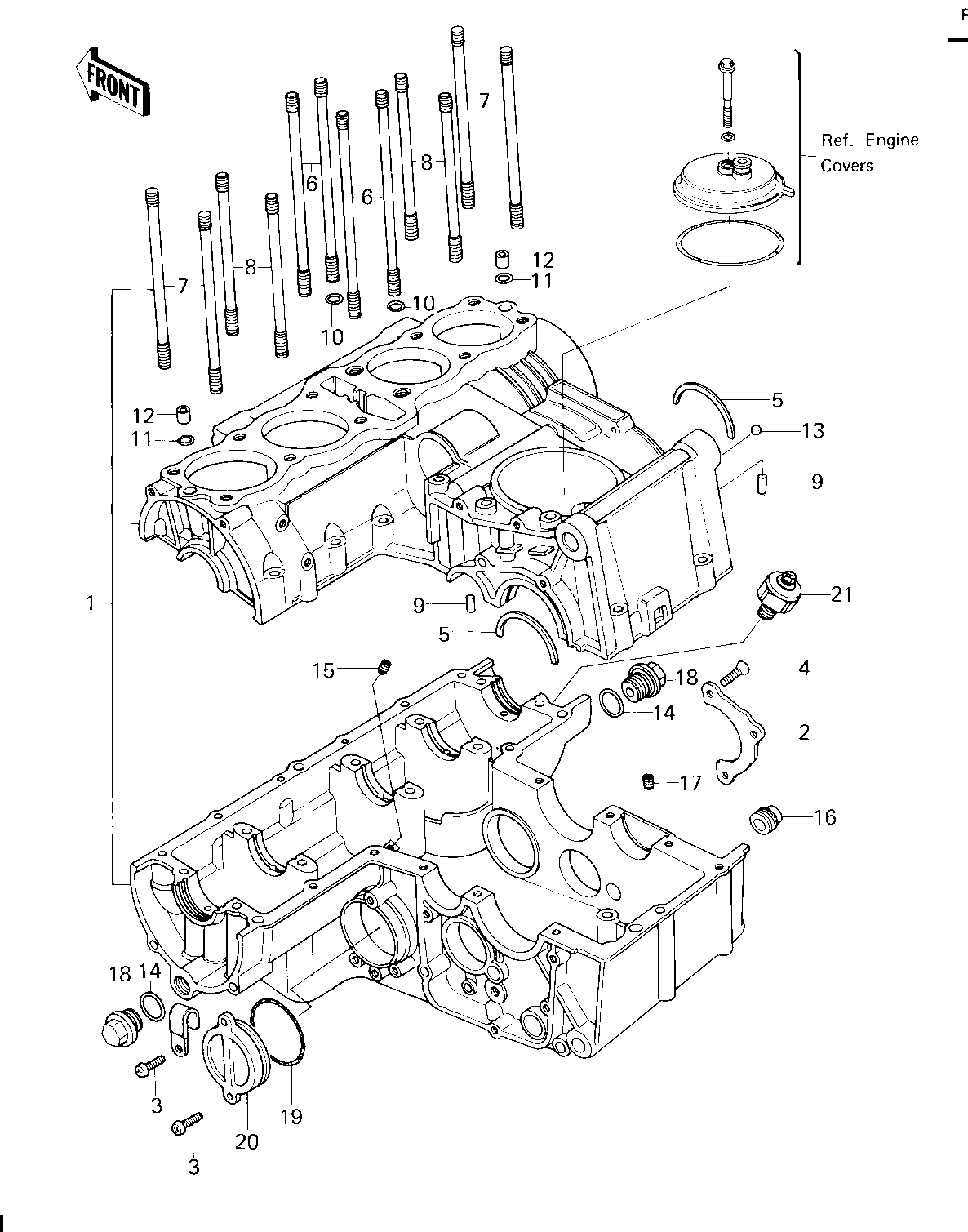

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CRANKCASE SET | 1 | 14001-5046 | 1 | ||
PLATE,POSITIONING | 2 | 14014-1007 | 1 | ||
SCREW PAN HEAD 6X20 | 3 | 220B0620 | 2 | ||
SCREW CNTSNK HD 6X20 | 4 | 221B0620 | 1 | ||
RING BEARING SETTING | 5 | 14013-004 | 2 | ||
STUD, 10X53 | 6 | 92004-062 | 4 | * | |
STUD, 10X133 | 7 | 92004-1004 | 4 | * | |
STUD, 10X116 | 8 | 92004-1007 | 4 | * | |
PIN, DOWEL, 6X16 | 9 | 92042-016 | 2 | * | |
O RING, 8.8MM | 10 | 92055-099 | 2 | * | |
O RING, 9.8MM, CYLINDER BASE | 11 | 670D2010 | 2 | ||
NOZZLE | 12 | 92062-016 | 2 | ||
PLUG, RUBBER | 13 | 92066-057 | 1 | * | |
O RING, MAIN GALLERY | 14 | 92055-097 | 2 | * | |
NOZZLE, BLACK | 15 | 92062-011 | 1 | * | |
NOZZLE | 16 | 92062-014 | 1 | * | |
NOZZLE,SILVER | 17 | 92062-015 | 1 | * | |
PLUG, MAIN GALLERY | 18 | 92066-066 | 2 | * | |
"0" RING,46MM | 19 | 670B3046 | 1 | ||
PLUG,SECONDARY SHAFT | 20 | 92066-1019 | 1 | ||
SWITCH ASY,OIL PRSSUR | 21 | 16144-006 | 1 |
CRANKCASE SET | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,POSITIONING | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X20 | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW CNTSNK HD 6X20 | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING BEARING SETTING | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STUD, 10X53 | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | * |
STUD, 10X133 | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | * |
STUD, 10X116 | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | * |
PIN, DOWEL, 6X16 | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | * |
O RING, 8.8MM | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | * |
O RING, 9.8MM, CYLINDER BASE | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NOZZLE | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG, RUBBER | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | * |
O RING, MAIN GALLERY | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | * |
NOZZLE, BLACK | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | * |
NOZZLE | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | * |
NOZZLE,SILVER | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | * |
PLUG, MAIN GALLERY | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | * |
"0" RING,46MM | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,SECONDARY SHAFT | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH ASY,OIL PRSSUR | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
