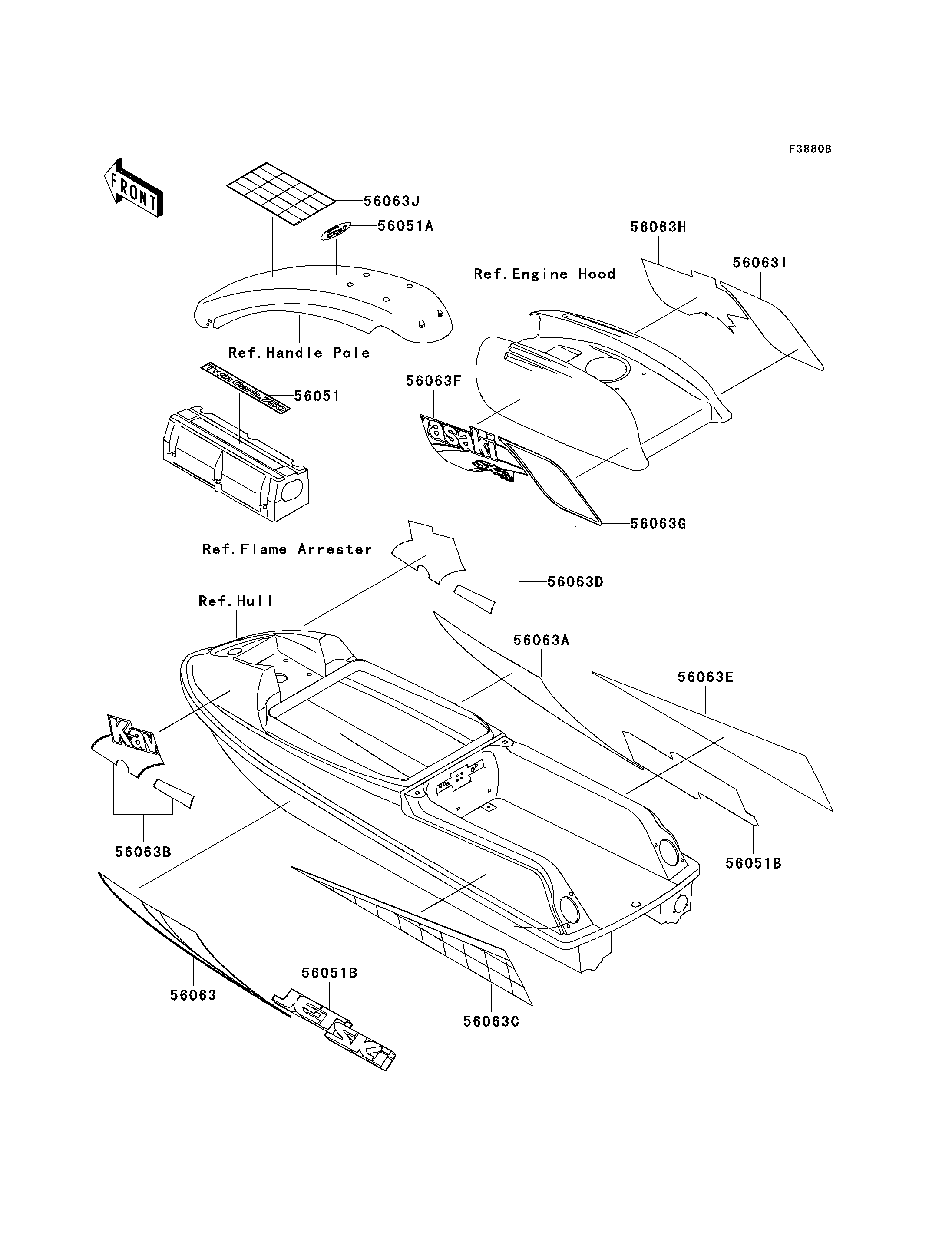

Parts Diagrams |
56051
56051A
56051B
56051B
56063
56063A
56063B
56063C
56063D
56063E
56063F
56063G
56063H
56063I
56063J
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,TWIN CARB.750 | 56051 | 56051-3742 | 1 | ||
| MARK,HANDLE COVER,JET SKI | 56051A | 56051-3751 | 1 | ||
| MARK,HULL,JET SKI | 56051B | 56051-3786 | 2 | ||
| PATTERN,HULL,LH | 56063 | 56063-3738 | 1 | ||
| PATTERN,HULL,RH | 56063A | 56063-3739 | 1 | ||
| PATTERN,DECK,FR,LH | 56063B | 56063-3740 | 1 | ||
| PATTERN,DECK,RR,LH | 56063C | 56063-3741 | 1 | ||
| PATTERN,DECK,FR,RH | 56063D | 56063-3742 | 1 | ||
| PATTERN,DECK,RR,RH | 56063E | 56063-3743 | 1 | ||
| PATTERN,ENGINE HOOD,FR,LH | 56063F | 56063-3744 | 1 | ||
| PATTERN,ENGINE HOOD,RR,LH | 56063G | 56063-3745 | 1 | ||
| PATTERN,ENGINE HOOD,FR,RH | 56063H | 56063-3746 | 1 | ||
| PATTERN,ENGINE HOOD,RR,RH | 56063I | 56063-3747 | 1 | ||
| PATTERN,HANDLE POLE | 56063J | 56063-3748 | 1 |
| MARK,TWIN CARB.750 | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,HANDLE COVER,JET SKI | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,HULL,JET SKI | |
| REF # | 56051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,LH | |
| REF # | 56063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,RH | |
| REF # | 56063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,LH | |
| REF # | 56063B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,LH | |
| REF # | 56063C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,RH | |
| REF # | 56063D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,RH | |
| REF # | 56063E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,FR,LH | |
| REF # | 56063F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,RR,LH | |
| REF # | 56063G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,FR,RH | |
| REF # | 56063H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,RR,RH | |
| REF # | 56063I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HANDLE POLE | |
| REF # | 56063J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
